Team Details
TU Brno Racing
| University | Brno University of Technology
CZ Brno TU short 692 |
 |
|---|---|---|
| Location | Brno, Czech Republic | |
| Homepage | https://tubrnoracing.cz/ | |
| Social Media | ||
| EV Team | TU Brno Racing | |
| Short Link | tid.fsg.one/358 | |
Team Description
Team TU Brno Racing was founded in 2010 at Faculty of Mechanical Engineering, Brno University of Technology. Our first competition was FSUK in 2011 with the monopost called Dragon 1.
The "Dragon" name come from "Brno Dragon" statue located in Brno townhall.
Over the years we established ourselves as a competitive team always seeking for the top places.
Dragon 6 was awarded by Opel Design Award at FSG. Dragon 7 became first overal winner at FSCZ and scored 5. in world ranking. Dragon 8 was awarded as the Most innovative FS vehicle by hungarinan Ministry of Innovation and Technology.
And there is for sure more to come as the team is motivated more than ever to build the fastest car ever :)
#74 #SpittingDragon
Past Events

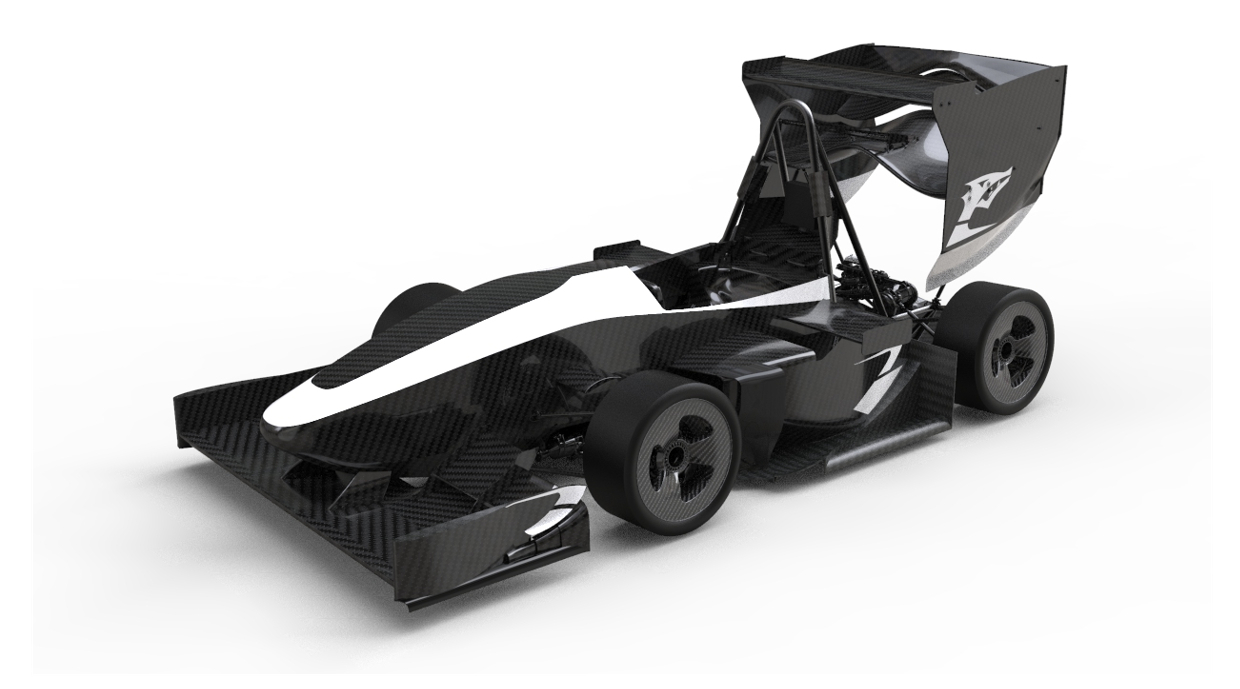

2019
Info
44x
The history of TU Brno Racing starts at 2010. With the nearly 40 team members, we aren’t the biggest team, but what we lose in numbers we gain back in enthusiasm and strong heart. We have built nine race cars named Dragon since 2010. The newest one, Dragon 9, with new suspension concept, optimized aero package, CFRP monocoque in front and one cylinder turbocharged dragon heart at the back is demonstrably the fastest one. You are invited to see this beast in his pit anytime. Spitting Dragon!
Engineering Design Priorities:
Functional Safety
weight/performance coef.
COG heifht
MOI decrease
Car Specifications
General
| Frame Construction | Front - carbon fiber & honeycomb monocque; rear - steel tube space frame |
|---|---|
| Overall L | 2929 mm |
| Overall W | 1426 mm |
| Overall H | 1172 mm |
| Wheelbase | 1528 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1170 mm |
| Weight with 68kg driver (Fr) | 120 kg |
| Weight with 68kg driver (Rr) | 129 kg |
| Suspension | Double unequal length CFRP A-Arm, pull-rod/push-rod, roll/heave systém |
| Tyres (Fr / Rr) | 205x45 R13, Continental C19 |
| Wheels (Fr / Rr) | 7x13, ET30mm |
| Drive Type | 3 gear transmission, Chain |
| Differential | Drexler formula student limited slip |
| Cooling | Side-mounted water and oil cooling custom radiators, electric fan |
| Brake System | 4-Disk system, self developed rotors with 210mm diameter, adjustable brake balance, ISR |
| Electronics | Traction control, Launch control, Auto upshift, Calibration switches, LifeRacing F88 ECU |
Powertrain
| Engine | Husqvarna FE 501 - Turbocharged |
|---|---|
| Bore | 95 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 9,5:1 : 1 |
| Fuel System | port fuel injection - Bosch injectors (EV12 353 g/min 2-Spray and EV14 765 g/min |
| Fuel | E85 |
| Max Power Design | 10500 rpm |
| Max Torque Design | 8500 rpm |

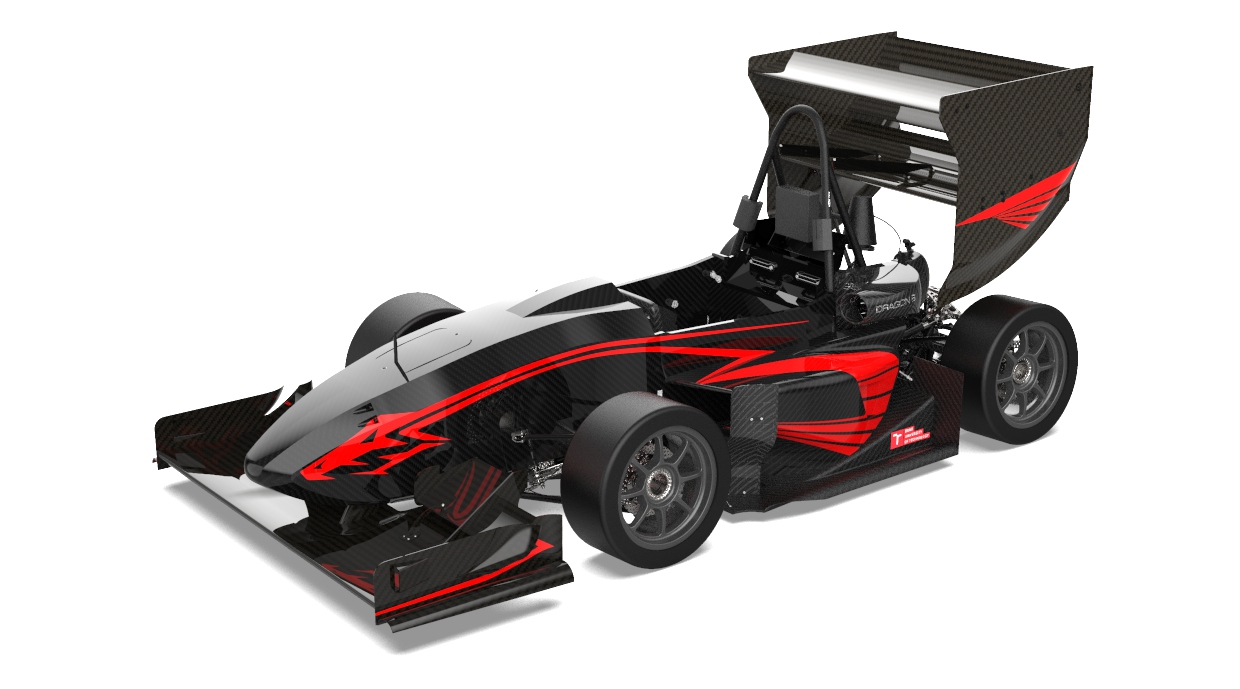

2018
Info
40x
TU Brno Racing from Brno University of Technology has already made a mark on Formula Student global competition. Wehave now built eight consecutive race cars named Dragon in the past eight years and we can prove thatevery new formula we develop is better than the previous one. The 2017 brought us our best results so far. This year we aim even higher. Follow us to check the coolest car out there. This year it's called Dragon 8. The fastest Dragon around the FSG circuit yet. Spitting Dragon!
Engineering Design Priorities:
tubrnoracing
spittingdragon
dragonnest
Car Specifications
General
| Frame Construction | Carbon fiber monocoque with aluminium honeycomb core with rear steel subframe |
|---|---|
| Overall L | 2928 mm |
| Overall W | 1481 mm |
| Overall H | 1162 mm |
| Wheelbase | 1528 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1170 mm |
| Weight with 68kg driver (Fr) | 124 kg |
| Weight with 68kg driver (Rr) | 125 kg |
| Suspension | Double unequal length Al/CFRP A-Arm, longitudinally oriented heave spring |
| Tyres (Fr / Rr) | Continental C18, 205/470 R13 |
| Wheels (Fr / Rr) | 7,0x13, 30 mm ET, Magnesium |
| Drive Type | 3 gear transmission, Chain |
| Differential | Drexler formula student limited slip |
| Cooling | Side-mounted water and oil cooling custom radiators, electric fan |
| Brake System | 4-Disk system, self developed rotors with 210mm diameter, adjustable brake balance, ISR |
| Electronics | Traction control, Launch control, Auto upshift, Calibration switches, Life-Racing F88 ECU |
Powertrain
| Engine | Husqvarna FE 501, Turbocharged |
|---|---|
| Bore | 95 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 9,5:1 : 1 |
| Fuel System | port fuel injection - Bosch injectors (EV12 353 g/min 2-Spray and EV14 765 g/min |
| Fuel | E85 |
| Max Power Design | 10500 rpm |
| Max Torque Design | 7500 rpm |

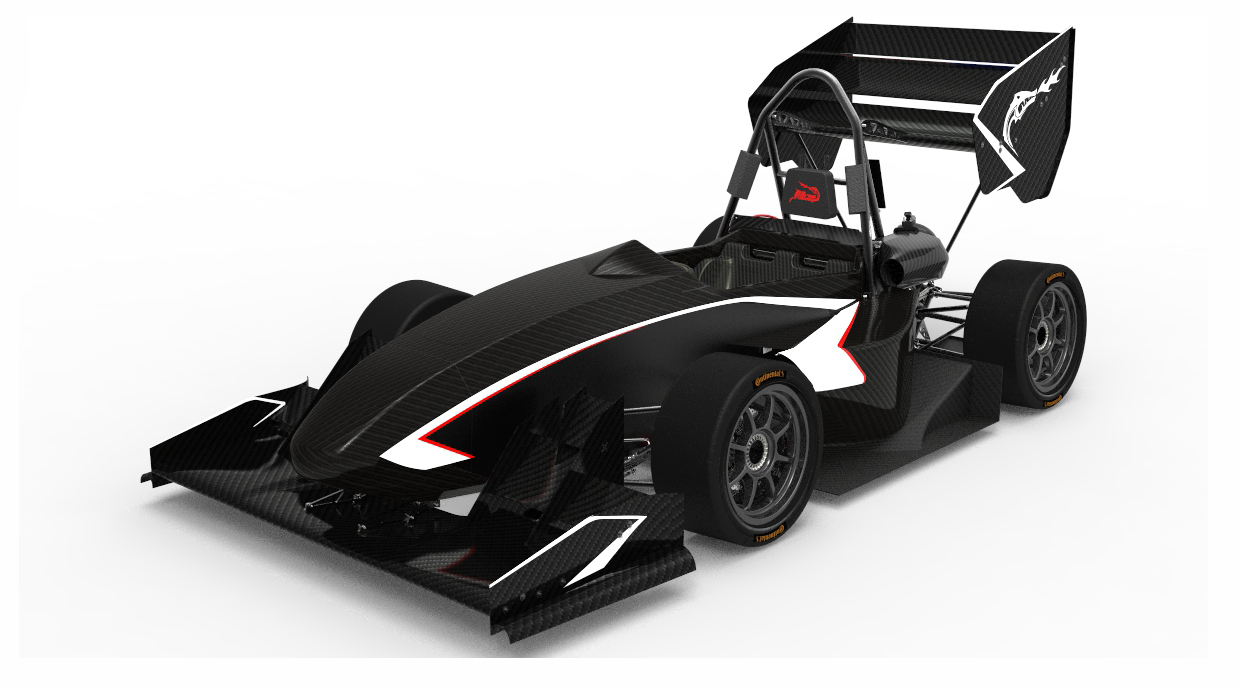

2017
Info
43x
„One team, one cylinder, one heart.“ This is a definition of TU Brno Racing. We have built seven single seaters for the Formula Student competition in the past seven years. Our team philosophy is a development of a lightweight car equipped with an aerodynamic package and a turbocharged single cylinder engine. This year we managed to build our first carbon fibre monocoque. A higher value of torsional stiffness was achieved thus the weight of the car remains at 180 kg.
Engineering Design Priorities:
Turbocharged
CzechRepublic
SpittingDragon
Dragon7
VUT
Downforce
Car Specifications
General
| Frame Construction | Composite monocoque with steel tube rear frame |
|---|---|
| Material | CFRP with aramid/aluminum Honeycomb; E355+N - tubes; EN AW 6082 - square tubes |
| Overall L | 2912 mm |
| Overall W | 1522 mm |
| Overall H | 1170 mm |
| Wheelbase | 1532 mm |
| Track (Fr) | 1210 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 128 kg |
| Weight with 68kg driver (Rr) | 123 kg |
| Suspension | Double unequal length Al/CFRP A-Arm, pull rod actuated, longitudinally oriented damper |
| Tyres (Fr / Rr) | 205/470 R13, Continental C17 / 205/470 R13, Continental C17 |
| Wheels (Fr / Rr) | 7,0x13, 30 mm ET, OZ racing, Magnesium / 7,0x13, 30 mm ET, OZ racing, Magnesium |
| Drive Type | Chain size 520 DID ERT-2 |
| Differential | Drexler formula student limited slip |
| Cooling | Right sidepod mount. 420x217mm core U-flow radiator, 596 cfm fan mount.to backg. |
| Brake System | 4-Disk system, self developed rotors with 210mm diameter, brake balance, ISR Calipers |
| Electronics | Raychem Spec 44 wires, shrink tubing, Deutsch motorsport conectors, LifeRacing F88 ECU |
Powertrain
| Engine | Husqvarna FE 501 / Turbocharged |
|---|---|
| Bore | 95mm mm |
| Stroke | 72mm mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 9.5:1 : 1 |
| Fuel System | Port fuel injection using Bosch injectors (EV12 353 g/min 2-Spray and EV14 765) |
| Fuel | ethanol |
| Max Power Design | 10500 rpm |
| Max Torque Design | 7500 rpm |

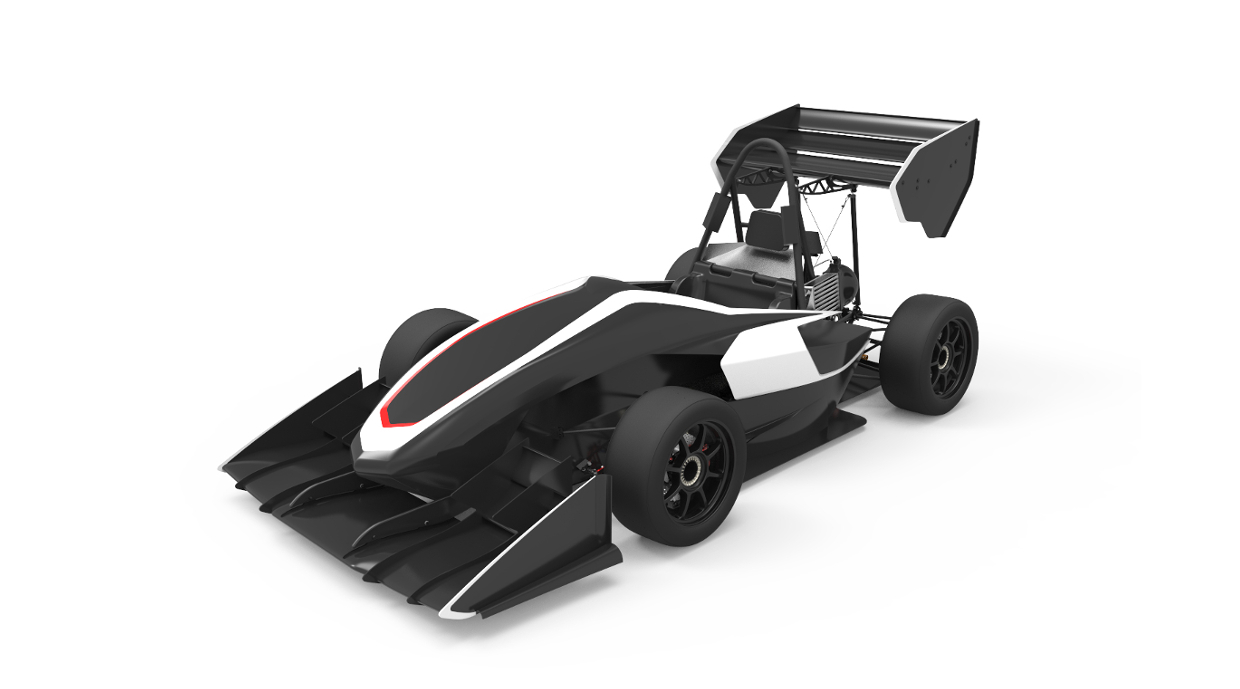

2016
Info
36x
In 2016 TU Brno Racing enters its sixth season. Team moto "one heart one cylinder one team" explains team philosophy. This year team focused on details. Nearly 50 students developed and built formula which has power to weight ratio 0,465 PS/kg and is 25kg lighter then previous model. Car was designed from the scratch and built in 7 months - was released on 15th April 2016! Custom turbocharger made by rapid prototyping, new gearbox, tire switch, overall mass 175kg are the highlights of Dragon 6.
Engineering Design Priorities:
SpittingDragon
RennTeamBrünn
Dragon6
CzechRepublic
VUT
turbocharged
Car Specifications
General
| Frame Construction | Steel spaceframe with CFRP bodywork |
|---|---|
| Material | steel tubes |
| Overall L | 2904 mm |
| Overall W | 1420 mm |
| Overall H | 1117 mm |
| Wheelbase | 1527 mm |
| Track (Fr) | 1210 mm |
| Track (Rr) | 1180 mm |
| Weight with 68kg driver (Fr) | 119 kg |
| Weight with 68kg driver (Rr) | 124 kg |
| Suspension | Double A-Arm, pull rod actuated longitudinally oriented spring and adjustable damper |
| Tyres (Fr / Rr) | 205/470 R13 C16 Continental |
| Wheels (Fr / Rr) | 205/470 R13 C16 Continental |
| Drive Type | chain DID MX 520, sprocket and pinion |
| Differential | Torque sensitive limited slip |
| Cooling | Right sidepod mounted 420x217mm core U-flow radiator , 590 cfm fan mounted to fan ducting |
| Brake System | 4-Disk system, self developed rotors, adjustable brake balancer |
| Electronics | Wi-Fi ECU telemetry, LifeRacing F88 ECU and Exp box X10; 50 in, 38 out |
Powertrain
| Engine | Turbocharged Husqvarna FE 501 |
|---|---|
| Bore | 95 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 9.5:1 : 1 |
| Fuel System | CFRP fuel tank, port fuel injection using Bosch injectors (EV12 353g/min 2-Spray and EV14 765g/min) |
| Fuel | E85 |
| Max Power Design | 10000 rpm |
| Max Torque Design | 7000 rpm |

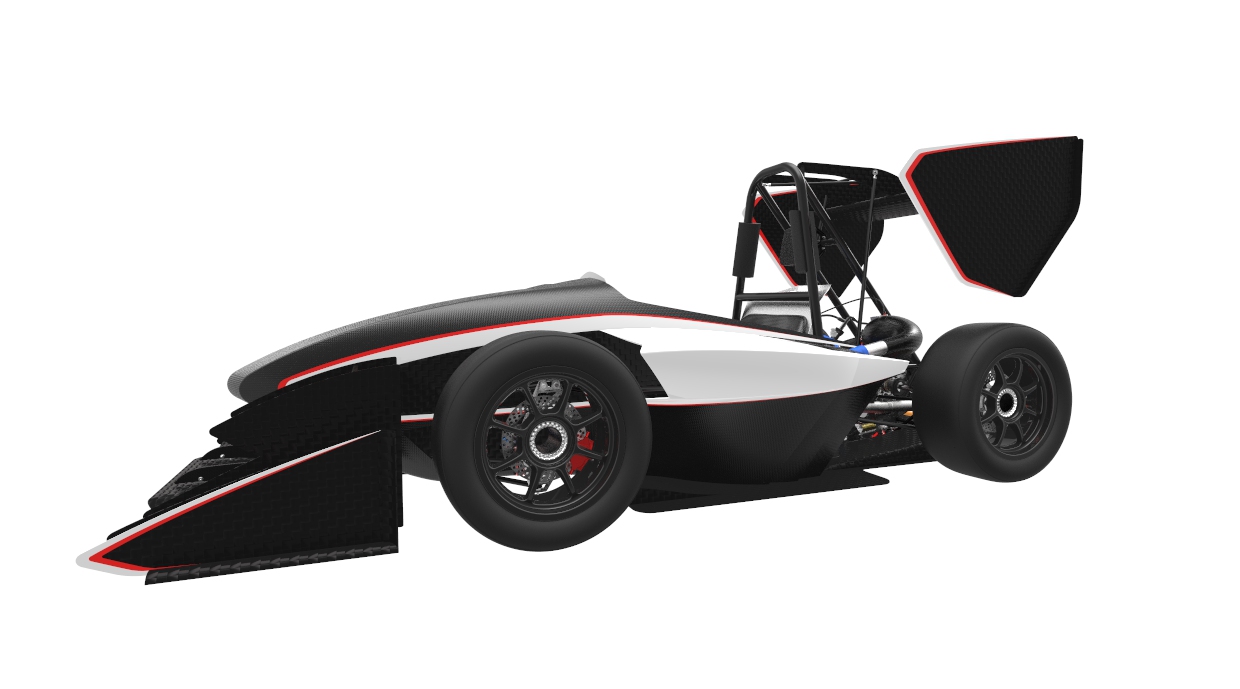

2015
Info
37x
In 2015 TU Brno Racing enters its fifth season. For the car it is a season of huge changes. Up until now, we were doing an evolution of our car. Now, we are doing a revolution! Production of our former engine was stopped, therefore we made a switch to Husquarna FE501. That is a lovely engine, although it is missing something. Power! Therefore we went for turbocharging. The development of this engine is finished for now and we are ready to race!
Engineering Design Priorities:
#spittingdragon
Car Specifications
General
| Frame Construction | tubular steel spaceframe |
|---|---|
| Material | steel |
| Overall L | 2953 mm |
| Overall W | 1459 mm |
| Overall H | 1189 mm |
| Wheelbase | 1527 mm |
| Track (Fr) | 1260 mm |
| Track (Rr) | 1190 mm |
| Weight with 68kg driver (Fr) | 121 kg |
| Weight with 68kg driver (Rr) | 140 kg |
| Suspension | Double unequal length A-Arm, pull rod actuated |
| Tyres (Fr / Rr) | Continental |
| Wheels (Fr / Rr) | Continental |
| Drive Type | chain size 520MX (DID) |
| Differential | Drexler |
| Cooling | Sidepod mounted heat exchanger, intercooler |
| Brake System | 4 disc system, ISR brakes |
| Electronics | Life Racing ECU, Racetech datalogger, telemetry |
Powertrain
| Engine | Husquarna FE501 |
|---|---|
| Bore | 95 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 9.5 : 1 |
| Fuel System | port fuel injection |
| Fuel | E85 |
| Max Power Design | 10000 rpm |
| Max Torque Design | 7000 rpm |

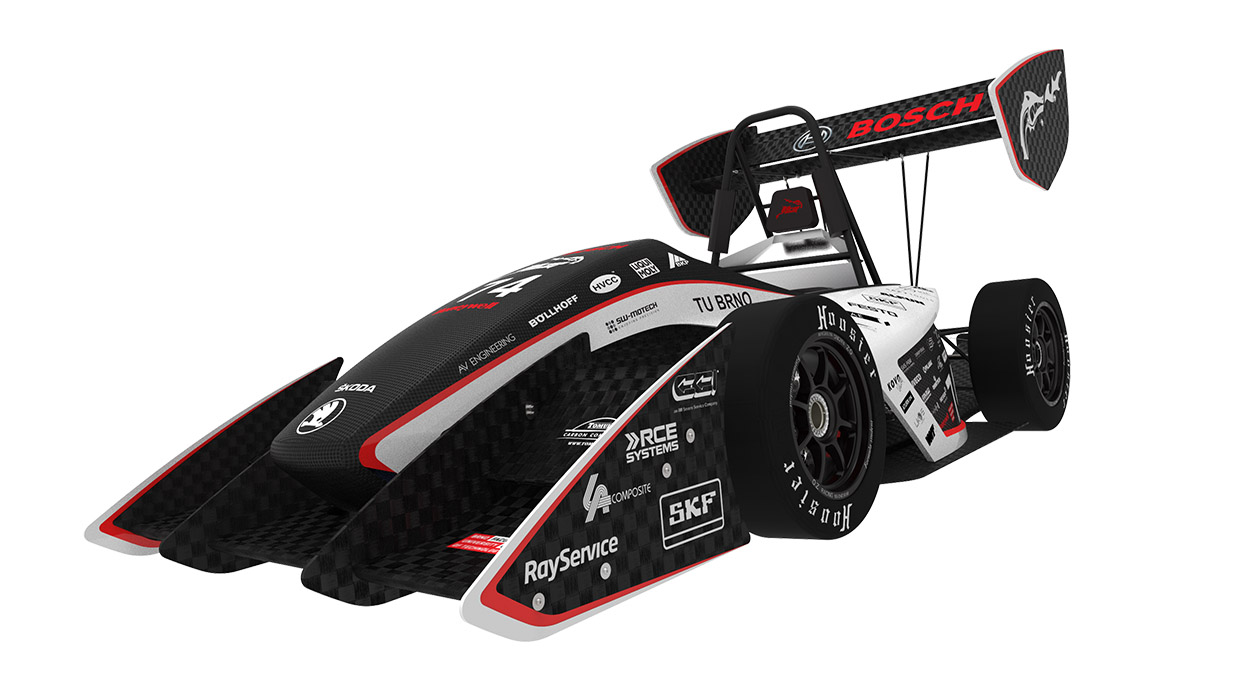

2014
Info
37x
The TU Brno Racing team from Brno University of Technology in the Czech republic returns to Hockenheim for second consecutive year. This time around, they will compete with the fourth evolution of their car – Dragon 4. After last year's disappointing fuel system hose failure, the goal is clear: See the checkered flag!This year they opted to explore new field of study – aerodynamics, so they are running whole aerodynamic package.
Engineering Design Priorities:
tubrnoracing
dragon
Car Specifications
General
| Frame Construction | Mild steel tubular space frame |
|---|---|
| Material | 1.0553 steel tound tubing 20mm to 30 mm; 1.0045 steel square tubing 25mm |
| Overall L | 3144 mm |
| Overall W | 1394 mm |
| Overall H | 1260 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1260 mm |
| Track (Rr) | 1190 mm |
| Weight with 68kg driver (Fr) | 131 kg |
| Weight with 68kg driver (Rr) | 131 kg |
| Suspension | Double unequal length A-Arm. Pull and push rod actuated horizontally oriented spring and damper. |
| Tyres (Fr / Rr) | 20.5 x 7.5-13 Hoosier R25B / 20.5 x 7.5-13 Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x13, 30mm offset, Al Rim / 7.0x13, 30mm offset, Al Rim |
| Drive Type | 428 Chain |
| Differential | Drexler limited slip differential |
| Cooling | Right side pod mounted radiator with thermostatic controlled electric fan |
| Brake System | 4-Disk system, with floating rotors, adjustable brake balance, 4-piston calipers Fr, 2-piston Rr |
| Electronics | self-designed shifting management, self-designed telemetry system. Wiring harness sealed to IP67 |
Powertrain
| Engine | Husaberg FE 570 (2011) |
|---|---|
| Bore | 100 mm |
| Stroke | 74 mm |
| Cylinders | 1 |
| Displacement | 565 ccm |
| Compression Ratio | 12.2:1 : 1 |
| Fuel System | Student designed/built ,electronic fuel injection by single injector |
| Fuel | 98 Octane unleaded gasoline |
| Max Power Design | 7800 rpm |
| Max Torque Design | 7400 rpm |

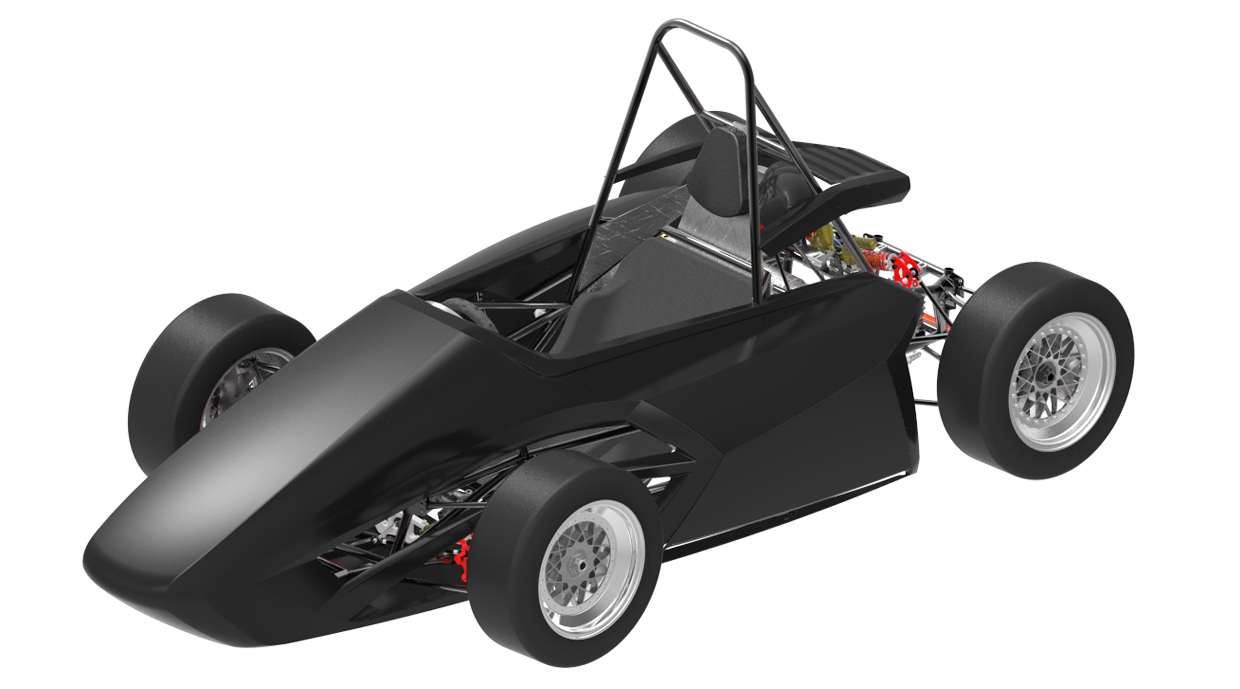

2013
Info
27x
The Formula Student team from Brno University of Technology - TU Brno Racing - was established in autumn 2010. The first competition, which we took part in, was Formula Student UK in 2011. The whole team is excited to start at the Formula Student Germany 2013 event, we are attending FSG for the first time. Except the FSG, TU Brno Racing will start also at FSCZ and FSH this season. The main goal for this season is to successfully finish all the competitions and to improve last years results. We got many experience from testing the previous car which we tried to involve in design of the new car. We aimed on the suspension components to improve reliability of the car and tubular space frame to increase torsional stiffness. A lot of effort was put to single cylinder engine Husaberg FE 570 to improve engine characteristics.
Car Specifications
General
| Frame Construction | Front and rear tubular space frame |
|---|---|
| Material | 1.0553 steel tound tubing 20mm to 25 mm; 1.0045 steel square tubing 25mm |
| Overall L | 2810 mm |
| Overall W | 1447 mm |
| Overall H | 1164 mm |
| Wheelbase | 1600 mm |
| Track (Fr) | 1260 mm |
| Track (Rr) | 1190 mm |
| Weight with 68kg driver (Fr) | 136 kg |
| Weight with 68kg driver (Rr) | 136 kg |
| Suspension | double unequal length A-Arms, pullrod design in front, pushrod in rear |
| Tyres (Fr / Rr) | 20.5 x 7.0-13 Hoosier R25B / 20.5 x 7.0-13 Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x13, 15mm offset, 3 pc Al Rim / 7.0x13, 8mm offset, 3 pc Al Rim |
| Drive Type | 5/8" x 1/4" chain |
| Differential | clutch pack limited slip, 50 Nm preload |
| Cooling | Right side pod mounted radiator with thermostatic controlled electric fan |
| Brake System | 4-Disk system, with floating rotors, adjustable brake balance, 4-piston calipers Fr, 2-piston Rr |
| Electronics | self-designed shifting management, self-designed telemetry system. Wiring harness sealed to IP67, |
Powertrain
| Engine | 2012 Husaberg FE 570 |
|---|---|
| Bore | 100 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 566 ccm |
| Compression Ratio | 12.2:1 : 1 |
| Fuel System | Student designed/built ,electronic fuel injection by single injector |
| Fuel | 98 octane gasoline |
| Max Power Design | 8800 rpm |
| Max Torque Design | 7500 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2021.08 | 23 |
7. |
5. |
6. |
5. |
14. |
- |
12. |
- |
12. |
7. |
3. |
0.00 |
602.33 |
|
| 2021.08 | 19 |
2. |
6. |
2. |
1. |
8. |
- |
8. |
- |
4. |
4. |
1. |
0.00 |
790.83 |
|
| 2021.07 | 26 |
3. |
6. |
7. |
3. |
5. |
- |
10. |
- |
7. |
5. |
5. |
0.00 |
751.70 |
|
| 2019.08 | 33 |
3. |
4. |
2. |
1. |
8. |
- |
4. |
- |
2. |
8. |
2. |
0.00 |
844.49 |
|
| 2019.08 | 60 |
9. |
39. |
14. |
5. |
- |
- |
15. |
- |
17. |
6. |
9. |
-40.00 |
657.78 |
|
| 2019.07 | 25 |
4. |
21. |
11. |
5. |
12. |
- |
4. |
- |
13. |
3. |
5. |
0.00 |
743.42 |
|
| 2019.07 | 28 |
3. |
8. |
4. |
4. |
4. |
- |
12. |
- |
7. |
2. |
2. |
0.00 |
840.93 |
|
| 2018.08 | 57 |
11. |
50. |
18. |
21. |
18. |
- |
7. |
- |
9. |
10. |
13. |
0.00 |
691.24 |
|
| 2018.07 | 28 |
4. |
23. |
12. |
25. |
4. |
- |
16. |
- |
8. |
3. |
6. |
0.00 |
722.25 |
|
| 2018.07 | 46 |
8. |
19. |
45. |
6. |
8. |
- |
12. |
- |
4. |
2. |
5. |
-150.00 |
649.24 |
|
| 2017.08 | 64 |
6. |
17. |
31. |
28. |
5. |
- |
22. |
- |
11. |
8. |
8. |
0.00 |
707.62 |
|
| 2017.08 | 33 |
1. |
4. |
15. |
3. |
1. |
- |
2. |
- |
2. |
1. |
2. |
0.00 |
938.45 |
|
| 2017.07 | 38 |
8. |
24. |
25. |
7. |
11. |
- |
8. |
- |
17. |
5. |
4. |
0.00 |
689.40 |
|
| 2016.08 | 73 |
36. |
51. |
39. |
12. |
13. |
- |
19. |
- |
46. |
- |
- |
0.00 |
329.88 |
|
| 2016.08 | 25 |
2. |
1. |
3. |
1. |
2. |
- |
6. |
- |
7. |
3. |
2. |
0.00 |
873.29 |
|
| 2016.07 | 28 |
8. |
9. |
4. |
8. |
3. |
- |
2. |
- |
5. |
14. |
5. |
0.00 |
606.50 |
|
| 2016.07 | 38 |
6. |
7. |
4. |
2. |
4. |
- |
3. |
- |
5. |
22. |
- |
0.00 |
548.02 |
|
| 2015.09 | 43 |
2. |
22. |
13. |
8. |
19. |
- |
4. |
- |
3. |
3. |
3. |
0.00 |
793.06 |
|
| 2015.09 | 22 |
14. |
4. |
12. |
1. |
4. |
- |
4. |
- |
4. |
- |
- |
0.00 |
486.95 |
|
| 2015.08 | 37 |
6. |
8. |
19. |
13. |
6. |
- |
2. |
- |
6. |
6. |
- |
0.00 |
715.91 |
|
| 2015.08 | 71 |
34. |
44. |
47. |
34. |
8. |
- |
19. |
- |
19. |
- |
- |
0.00 |
338.15 |
|
| 2014.08 | 38 |
7. |
16. |
25. |
11. |
6. |
- |
16. |
- |
11. |
5. |
14. |
0.00 |
698.85 |
|
| 2014.08 | 74 |
31. |
34. |
16. |
11. |
7. |
- |
44. |
- |
25. |
- |
22. |
0.00 |
408.81 |
|
| 2013.08 | 37 |
19. |
20. |
10. |
14. |
8. |
- |
29. |
- |
13. |
- |
- |
0.00 |
433.60 |
|
| 2013.08 | 74 |
50. |
53. |
18. |
55. |
35. |
- |
53. |
- |
47. |
- |
- |
0.00 |
276.80 |
|
| 2012.09 | 37 |
12. |
29. |
4. |
3. |
20. |
- |
29. |
- |
- |
13. |
- |
0.00 |
452.21 |
|
| 2012.08 | 39 |
25. |
23. |
19. |
31. |
23. |
- |
28. |
- |
16. |
- |
- |
0.00 |
364.33 |
|
| 2012.07 | 97 |
44. |
44. |
67. |
40. |
16. |
- |
43. |
- |
29. |
52. |
- |
-7.00 |
224.10 |
|
| 2011.07 | 77 |
60. |
53. |
59. |
52. |
- |
- |
- |
- |
- |
- |
- |
-4.00 |
157.70 |
|
| x 29 | |||||||||||||||
