Team Details
Rennschmiede Pforzheim
| University | Hochschule Pforzheim
DE Pforzheim U short 610 |
 |
|---|---|---|
| Location | Pforzheim, Germany | |
| Homepage | https://rennschmiede-pforzheim.de | |
| Social Media | ||
| EV Team | Rennschmiede Pforzheim e.V. | |
| Short Link | tid.fsg.one/241 | |
Past Events

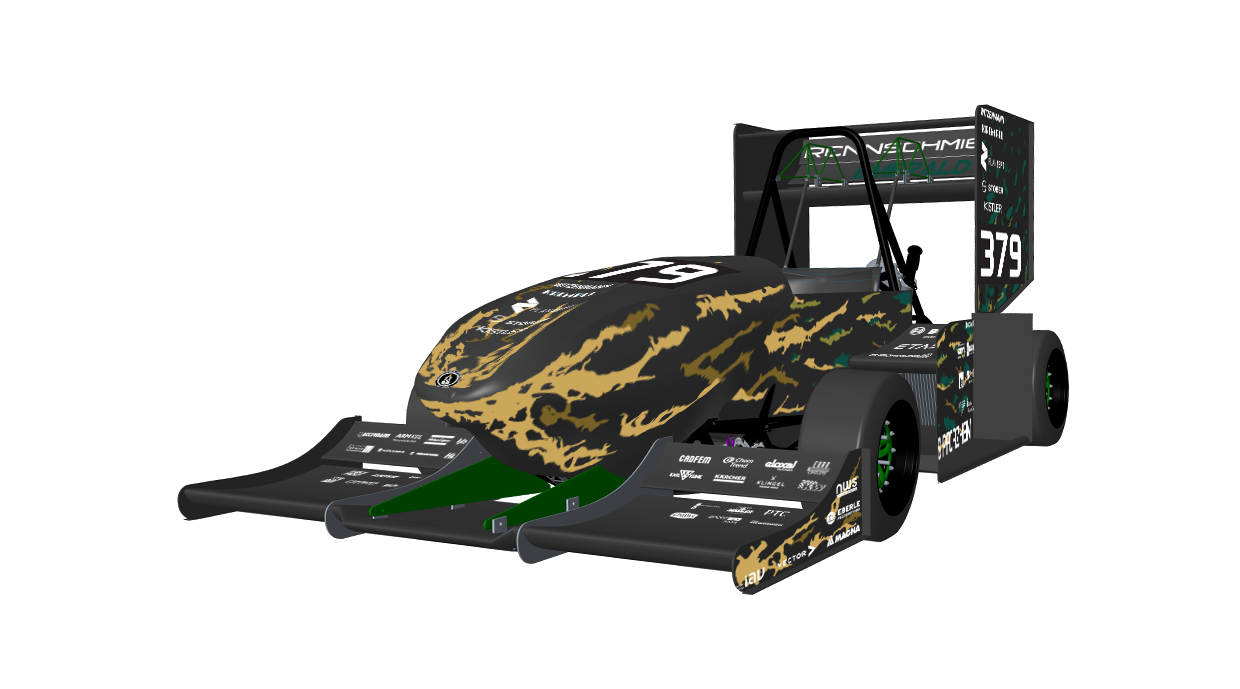

2019
Info
38x
Rennschmiede Pforzheim proudly presents "RSP19 - Emerald". The goal was to improve our last year car by redesigning our chassis to fit our whole aero-package and improve lateral acceleration. Additionally we succesfully manufactured carbon rims for the first time on our own. We did some major changes on our standard KTM SX-F 450 engine as well by installing a 510ccm big bore kit and attaching it to a selfmade carbon fuel tank. Emerald is the lightest and innovative car we have ever built!
Engineering Design Priorities:
lightweight
new chassis-design
fuel-effciency
cost-efficient
Car Specifications
General
| Frame Construction | tubular steel space frame |
|---|---|
| Material | E235+C |
| Overall L | 2915 mm |
| Overall W | 1400 mm |
| Overall H | 1212 mm |
| Wheelbase | 1535 mm |
| Track (Fr) | 1180 mm |
| Track (Rr) | 1140 mm |
| Weight with 68kg driver (Fr) | 111 kg |
| Weight with 68kg driver (Rr) | 121 kg |
| Suspension | Double A-Arm, Pullrod actuated spring/damper with rocker, adjustable Anti Roll Bar U-Type |
| Tyres (Fr / Rr) | 16.0 x 6.0-10, Hoosier R25B / 16.0 x 6.0-10, Hoosier R25B |
| Wheels (Fr / Rr) | selfmade 10" carbon wheels with aluminium-rimstar |
| Drive Type | chain drive |
| Differential | Drexler limited slip differential |
| Cooling | one radiator on each frame side with attached fans fans |
| Brake System | Selfdesgined, drilled and floating rotors with 182mm diameter , ISR brake calipers |
| Electronics | Multifunctional steering wheel, electropneumatic shifting |
Powertrain
| Engine | Modified KTM SX-F 450 with 510cc big bore kit |
|---|---|
| Bore | 95.0 mm |
| Stroke | 72.0 mm |
| Cylinders | 1 |
| Displacement | 510 ccm |
| Compression Ratio | 14.9:1 : 1 |
| Fuel System | carbon fuel tank and PFI fuel injection |
| Fuel | E85 |
| Max Power Design | 9400 rpm |
| Max Torque Design | 7500 rpm |

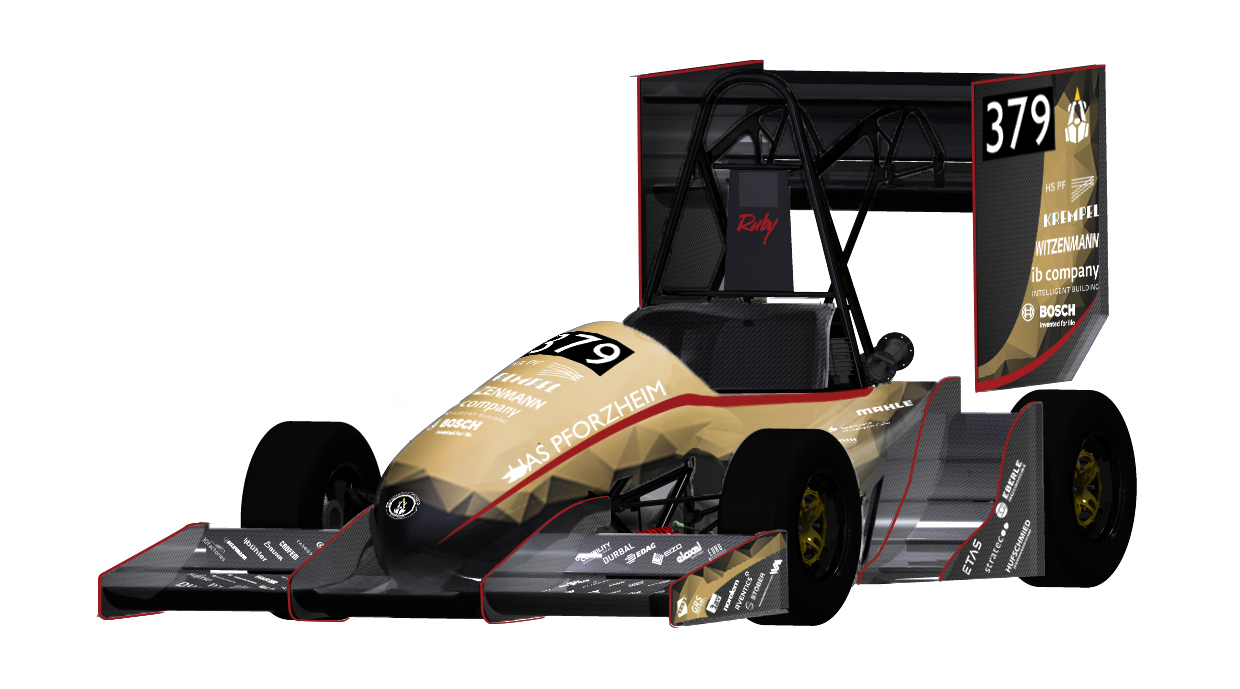

2018
Info
39x
Rennschmiede Pforzheim presents RSP18 Ruby. Our 6th race car stands for a strong ambitious team bigger than ever. With the organizational structure of a company we where able to design, manufacture and test the RSP18 faster than ever before. Our goal is to build a reliable and cost efficient car. We did some major changes on our standard motor as well as enlarging our aerodynamic device. We decreased the weight and got about 50% more downforce compared to our RSP17 Onyx.
Engineering Design Priorities:
ruby
rubyisthenewblack
jewel
rsp18
Car Specifications
General
| Frame Construction | Turbular steel space frame |
|---|---|
| Material | E355 from 25x2,5 to 20x1 |
| Overall L | 2915 mm |
| Overall W | 1400 mm |
| Overall H | 1213 mm |
| Wheelbase | 1535 mm |
| Track (Fr) | 1180 mm |
| Track (Rr) | 1140 mm |
| Weight with 68kg driver (Fr) | 115 kg |
| Weight with 68kg driver (Rr) | 119 kg |
| Suspension | Double A-Arm, Pullrod actuated spring/damper with rocker, adjustable Anti Roll Bar |
| Tyres (Fr / Rr) | 150x65 R10 (18 x 6.0 - 10)/150x65 R10 (18 x 6.0 - 10) |
| Wheels (Fr / Rr) | 6,5x10 |
| Drive Type | chain drive 520 chain |
| Differential | Drexler limited slip differential |
| Cooling | Two side pot mounted radiator , two fans each |
| Brake System | Self designed, drilled and floating rotors with 182mm Diameter, ISR Brake calibres |
| Electronics | Multifunctional Steering Wheel, Electropneumatic Shifting System. |
Powertrain
| Engine | KTM SX-F 450 |
|---|---|
| Bore | 95 mm |
| Stroke | 63,4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 13,6 : 1 |
| Fuel System | Welded aluminium fuel tank |
| Fuel | E85 |
| Max Power Design | 9400 rpm |
| Max Torque Design | 7500 rpm |

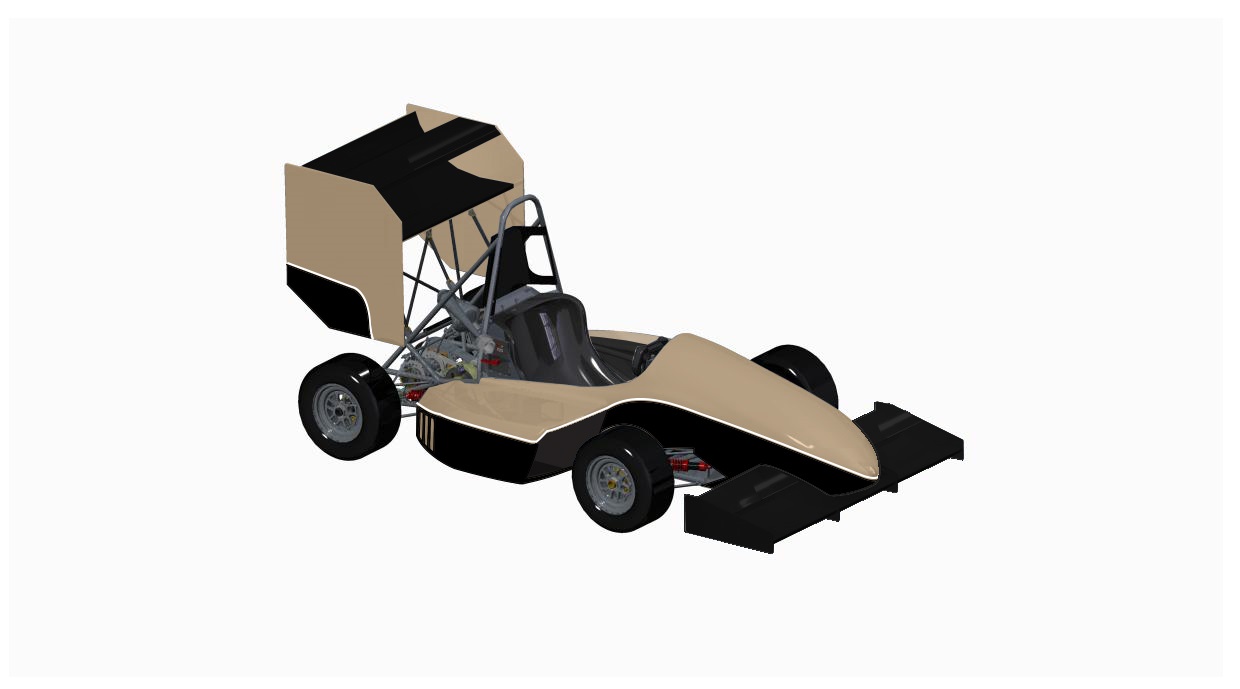

2017
Info
34x
The “Rennschmiede Pforzheim” was founded in September 2009. The “RSP17 Onyx” is our fifth car. Our main goal is to build a reliable and cost efficient car. To reach this goal, we simplified our parts to reduce the manufacturing time. We used this time mainly for testing and improvement of our suspension and engine setup. This time, we built our car over a period of two years. The "RSP17 Onyx" is also the first car of our team with aerodynamic devices.
Engineering Design Priorities:
aerodynamics
embeddedsystems
steeringwheel
intakesystem
ergonomics
carbonfibrework
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | steel E355 |
| Overall L | 2751 mm |
| Overall W | 1425 mm |
| Overall H | 1162 mm |
| Wheelbase | 1558 mm |
| Track (Fr) | 1180 mm |
| Track (Rr) | 1140 mm |
| Weight with 68kg driver (Fr) | 133 kg |
| Weight with 68kg driver (Rr) | 117 kg |
| Suspension | Double A-Arm, pull rod actuated spring/damper, adjustable anti-roll bar |
| Tyres (Fr / Rr) | 18 x 6-10, Hoosier R25B |
| Wheels (Fr / Rr) | 6.5'' width, carbon fibre rim with cnc milled inner piece |
| Drive Type | Chain drive 520 chain |
| Differential | Drexler limited slip differential |
| Cooling | side pot mounted radiator , 413 cfm fan mounted to hot air side of the radiator |
| Brake System | 4-disk system, self designed brake disks, adjustable bias bar |
| Electronics | multifunctional steering wheel, electrical shifting system, GPS assisted data logging |
Powertrain
| Engine | KTM 450 SX-F single cylinder |
|---|---|
| Bore | 95 mm |
| Stroke | 36.5 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.83:1 : 1 |
| Fuel System | Bosch MS4 ECU,fuelpump,pressure-regulator, self desinged injector mounting |
| Fuel | 98 octane |
| Max Power Design | 9500 rpm |
| Max Torque Design | 7000 rpm |

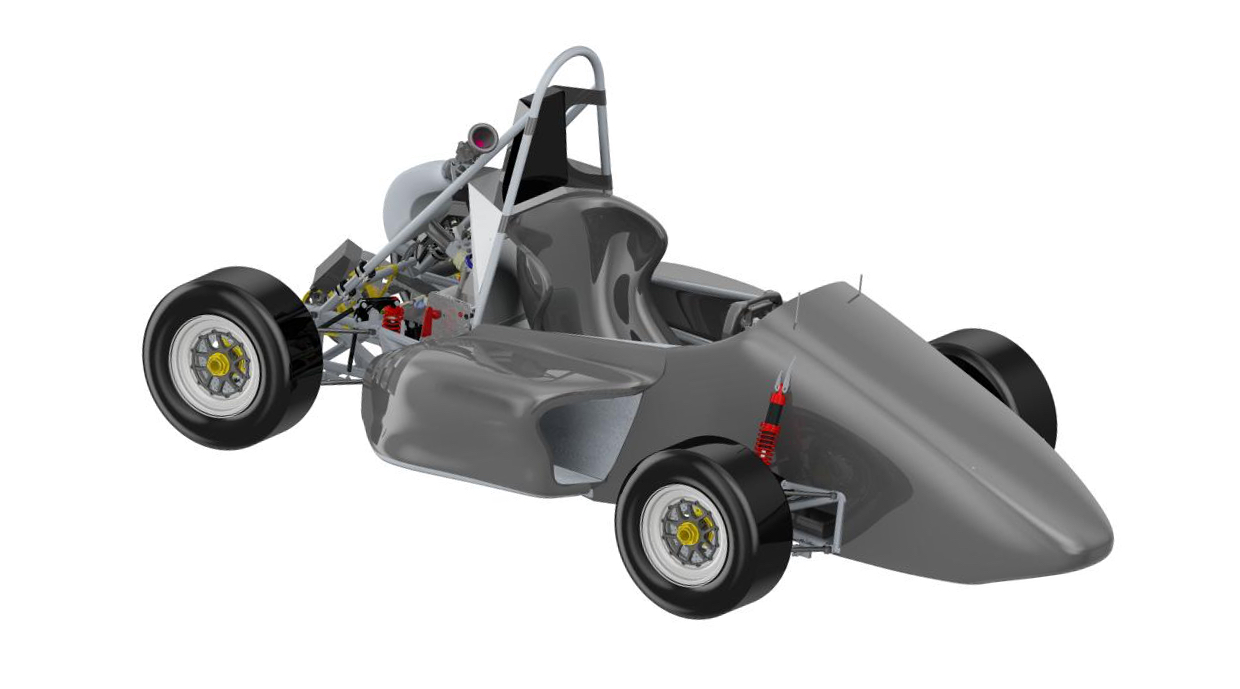

2015
Info
23xNo media information available for this year.
Car Specifications
General
| Frame Construction | Steel tube space frame |
|---|---|
| Material | tubular steel E355 |
| Overall L | 2649 mm |
| Overall W | 1400 mm |
| Overall H | 1130 mm |
| Wheelbase | 1990 mm |
| Track (Fr) | 1400 mm |
| Track (Rr) | 1330 mm |
| Weight with 68kg driver (Fr) | 115 kg |
| Weight with 68kg driver (Rr) | 131 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated spring / damper. Adj. Anti Roll bar. |
| Tyres (Fr / Rr) | Hoosier 18 x 6 R10 |
| Wheels (Fr / Rr) | 18 x 6.0 - 10 / LC0 /Hoosier |
| Drive Type | chain drive 520 chain |
| Differential | Drexler limited slip differential |
| Cooling | aluminium radiator with controlled cooling fan |
| Brake System | 4-Disk system, self developed disks with 183mm diameter, adjustable brake balance, |
| Electronics | wiring harness, multifunctional steering wheel, Custom built dual-band telemetry system... |
Powertrain
| Engine | KTM SX-F 450 Single Cylinder |
|---|---|
| Bore | 95 mm |
| Stroke | 63.4 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12.83:1 : 1 |
| Fuel System | Bosch MS4 ECU,fuelpump,pressure-regulator, self desinged injector mounting |
| Fuel | 98 octane |
| Max Power Design | 9500 rpm |
| Max Torque Design | 7000 rpm |

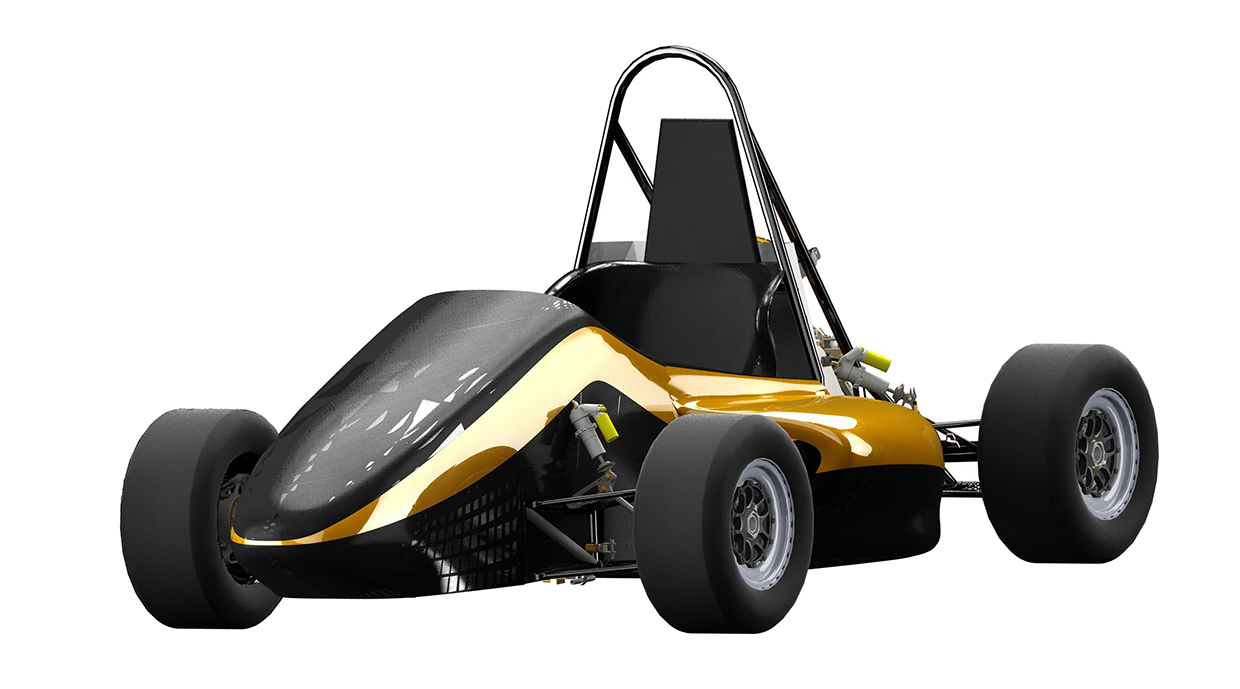

2014
Info
19x
“Rennschmiede Pforzheim” was founded in Sep. 2009 and is now going into its third Formula Student season this year with a motivated team consisting of 40 people.Sticking to the team’s motto “leading the pack by quality” and building on previous experiences and skills,“RSP14” will have a more prone seating position,a totally new electronic and a remarkable fuel tank. Furthermore a new chassis was developed and the weight was decreased tremendously.
Engineering Design Priorities:
Fuel tank
Electronics
Intake System
Body work
Suspension
Car Specifications
General
| Frame Construction | Tubular space frame, 25mm diameter |
|---|---|
| Material | S355 |
| Overall L | 2649 mm |
| Overall W | 1400 mm |
| Overall H | 1130 mm |
| Wheelbase | 1990 mm |
| Track (Fr) | 1400 mm |
| Track (Rr) | 1330 mm |
| Weight with 68kg driver (Fr) | 125 kg |
| Weight with 68kg driver (Rr) | 135 kg |
| Suspension | Double wishbone suspension. Push Rod actuated spring and damper system |
| Tyres (Fr / Rr) | Hoosier 18.0 x 6.0-10 LC0 |
| Wheels (Fr / Rr) | Hoosier 18.0 x 6.0-10 LC0 |
| Drive Type | chain drive 520 chain |
| Differential | Drexler limited slip differential |
| Cooling | Side mounted Radhaus kmk cooler with 200mm lectric fan |
| Brake System | Floating, tempered steel, hub mounted |
| Electronics | Electrohydraulic clutch System, self designed gear and RPM display,mosfets for power switching |
Powertrain
| Engine | Husaberg 570 |
|---|---|
| Bore | 100 mm |
| Stroke | 72 mm |
| Cylinders | 1 |
| Displacement | 565 ccm |
| Compression Ratio | 12,2:1 : 1 |
| Fuel System | Self-designed fuel tank with flaps. Bosch fuel pressure regulator. |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 8000 rpm |
| Max Torque Design | 6000 rpm |

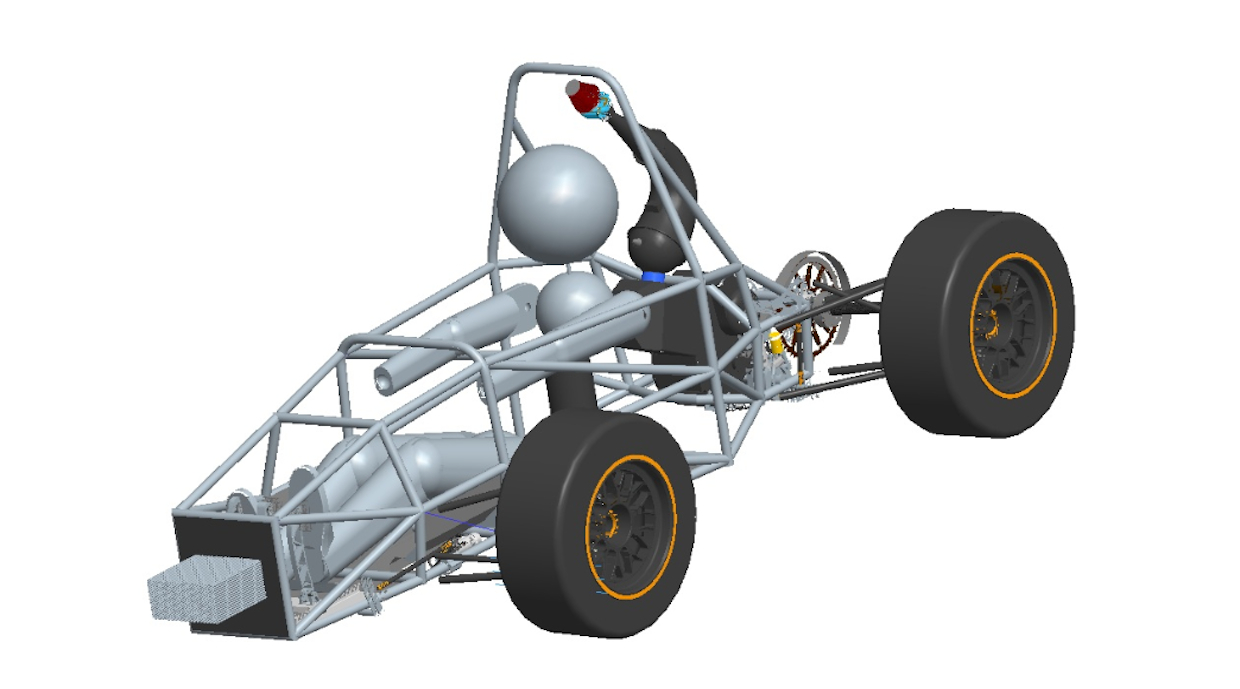

2012
Info
This year the Rennschmiede Pforzheim (RSP) celebrates its Formula Student racing-premiere. Founded in 2009 we started building our team and began to develop the car-concept. Pforzheim, located between Stuttgart and Karlsruhe, is known as the centre of the German jewellery industy. At UAS Pforzheim different courses in engineering, economics, law and design are offered. 30 students of all faculties work together in our team. The car, called RSP-12 „Zabrina“, follows a light-weight concept, with a total weight less than 190kg. For our first car we focussed on reliable solutions following our slogan: "By Quality a Nose Ahead". Polystyrol, combined with textile inlays form the body shell. This offers easy access to all mechanical parts of the car combined with breathtaking design. Furthermore a Head-Up-Display showing the engine speed and a gearshift signal is another outstanding feature of the RSP-12. Especially the HUD supports the driver by increased ergonomics. See you on track!
Car Specifications
General
| Frame Construction | tubular steel frame |
|---|---|
| Overall L | 2700 mm |
| Overall W | 1400 mm |
| Overall H | 1000 mm |
| Wheelbase | 1610 mm |
| Track (Fr) | 1220 mm |
| Track (Rr) | 1140 mm |
Powertrain
| Engine | Modified Husaberg FE570 |
|---|---|
| Cylinders | 1 |
| Displacement | 570 ccm |
| Compression Ratio | 13,5:1 : 1 |
| Fuel | 98 octane unleaded gasoline |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2019.08 | 60 |
22. |
5. |
55. |
40. |
27. |
- |
43. |
- |
38. |
18. |
6. |
0.00 |
415.82 |
|
| 2019.07 | 25 |
20. |
13. |
20. |
18. |
11. |
- |
16. |
- |
17. |
- |
- |
0.00 |
251.78 |
|
| 2018.08 | 57 |
39. |
3. |
37. |
30. |
20. |
- |
45. |
- |
42. |
- |
- |
0.00 |
281.63 |
|
| 2018.07 | 28 |
14. |
11. |
16. |
20. |
20. |
- |
19. |
- |
20. |
12. |
2. |
0.00 |
489.64 |
|
| 2017.08 | 64 |
52. |
60. |
56. |
38. |
11. |
- |
54. |
- |
- |
- |
- |
0.00 |
208.44 |
|
| 2017.08 | 31 |
27. |
30. |
25. |
24. |
26. |
- |
17. |
- |
14. |
- |
- |
0.00 |
236.30 |
|
| 2016.07 | 38 |
12. |
17. |
20. |
26. |
16. |
- |
21. |
- |
18. |
6. |
2. |
-50.00 |
444.91 |
|
| 2015.08 | 20 |
14. |
18. |
15. |
18. |
17. |
- |
14. |
- |
14. |
- |
7. |
0.00 |
308.80 |
|
| 2015.08 | 71 |
54. |
45. |
68. |
57. |
33. |
- |
41. |
- |
32. |
- |
- |
0.00 |
207.98 |
|
| 2014.09 | 44 |
25. |
19. |
- |
24. |
7. |
- |
13. |
- |
9. |
32. |
- |
0.00 |
335.44 |
|
| 2014.08 | 74 |
34. |
39. |
25. |
46. |
28. |
- |
26. |
- |
45. |
26. |
14. |
0.00 |
365.54 |
|
| 2013.09 | 42 |
7. |
8. |
31. |
19. |
5. |
- |
21. |
- |
14. |
6. |
6. |
0.00 |
605.00 |
|
| 2013.08 | 39 |
31. |
28. |
28. |
25. |
18. |
- |
30. |
- |
25. |
- |
- |
0.00 |
243.58 |
|
| 2012.09 | 37 |
33. |
33. |
10. |
27. |
- |
- |
22. |
- |
22. |
16. |
- |
-50.00 |
202.57 |
|
| 2012.08 | 76 |
62. |
58. |
64. |
63. |
- |
- |
54. |
- |
57. |
- |
20. |
-30.00 |
211.42 |
|
| x 15 | |||||||||||||||
