Team Details

HHN Racing e.V.

University Hochschule Heilbronn
DE Heilbronn UAS short 568
team logo
LocationHeilbronn, Germany
Homepagehttps://www.hhn-racing.de/
Social Media
EV Team HHN Racing e.V.
Short Linktid.fsg.one/215

Past Events

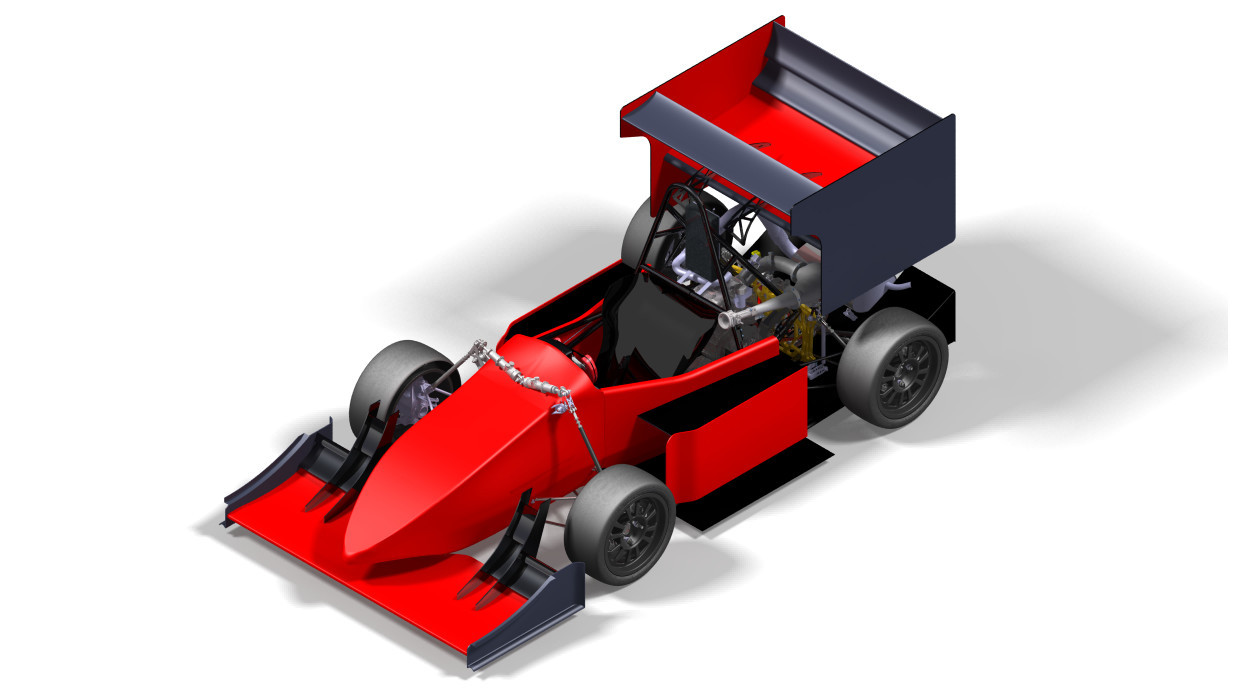

Car 239 – 2021
2021
Car #239
Info
96x
We at HHN Racing e.V. dedicated the year 2021 to revise on our cooling system, steering and wheel hub for one goal: RELIABILITY. Our changes on the car should lead to less technical problems which occourd 2019.We are also proud to say that HNR21's front and rear wing got upgrated and should perform better than ever.
Car Specifications
General
Frame Construction Welded steel spaceframe with water jet cutted aluminium endplate
Material E355 steel tubing, 7075 Aluminium endplate, Aluminium honeycomb crashstructure
Overall L 2920 mm
Overall W 1405 mm
Overall H 1188 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 126 kg
Weight with 68kg driver (Rr) 140 kg
Suspension Double unequal length A-Arm. Push rod actuated dampers, adjustable in compression.
Tyres (Fr / Rr) 205/470 R13 Continental
Wheels (Fr / Rr) OZ Formula Student 13
Drive Type Chaindrive
Differential adjustable limited slip differential
Cooling left side mounted, single core, 240mm x 200mm, single electric fan rear mounted
Brake System 4-Disk system, self-developed rotors with front 218mm and rear 208mm diameter, adj. brake
Electronics Bosch MS6 ECU; electropneumatic shifting & clutch; Telemetry; Instruments with RGB-LEDs
Powertrain
Engine Modified Husqvarna SMR 510
Bore 97 mm
Stroke 67.8 mm
Cylinders 1
Displacement 501 ccm
Compression Ratio 13,3 : 1
Fuel System Bosch fuel injection EV14 L-Valve in student designed housing in manifold
Fuel 98 octane unleaded gasoline
Max Power Design 9000 rpm
Max Torque Design 8000 rpm

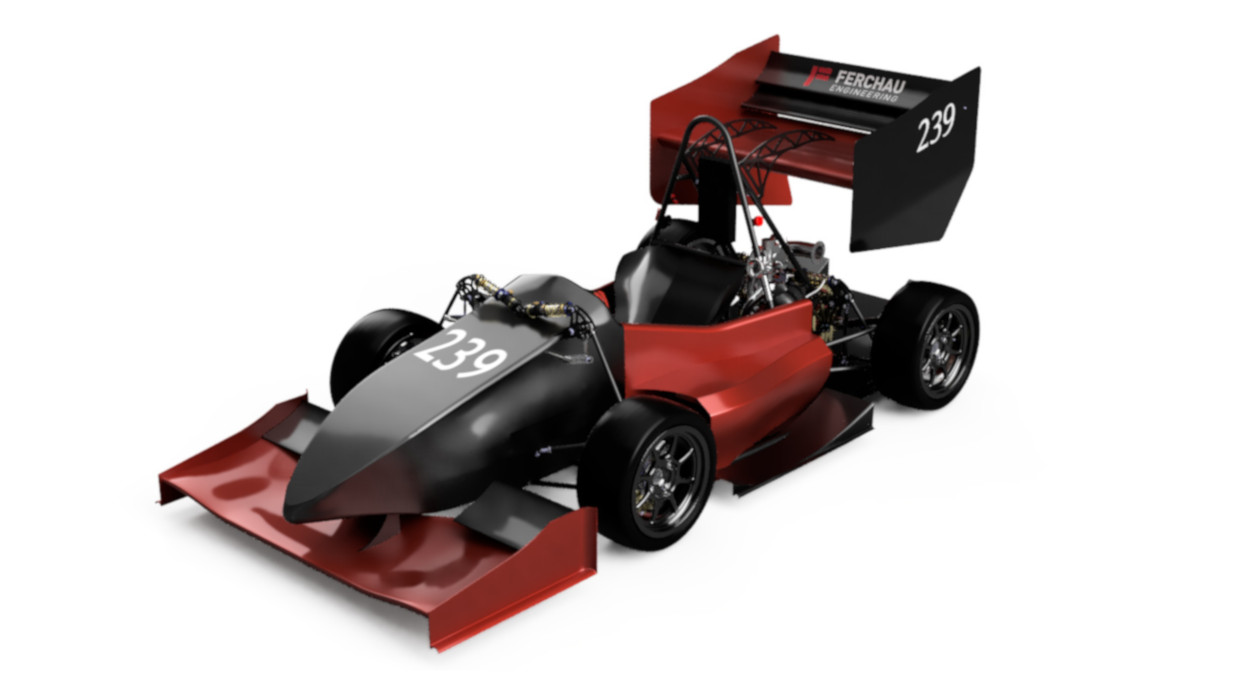

Car 239 – 2019
2019
Car #239
Info
17x
HHN Racing is sending the HNR19 into the race. We did not hesitate to tackle bigger changes to make our 5th car faster than the HNR18. First up is the new suspension system, which strives to improve drivability by reducing steering forces. This year we’re back to spring-dampers and worked hard to get the geometry and setup right. After years of big noses, we’re proud to say that the HNR19 comes with a fresh look and improved aerodynamics. Just one hour apart, FSG is a home match for us!
Car Specifications
General
Frame Construction Welded steel spaceframe with water jet cutted aluminium endplate
Material E355 steel tubing, 7075 Aluminium endplate, Aluminium honeycomb crashstructure
Overall L 2920 mm
Overall W 1405 mm
Overall H 1188 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 124 kg
Weight with 68kg driver (Rr) 132 kg
Suspension Double A-Arm, Push rod actuated dampers, adjustable in compression and in rebound range
Tyres (Fr / Rr) 205/470 R13, Continental 34M front & rear
Wheels (Fr / Rr) OZ Formula Student 13
Drive Type Chaindrive
Differential Drexler Adjustable limited slip differential
Cooling left side mounted, single core, 240mm x 200mm, single electric fan rear mounted
Brake System 4-Disk system, self-developed rotors with front 218 mm and rear 208 mm diameter, adj. brak
Electronics Bosch MS6 ECU; electropneumatic shifting & clutch; Telemetry; Instruments with RGB-LEDs
Powertrain
Engine Modified Husqvarna SMR 510
Bore 97 mm
Stroke 67.8 mm
Cylinders 1
Displacement 501 ccm
Compression Ratio 13,3:1 : 1
Fuel System Bosch fuel injection EV14 L-Valve in student designed housing in manifold
Fuel 98 octane unleaded gasoline
Max Power Design 9000 rpm
Max Torque Design 6500 rpm

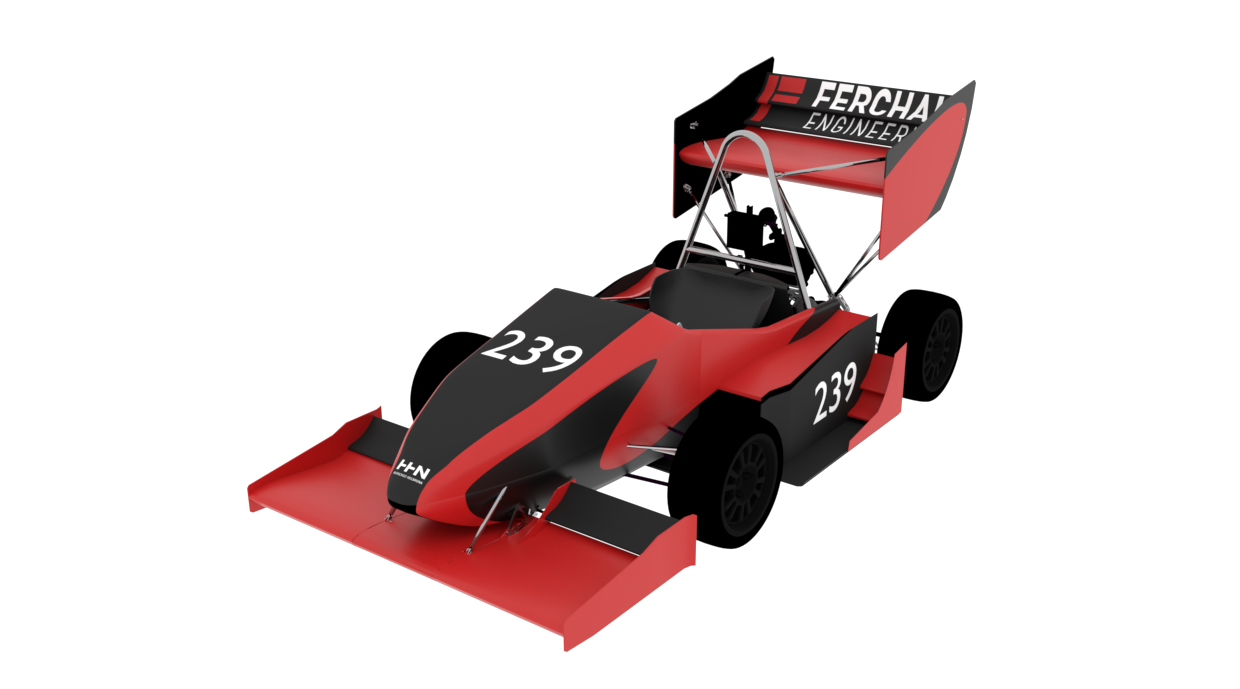

Car 239 – 2018
2018
Car #239
Info
20x
The wings are back! The HNR18, the fourth car by HHN Racing, features a new aero package for increased downforce. This and a reworked suspension system allows us to master curves at higher speed. Further development of the engine leads to a power and torque gain of 15% compared to the HNR17. A novelty is the usage of custom ECU functions for the single-cylinder engine. For improved ergonomics, we use an e-paper display, new seat and shift paddles amongst other things.
Engineering Design Priorities:
Display & Telemetry MS6 Custom Code Area Aerodynamics Pedals
Car Specifications
General
Frame Construction Welded steel spaceframe with water jet cutted aluminium endplate
Material E335
Overall L 2932 mm
Overall W 1398 mm
Overall H 1181 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 127 kg
Weight with 68kg driver (Rr) 135 kg
Suspension Double unequal length A-Arm. Pull rod actuated dampers, adjustable in compression and in r
Tyres (Fr / Rr) 205/470 R13, Continental
Wheels (Fr / Rr) OZ Formula Student 13
Drive Type Chain
Differential Drexler Adjustable limited slip differential
Cooling left side mounted, single core, 240mm x 200mm, single electric fan rear mounted
Brake System 4-Disk system, self-developed rotors with front 218 mm and rear 208 mm diameter, adj. brak
Electronics Bosch MS6 ECU;electropneumatic shifting & clutch;Telemetry;Instruments with LEDs & ePaper
Powertrain
Engine Husqvarna SMR 510
Bore 97 mm
Stroke 67.8 mm
Cylinders 1
Displacement 501 ccm
Compression Ratio 13,3:1 : 1
Fuel System Bosch fuel injection EV14 L-Valve in student designed housing in manifold
Fuel 98 octane unleaded gasoline
Max Power Design 9000 rpm
Max Torque Design 8000 rpm

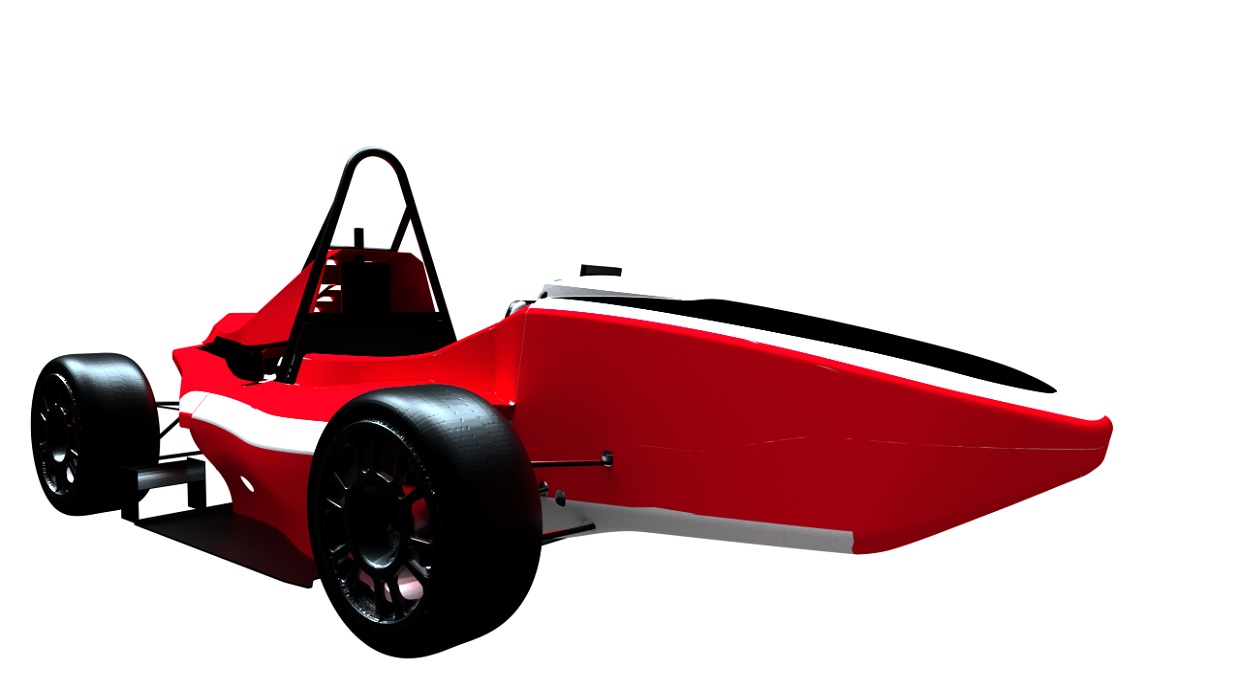

Car 239 – 2017
2017
Car #239
Info
27x
HHN Racing is the Formula Student team of the UAS Heilbronn is one of the biggest university of applied sciences in Germany. Thanks to all sponsors and our university. Our goal was to build a car that is easy to understand and reliable. Every newbie should easily understand the technic. With this priority we optimised the service ability.
Car Specifications
General
Frame Construction Tubular steel space frame with aluminium endplate
Material E355 / EN-AW 7075
Overall L 2740 mm
Overall W 1398 mm
Overall H 1081 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 128 kg
Weight with 68kg driver (Rr) 131 kg
Suspension unequal length A-Arm. (Fr) Pull rod (Rr) Push rod actuated. Fully adj. Damper. Adj. ARB
Tyres (Fr / Rr) 18.0
Wheels (Fr / Rr) 13”
Drive Type 520 motorcycle chain
Differential Drexler FS limited slip differential
Cooling Self designed Radiator with aluminium hard tubes
Brake System 4-Disk system, self-developed rotors with front 218 mm and rear 208 mm diameter, adj. brak
Electronics Bosch MS6 ECU, self progammed 5” Touch Display, electro-pneumatic Shifting System
Powertrain
Engine SWM 500
Bore 97mm mm
Stroke 67.8 mm
Cylinders 1
Displacement 501 ccm
Compression Ratio 13,3:1 : 1
Fuel System Bosch fuel injection EV14 L-Valve in student designed housing in manifold
Fuel 98 octane unleaded gasoline
Max Power Design 7600 rpm
Max Torque Design 5500 rpm

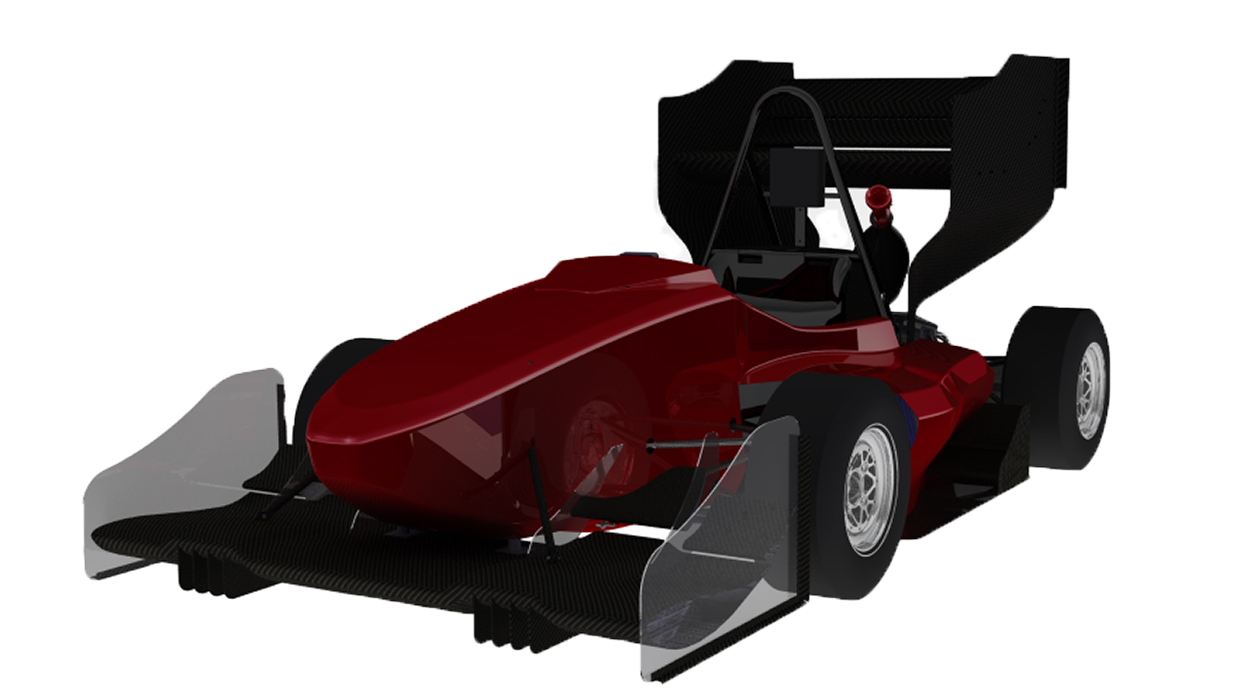

Car 239 – 2016
2016
Car #239
Info
15x
HHN Racing is the redesigned Formula Student team of the UAS Heilbronn. Thanks to all sponsors and our university. Our goal was to build a car that is easy to understand. Every newbie should easily understand the technic. With this priority we optimised the service ability.
Engineering Design Priorities:
HNR16 Heilbrumm JetztErstRecht WieDuGehstSchon? GlatteLage KannschMache
Car Specifications
General
Frame Construction Tubular steel space frame with aluminium endplate
Material E355 / EN-AW 7075
Overall L 2874 mm
Overall W 1368 mm
Overall H 1180 mm
Wheelbase 1525 mm
Track (Fr) 1200 mm
Track (Rr) 1200 mm
Weight with 68kg driver (Fr) 128 kg
Weight with 68kg driver (Rr) 157 kg
Suspension Double unequal length A-Arm. (Fr) Pull rod (Rr) Push rod actuated. Fully adj. Damper. Adj. ARB
Tyres (Fr / Rr) 18.0
Wheels (Fr / Rr) Keizer Wheels, 3pc Al-Mg 7
Drive Type 520 motorcycle chain
Differential Drexler FS limited slip differential
Cooling side mounted radiators with fans
Brake System 4-Disk system, self developed rotors with 194mm wave design, adj. brake balance
Electronics MoTeC ECU & PDM, Vector CANCase, electropneumatic Shifting System
Powertrain
Engine 2008 Husqvarna TE 510
Bore 100 mm
Stroke 67.8 mm
Cylinders 1
Displacement 533 ccm
Compression Ratio 14:1 : 1
Fuel System Bosch fuel injection valve in student designed housing in manifold
Fuel 98 octane unleaded gasoline
Max Power Design 9200 rpm
Max Torque Design 6500 rpm

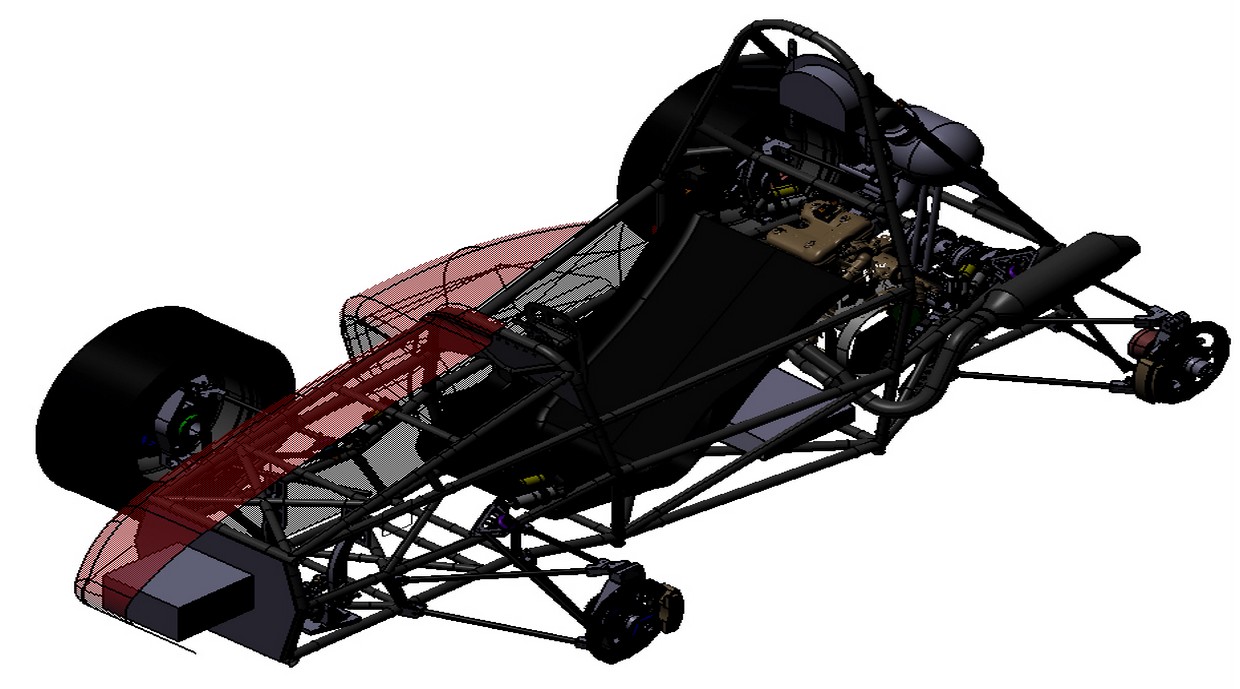

2013
Car #21
Info
4x
In 2007 two students had the idea to found a Formula Student team representing the University of Applied Science Heilbronn. During the following years they achieved to build a team which has about 15 team members today. The most important improvement of the Raptor 2013 is the frame which is designed according to the Alternative Frame Rules to decrease weight without losing stiffness. Furthermore, we designed new uprights with center-lock wheel hubs, optimized wiring harness, steering wheel with integrated multifunctional display, optimized suspension mounting and the bodywork made of carbon. The one cylinder engine from Husqvarna is modified with two injection valves, a 6-liter airbox and a 4-gear-transmission based on the original gearbox to improve the performance in the dynamic events. In addition to that an automatic clutch system will help the driver to focus on the track. We are also well-prepared for the static events with a detailed Cost Report and an elaborate Business Plan.
Car Specifications
General
Frame Construction tubular steel frame
Material E355 C1
Overall L 2340 mm
Overall W 1440 mm
Overall H 1200 mm
Wheelbase 1525 mm
Track (Fr) 1284 mm
Track (Rr) 1240 mm
Weight with 68kg driver (Fr) 139 kg
Weight with 68kg driver (Rr) 156 kg
Suspension Double unequal length A-Arm. Push rod actuated Adjustable in compression and in rebound range
Tyres (Fr / Rr) 20.5x7 - R13 Hoosier
Wheels (Fr / Rr) 7x13" ET5, 3 pc Al-Mg Rim
Drive Type chain drive 520 motorcycle chain
Differential Drexler FS limited slip differential
Cooling side mounted radiator with fan
Brake System floating 220mm brake disks, AP Racing brake calipers, adjustable brake balance
Electronics display integrated to steering wheel, live telemetry system, self-developped Gear Control Unit
Powertrain
Engine Modified Husqvarna 510 SMR 2008
Bore 97 mm
Stroke 67,8 mm
Cylinders 1
Displacement 501 ccm
Compression Ratio 13.5 : 1
Fuel System Bosch MS4 ECU, Mikuni Injection System
Fuel E85
Max Power Design 8150 rpm
Max Torque Design 7150 rpm

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2021.08
FS DE
21
13.
20.
20.
18.
15.
-
13.
-
10.
11.
1.
0.00
449.63
2021.08
FS ES
17
6.
17.
4.
11.
8.
-
8.
-
7.
6.
1.
0.00
480.10
2019.08
FS DE
60
50.
46.
54.
37.
30.
-
42.
-
-
-
-
0.00
196.79
2019.08
FS AT
34
30.
21.
22.
32.
-
-
-
-
17.
-
-
-20.00
146.20
2019.07
FSAE IT
40
26.
27.
19.
21.
-
-
-
-
18.
-
-
-20.00
233.98
2018.08
FS DE
57
40.
33.
43.
30.
38.
-
39.
-
36.
-
-
0.00
265.60
2017.08
FS DE
64
39.
33.
28.
44.
31.
-
33.
-
48.
19.
-
-5.00
302.39
2017.08
FS AT
31
25.
22.
9.
27.
16.
-
24.
-
14.
11.
-
-40.00
251.90
2016.08
FS DE
73
66.
43.
46.
60.
49.
-
-
-
-
-
-
0.00
159.27
2016.08
FS AT
21
21.
18.
17.
20.
21.
-
19.
-
21.
17.
-
-50.00
135.60
2016.07
FSAE IT
38
24.
30.
23.
19.
-
-
17.
-
21.
26.
-
0.00
250.13
2015.09
FSAE IT
43
37.
28.
39.
34.
-
-
-
-
-
34.
-
0.00
172.21
2015.08
FS AT
20
20.
19.
16.
19.
-
-
-
-
-
14.
-
0.00
117.80
2013.08
FS DE
74
74.
69.
74.
69.
-
-
-
-
-
-
-
0.00
68.40
2012.09
FSAE IT
37
19.
24.
34.
32.
25.
-
19.
-
17.
12.
-
-50.00
351.10
2012.08
FS HU
39
38.
17.
28.
38.
-
-
-
-
-
-
-
0.00
121.74
2011.09
FSAE IT
49
44.
42.
43.
43.
33.
-
32.
-
-
-
-
0.00
156.00
x 17
