Team Details

Racing Team Pilsen

University University of West Bohemia
CZ Plzen UWB short 556
LocationPlzen, Czech Republic
Homepagehttp://uwbracing.cz/
Social Media
EV Team UWB eRacing Team Pilsen
Short Linktid.fsg.one/207

Past Events

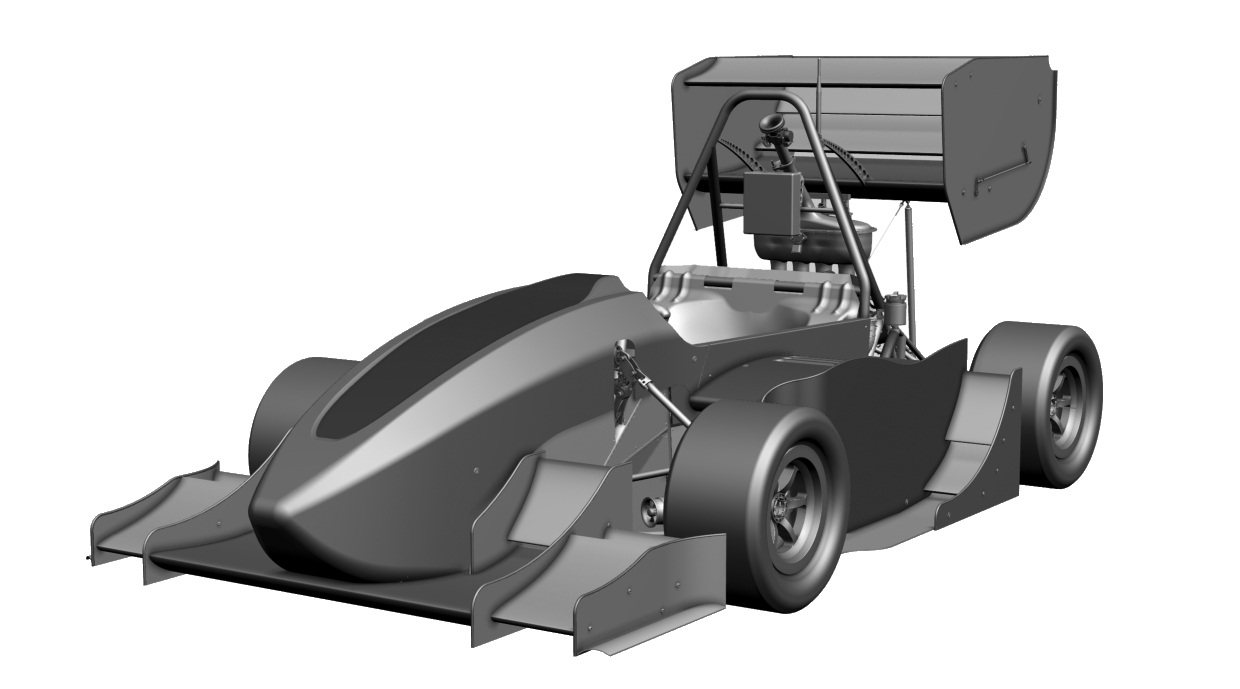

Car 260 – 2018
2018
Car #260
Info
29x
The UWB Racing Team Pilsen from the University of West Bohemia consists of 25 team members. We present to you our 5th generation formula student car UWB05. This car is equipped with a new shift system which is operated by gas, new 4-speed gearbox, and a front/rear DRS system. The main goals of our design were a lightweight car and improved aerodynamic downforce balance between the front and rear axles.
Engineering Design Priorities:
lightweight reliability manufacturability
Car Specifications
General
Frame Construction Steel spaceframe
Material AISI 4340
Overall L 2449 mm
Overall W 1422 mm
Overall H 1185 mm
Wheelbase 1590 mm
Track (Fr) 1210 mm
Track (Rr) 1150 mm
Weight with 68kg driver (Fr) 140 kg
Weight with 68kg driver (Rr) 153 kg
Suspension Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper
Tyres (Fr / Rr) Hoosier 18.0 x 7.5-10 - R25B
Wheels (Fr / Rr) OZ Racing Magnezium shell wheel 10
Drive Type Sequential 4-speed gearbox
Differential Drexler FS2010
Cooling Side mounted core aluminium radiator, with 2x1716 cfm fan
Brake System ISR 22-048-OB - four pistons
Electronics AIM MXS,Transmission Control Unit, Telemetry unit, DRS control unit
Powertrain
Engine Yamaha/YZF-R6 - 2013
Bore 67 mm
Stroke 42.5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 13.7:1 : 1
Fuel System Dual injection
Fuel 98 octane unleaded gasoline
Max Power Design 11000 rpm
Max Torque Design 7000 rpm

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2019.08
FS CZ
33
6.
7.
21.
12.
11.
-
2.
-
17.
6.
9.
0.00
748.12
2019.07
FSAE IT
40
6.
13.
24.
22.
10.
-
1.
-
6.
5.
14.
0.00
709.96
2018.08
FS DE
57
26.
15.
49.
42.
18.
-
2.
-
20.
-
-
0.00
354.44
2018.07
FSAE IT
46
7.
8.
10.
17.
13.
-
4.
-
8.
6.
16.
-50.00
656.11
2017.08
FS CZ
33
7.
12.
24.
27.
6.
-
6.
-
6.
4.
14.
0.00
637.66
2017.07
FSAE IT
43
4.
16.
14.
11.
12.
-
5.
-
10.
7.
12.
0.00
734.71
2016.07
FS UK
106
22.
41.
75.
23.
42.
-
11.
-
31.
21.
19.
0.00
490.70
2013.08
FS HU
37
28.
37.
21.
28.
21.
-
23.
-
19.
-
-
0.00
289.70
2013.07
FS UK
83
39.
53.
49.
70.
32.
-
24.
-
30.
17.
-
0.00
304.10
2012.09
FSAE IT
37
34.
27.
28.
25.
18.
-
27.
-
19.
22.
-
-100.00
165.56
