Team Details

WUT Racing

University	Warsaw University of Technology Politechnika Warszawska local PL Warszawa UT short 553
Location	Warszawa, Poland
Homepage	https://wutracing.pl/
Social Media
DV Team	Proton Dynamic Driverless
EV Team	Proton Dynamic
Short Link	tid.fsg.one/204

Team Description

Fasten your seatbelts and embark on an exciting journey with WUT Racing! Our story began in 2011 at the Faculty of Power and Aeronautical Engineering. Since then, united by a passion for motorsport, we have been pursuing a common goal: to build a race car capable of competing in the demanding Formula Student competitions worldwide.

We are a unique team of talented students from leading universities in Warsaw, all driven by the ambition to succeed in these prestigious events. How do we plan to achieve this? Our path to success is built on teamwork, determination, and passion, with the goal of creating a competitive race car together.

Through our dedication and joint efforts, we are not only constructing a machine from metal and advanced technologies but also building a strong community where everyone contributes to the shared goal. For us, this is more than just a race — it's a journey toward fulfilling our dreams and earning recognition in the world of student motorsport.

Event Profile

Past Events

2023

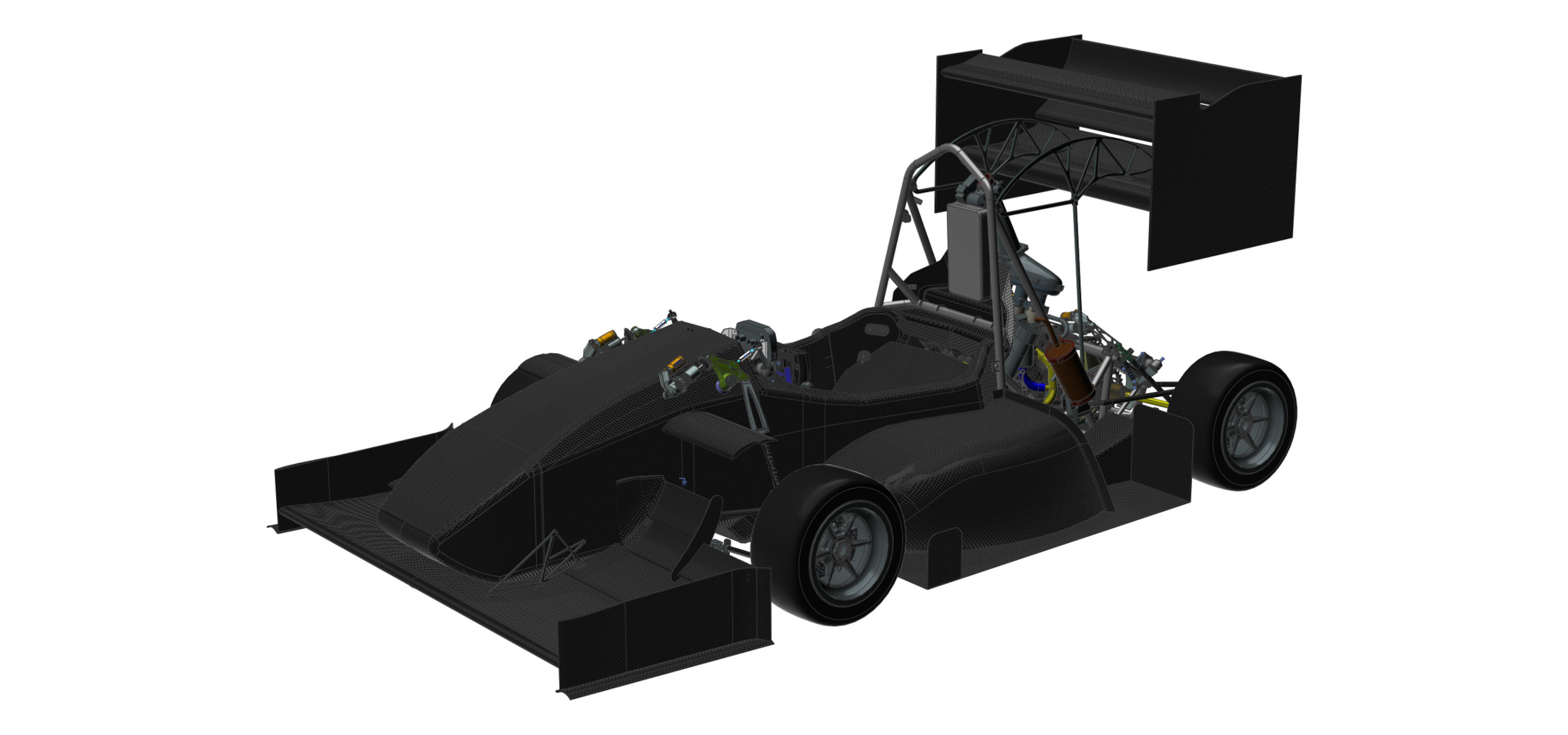

Car #338

Info

WUT Racing, the Formula Student team from Warsaw University of Technology, proudly presents its fourth racecar, the WUT-4. With completely redesigned monocoque, improved aerodynamics package and several other performance-enhancing changes compared to its predecessor, it represents the combined effort of all our team members and a significant step forward in our engineering process. We are very excited about our first start in FSG and we are hoping to make history!

Engineering Design Priorities:

lightness monocoque maneuverability aerodynamics reliability efficiency

Car Specifications

General

Frame Construction	Partial Monocoque and steel rear subframe
Material	CFRP, AL honeycomb, CrMo
Overall Length (mm)	2871
Overall Width (mm)	1510
Overall Height (mm)	1183
Wheelbase (mm)	1600
Track Front (mm)	1260
Track Rear (mm)	1170
Weight Front (kg)	140
Weight Rear (kg)	130
Suspension	Front and rear double wishbone with push rod and mechanical ARB
Tyres	Hoosier 16x6-10
Wheels	Oz magnesium 10
Drive Type	Chain: DID ERT 520
Differential	LSD
Cooling	Left-side mounted single radiator with electric fan
Brake System	Hydraulic brake system with mechanical balance adjustment, floating brake discs
Electronics	Paddle shifters, Launch control, Telemetry of car dynamics, engine and suspention systems

Powertrain

Engine	Modified Honda CBR600RR (PC40)
Bore (mm)	69.0
Stroke (mm)	42.5
Cylinders	4
Displacement (ccm)	636
Compression Ratio	13,5:1
Fuel System	stock injectors, custom printed titanium rail, Walbro GSL392
Fuel	E85
Max Power (kW)	11000
Max Torque (Nm)	10600
