Team Details
Lund Formula Student
| University | Lund University
SE Lund U short 169 |
 |
|---|---|---|
| Location | Lund, Sweden | |
| Homepage | https://lundformulastudent.se/ | |
| Social Media | ||
| DV Team | Lund Formula Student | |
| EV Team | Lund Formula Student | |
| Short Link | tid.fsg.one/172 | |
Team Description
Lund Formula Student was previously known as LU Racing.
Past Events

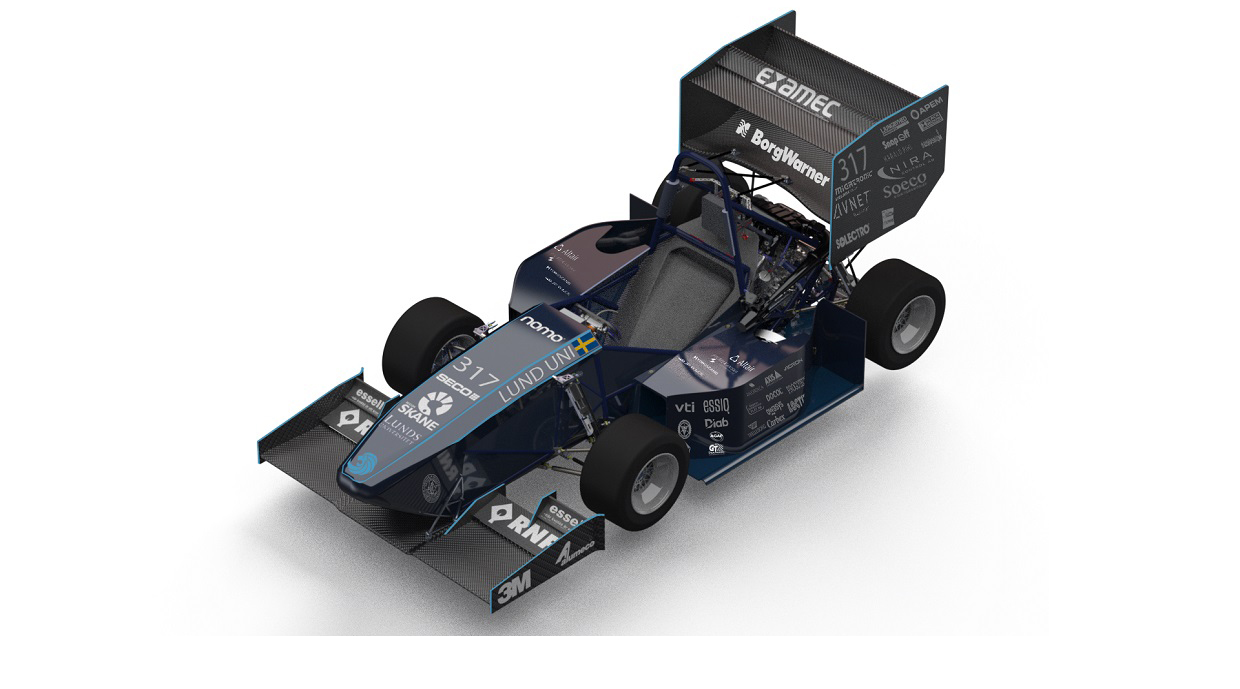

2019
Info
47x
Lund Formula Student is returning to FSG for the third year in a row. 40 students from 10 different programs have been working hard since September to produce our latest car, LFS19. The biggest changes from last year are a more advanced aerodynamics package, front anti-roll bar, electro-pneumatic shifting system, and a 10% overall reduction in weight. We are determined to continue the trend of positive results we have achieved in the past couple of years, and are aiming for a top ten finish.
Engineering Design Priorities:
Reliability
Adjustability
Weight reduction
Design validation
Manufacturability
Car Specifications
General
| Frame Construction | Tubular steel space frame with CFRP sandwich panel reinforcement |
|---|---|
| Material | Cold drawn seamless steel tubes. Foam core CFRP sandwich panels |
| Overall L | 2951 mm |
| Overall W | 1435 mm |
| Overall H | 1150 mm |
| Wheelbase | 1590 mm |
| Track (Fr) | 1190 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 134 kg |
| Weight with 68kg driver (Rr) | 144 kg |
| Suspension | Double A-arm. Direct actuated spring and damper (air spring). Anti-roll bar front and rear |
| Tyres (Fr / Rr) | 18.0x6.0 R10 Hoosier R25B. Front and rear |
| Wheels (Fr / Rr) | 7x10 split aluminium rim, milled aluminium center. Front and rear |
| Drive Type | Chain drive |
| Differential | Limited slip differential with preload adjustment |
| Cooling | Side mounted custom water and oil radiator with xxxmm electric fan. |
| Brake System | 4-Disk steel rotor system with adjustable brake balance. |
| Electronics | Electronic throttle, electro-pneumatic clutchless shifting, live-telemetry, launch control |
Powertrain
| Engine | Modified Honda CB600F |
|---|---|
| Bore | 67.0 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 14:1 : 1 |
| Fuel System | Port injection at intake runners. 3D printed fuel tank with fuel mat. |
| Fuel | E85 |
| Max Power Design | 10500 rpm |
| Max Torque Design | 8500 rpm |

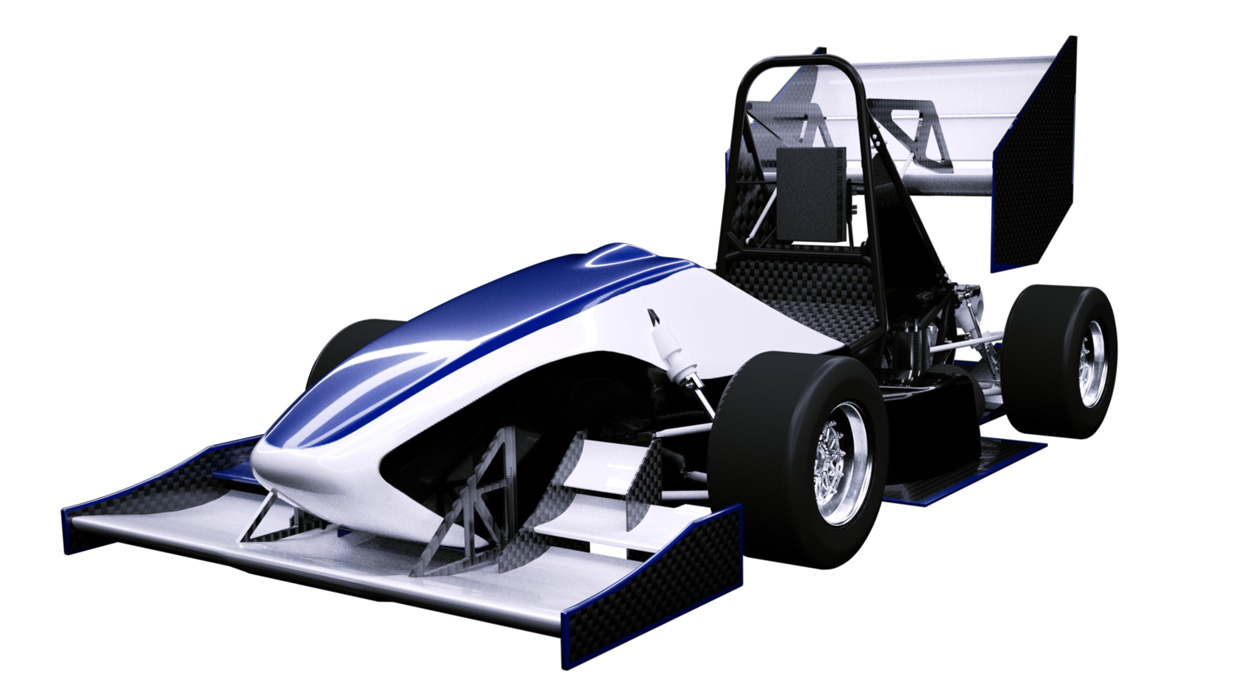

2018
Info
37x
Presenting the LFS-18, the tenth car from Lund Formula Student. Designed and built by 35 students from 4 different engineering faculties since September 2017. It is a continuation on the concept from LFS-17, with big changes to the suspension, powertrain and aerodynamics. This year we are determined to break our recent streak of negative results, and return to being one of the top European combustion teams. We would like to thank all our sponsors for making the LFS-18 possible!
Engineering Design Priorities:
Function
Manufacturability
Reliability
Adjustability
Car Specifications
General
| Frame Construction | CFRP reinforced tubular steel space frame |
|---|---|
| Material | Cold drawn seamless steel tubes, CFRP foam core sandwich panels |
| Overall L | 2968 mm |
| Overall W | 1416 mm |
| Overall H | 1181 mm |
| Wheelbase | 1570 mm |
| Track (Fr) | 1190 mm |
| Track (Rr) | 1190 mm |
| Weight with 68kg driver (Fr) | 125 kg |
| Weight with 68kg driver (Rr) | 153 kg |
| Suspension | Double unequal length A-arms. Direct actuated air shocks. |
| Tyres (Fr / Rr) | 18.0x6.0 Hoosier R25B / 18x7.5 Hoosier R25B |
| Wheels (Fr / Rr) | 7x10 Split aluminium rim, milled center. Front and rear |
| Drive Type | Chain drive |
| Differential | Limited Slip Differential |
| Cooling | Twin side mounted aluminium radiators with electric fans |
| Brake System | 4 floating hub mounted steel disks. 2 piston rear calipers, 4 piston front calipers. |
| Electronics | Electronic Throttle, clutchless shifting, launch control, multifunctional steering wheel |
Powertrain
| Engine | Modified Honda CB600F |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 14:1 : 1 |
| Fuel System | Port injection with single injector per cylinder, placed on intake runners. |
| Fuel | E85 |
| Max Power Design | 10500 rpm |
| Max Torque Design | 9000 rpm |

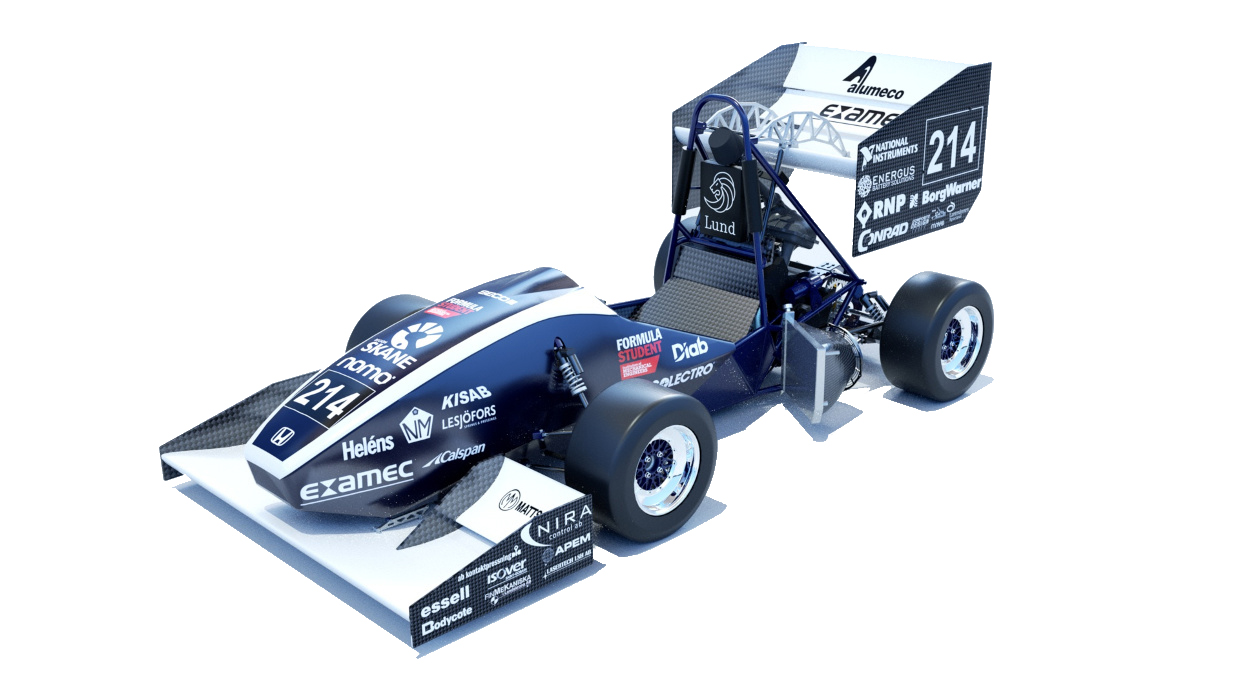

2017
Info
30x
Lund Formula Student was formed in 2006. This year’s team consists of 30 students from five different engineering faculties and have now built the ninth car in one year. The focus has been on function and reliability. The car, LFS-17, uses an open steel space-frame with a composite body and is powered by a 600 cc Honda engine.The news for this year is the de-dion axel in the rear and a vastly different aero-package, which is tailored specifically for the LFS-17 car.
Engineering Design Priorities:
Function
Reliability
Sweden
Combustion
De-Dion
Honda
Car Specifications
General
| Frame Construction | CFRP reinforced one piece tubular steel space frame |
|---|---|
| Material | Seamless cold drawn steel tubes (EN 10305-1/4) |
| Overall L | 2900 mm |
| Overall W | 1393 mm |
| Overall H | 1168 mm |
| Wheelbase | 1535 mm |
| Track (Fr) | 1160 mm |
| Track (Rr) | 1160 mm |
| Weight with 68kg driver (Fr) | 139 kg |
| Weight with 68kg driver (Rr) | 144 kg |
| Suspension | Double unequal length A-Arm in front, 4 link de-dion |
| Tyres (Fr / Rr) | 191x53 R10, Hoosier R25B / 191x53 R10, Hoosier R25B |
| Wheels (Fr / Rr) | 7.0x10, 3 pc Al Rim |
| Drive Type | 520 Chain - Sprocket |
| Differential | Drexler LSD |
| Cooling | 683 cm^2 core aluminium radiator, electric fan |
| Brake System | ISR calipers, 4 piston front/ 2 in rear. Hub mounted drilled steel disks, |
| Electronics | Multifunctional steering wheel with paddels, electronically actuated gear and clutch |
Powertrain
| Engine | Honda CB600F |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.0:1 : 1 |
| Fuel System | Port injection, OEM fuel rail, OEM injectors |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 10500 rpm |
| Max Torque Design | 7000 rpm |

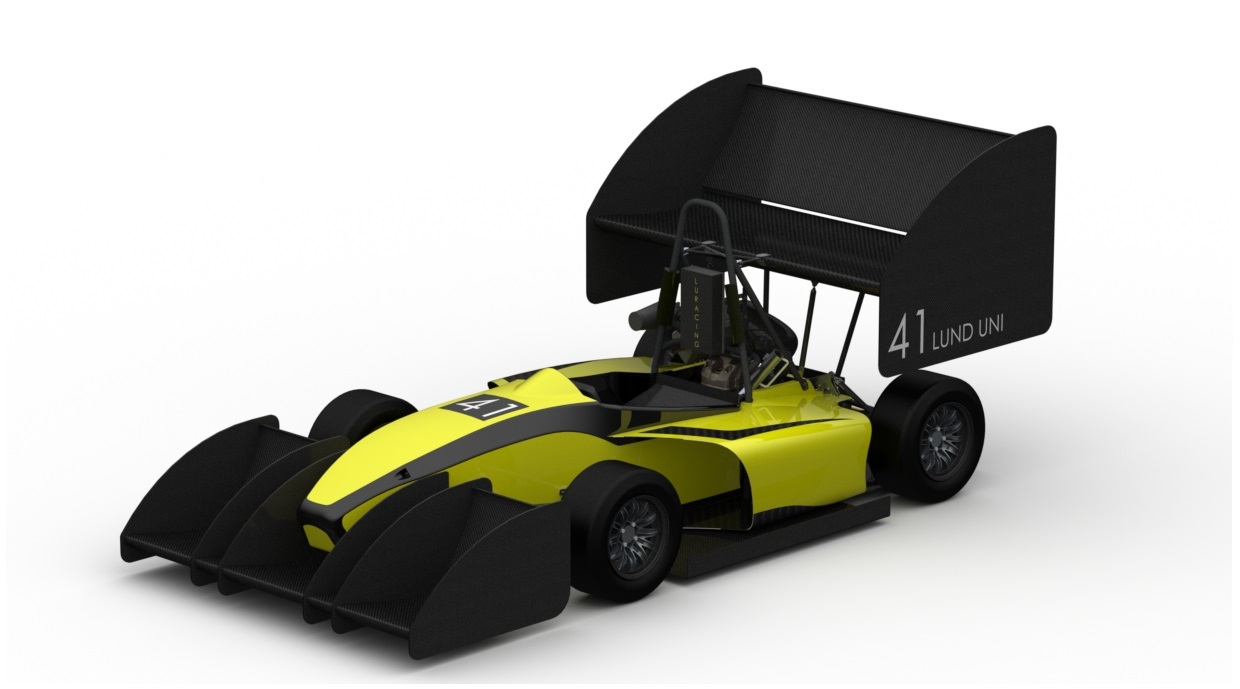

2014
Info
32x
For the first time ever, Lund University is competing at Hockenheim. LURacing is competing with 30 highly motivated students from several different fields of studies. Backed by calculations and value driven decisions, the team has decided to go for a very lightweight solution with high downforce and high stiffness. These attributes were realized with a single cylinder 450cc engine, carbon fiber monocoque, an effective wing package and 10" wheels.
Engineering Design Priorities:
Reliability
Downforce
Lightweight
Stiffness
Simplicity
Driveability
Car Specifications
General
| Frame Construction | Single piece CFRP monocoque |
|---|---|
| Material | T700 carbon fiber, VTM264 epoxy, 5056 10&25mm thick aluminum honeycomb |
| Overall L | 3036 mm |
| Overall W | 1406 mm |
| Overall H | 1266 mm |
| Wheelbase | 1530 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1150 mm |
| Weight with 68kg driver (Fr) | 107 kg |
| Weight with 68kg driver (Rr) | 106 kg |
| Suspension | Unequal length A-Arms. Pull rod actuated Cane Creek Double Barrel spring/damper units |
| Tyres (Fr / Rr) | 6.0x18.0-10 LC0 Hoosier / 6.0x18.0-10 LC0 Hoosier |
| Wheels (Fr / Rr) | 6.5" wide, 19mm et, 2pc wheels / 6.5" wide, 19mm et, 2pc wheels |
| Drive Type | Chain and sprocket |
| Differential | Drexler Formula Student, Salisbury Limited Slip type, adjustable locking torque |
| Cooling | Side mounted two core water radiator, 247 cfm electric fan mounted |
| Brake System | 4-disc system, ISR 189mm hole drilled steel rotors. 2 piston calipers. Driver adj. bias bar. |
| Electronics | Solid state controlled electric shifter, custom steering wheel, high speed CAN 2.0b |
Powertrain
| Engine | Honda CRF 450X 2006 |
|---|---|
| Bore | 96 mm |
| Stroke | 62.1 mm |
| Cylinders | 1 |
| Displacement | 449 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | DTA S60 pro control unit, Sequential port fuel injection,350cc@3 bar injector |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9500 rpm |
| Max Torque Design | 7000 rpm |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2021.07 | 26 |
5. |
22. |
- |
15. |
4. |
- |
2. |
- |
9. |
2. |
6. |
0.00 |
658.58 |
|
| 2019.08 | 60 |
8. |
41. |
23. |
15. |
13. |
- |
21. |
- |
14. |
9. |
13. |
0.00 |
661.12 |
|
| 2019.07 | 28 |
2. |
6. |
5. |
1. |
5. |
- |
7. |
- |
4. |
3. |
4. |
0.00 |
856.49 |
|
| 2018.08 | 57 |
20. |
22. |
45. |
35. |
22. |
- |
19. |
- |
17. |
23. |
15. |
0.00 |
493.08 |
|
| 2018.07 | 28 |
20. |
19. |
22. |
16. |
21. |
- |
13. |
- |
14. |
- |
- |
0.00 |
335.80 |
|
| 2017.08 | 64 |
56. |
19. |
64. |
38. |
- |
- |
- |
- |
23. |
- |
- |
-25.00 |
163.46 |
|
| 2017.07 | 62 |
17. |
10. |
49. |
7. |
7. |
- |
15. |
- |
4. |
20. |
- |
0.00 |
437.60 |
|
| 2016.07 | 106 |
73. |
60. |
65. |
50. |
- |
- |
- |
- |
- |
67. |
- |
0.00 |
164.20 |
|
| 2015.08 | 20 |
13. |
15. |
14. |
13. |
9. |
- |
12. |
- |
11. |
17. |
- |
0.00 |
319.60 |
|
| 2015.07 | 92 |
8. |
18. |
7. |
44. |
17. |
- |
17. |
- |
10. |
11. |
13. |
0.00 |
664.70 |
|
| 2014.08 | 74 |
16. |
25. |
32. |
20. |
30. |
- |
39. |
- |
22. |
20. |
5. |
0.00 |
540.21 |
|
| 2014.07 | 90 |
18. |
12. |
6. |
20. |
6. |
- |
19. |
- |
14. |
34. |
- |
0.00 |
407.70 |
|
| 2012.07 | 97 |
28. |
70. |
40. |
51. |
- |
- |
39. |
- |
29. |
20. |
20. |
-2.00 |
353.40 |
|
| 2009.07 | 78 |
51. |
40. |
6. |
33. |
36. |
- |
45. |
- |
44. |
- |
- |
0.00 |
254.50 |
|
| 2008.07 | 72 |
46. |
58. |
59. |
20. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
179.46 |
|
| 2007.07 | 69 |
51. |
55. |
56. |
34. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
151.52 |
|
| x 16 | |||||||||||||||
