Poliba Corse

University Politecnico di Bari
IT Bari PT short 145
team logo
LocationBari, Italy
Social Media YouTube facebook X
EV Team Poliba Corse
Short Linktid.fsg.one/148

Team Description

Poliba Corse is made of a group of students with the same passion in the automotive industry. We understand that any academic teaching would be sterile without a practical approach. This is the idea behind the adventure started back in 2006 by some guys of the Polytechnic of Bari. Poliba Corse can proudly count on more than 50 members, growing further in the academic years, and with satisfactions and defeats we kept this dream alive. As we know, the skills required are different and related to all the engineering fields, with only one purpose: Design and manufacturing of a vehicle, year after year, more and more efficient. The word "static" certainly does not belong to the vocabulary of the team: the challenge would otherwise be lost in departure. That's why Poliba Corse is synonymous of dynamism.


Event Profile

Past Events

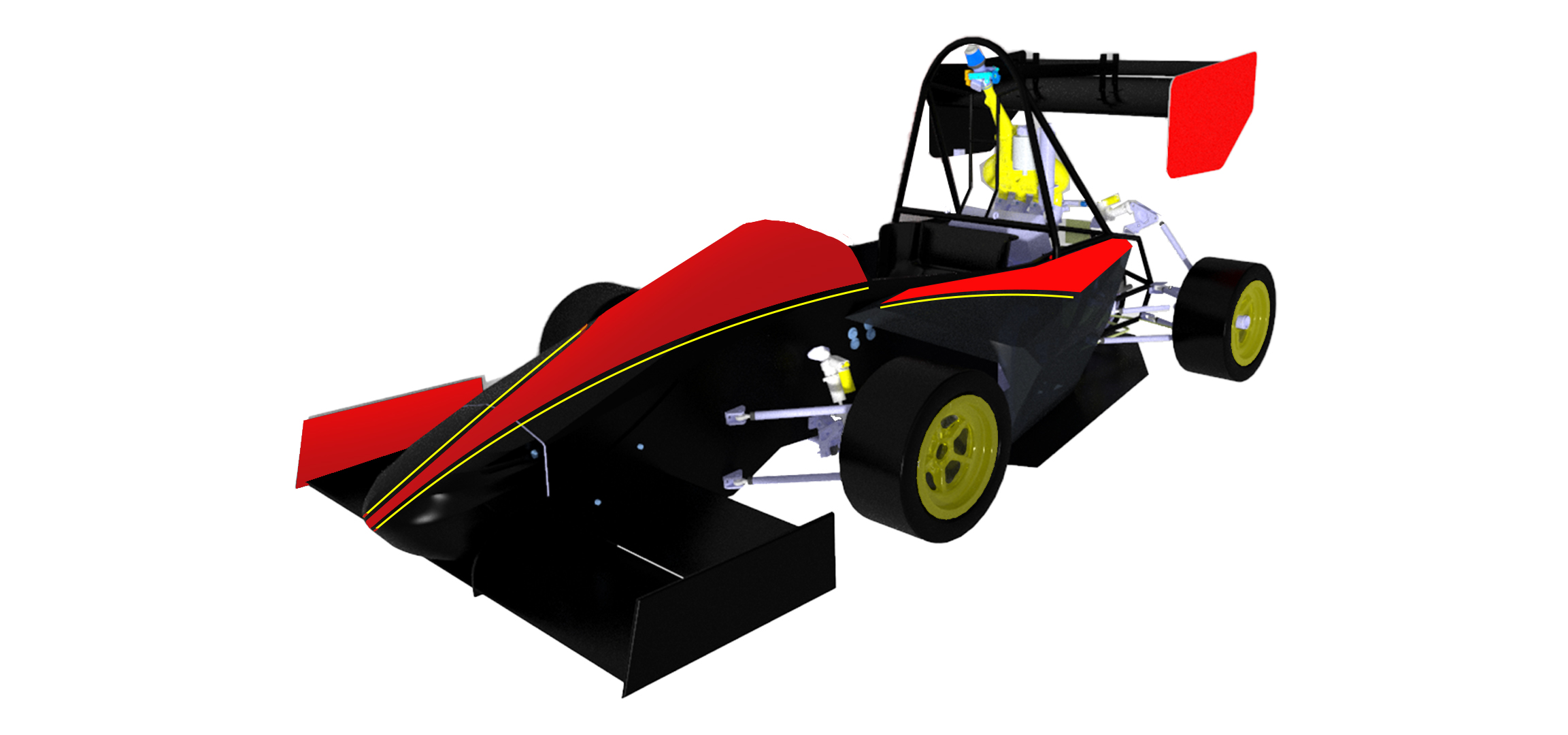

Car 221 – 2023
2023
Car #221
Info
We are Poliba Corse, the Formula Student team from the Polytechnic of Bari. We believe in the strength of our history and in the force of southern Italy, thus we’ve worked with our sponsors since 2006 to enhance our territory resources. Our mission is to pass on experience to student members, which is why the team is constantly evolving. Hundreds of meetings and hours of work made possible our rebranding and the construction of the PC7-Finale, the latest Poliba Corse car. See you on track!
Engineering Design Priorities:
Driveability Performance Reliability Stability Safety Efficiency
Car Specifications
General
Frame Construction Hybrid Structure: Front Composite Monocoque and Rear Tubular
Material Composite: Balsaflex Core and prepreg carbon fiber; Tubular frame: AISI 4130
Overall Length (mm) 2790
Overall Width (mm) 1440
Overall Height (mm) 1145
Wheelbase (mm) 1580
Track Front (mm) 1250
Track Rear (mm) 1230
Weight Front (kg) 152
Weight Rear (kg) 186
Suspension Double A-ARMS (upper and lower) with springs and dampers, pull(fr) & push(rr)-rod actuated
Tyres 407x166 R10 Avon Crossply Slick A94
Wheels 7.0x10.0, 22mm offset, 3pcd Mg / 7.0x10.0 , 22mm offset , 3pcd Mg
Drive Type 30mm x 15mm chain belt
Differential DREXLER clutch pack limited slip, 25 Nm preload
Cooling Water Pump, thermostatic valve, side pod mounted single radiator with fan
Brake System 4-Disk system, Floating, Stainless Steel, Hub mounted, 180 mm outer, adj. brake balance
Electronics ECU EFI Euro4, Logger AIM MXm with GPS, Bidirectional UDP streaming via WLAN
Powertrain
Engine Modified Honda 2004 CBR600RR PC-37E
Bore (mm) 67
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12,0:1
Fuel System Student design and built, phased
Fuel 98 octane unleaded gasoline
Max Power (kW) 11500
Max Torque (Nm) 9500

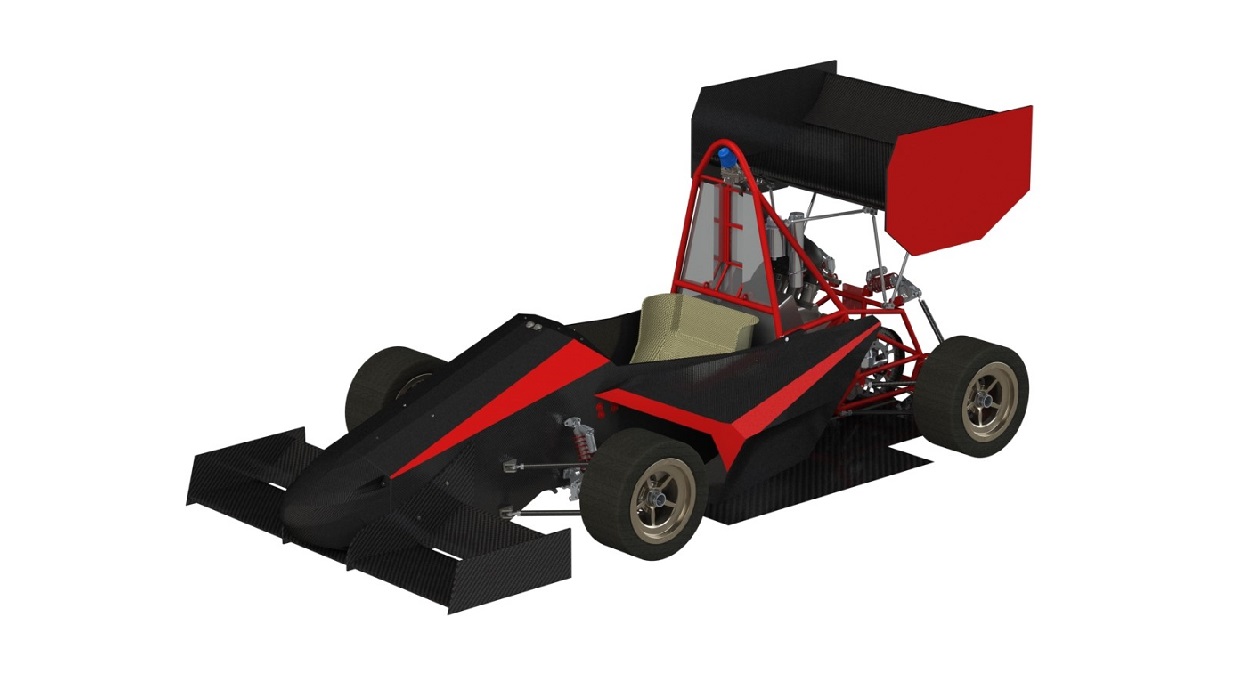

Car 299 – 2022
2022
Car #299
Info
We are Poliba Corse, the Formula Student team of the Polytechnic University of Bari, Italy. Since 2006, we have designed and built one-seater cars to compete for FSAE events all over Europe. Year after year, we always look for new technical solutions, facing budget and rules limitations. The introduction of the hybrid carbon-fibre/steel chassis was one of the latest upgrades. After overcoming many difficulties, we finally bounce back in this season. We look forward to meeting you in Hockenheim!
Engineering Design Priorities:
Continuous Evolution Innovation Precision & stability Improvement Progress Adrenaline
Car Specifications
General
Frame Construction Hybrid Structure: Front Composite Monocoque and Rear Tubular Steel
Material Composite Structure: Balsaflex Core and prepreg carbon fiber; Tubular frame: AISI 4130
Overall Length (mm) 2983
Overall Width (mm) 1440
Overall Height (mm) 1145
Wheelbase (mm) 1580
Track Front (mm) 1250
Track Rear (mm) 1230
Weight Front (kg) 123
Weight Rear (kg) 185
Suspension Double A-ARMS(upper and lower) with springs and dampers, pull-rod front and push-rod rear
Tyres 407x166 R10 , Avon Crossply Slick A94 / 407x166 R10 , Avon Crossply Slick A94
Wheels 7.0x10.0 , 22mm offset , 3pcd Mg / 7.0x10.0 , 22mm offset , 3pcd Mg
Drive Type 30mm x 15mm chain belt
Differential DREXLER clutch pack limited slip, 25 Nm preload
Cooling Water pump, thermostatic valve, side pod mounted single radiator with fan
Brake System 4-Disk system, self developed rotors with 180mm diameter, adjustable brake balance
Electronics Multifuctional Steering Wheel, datalogger, wiring PVC protection, Electroactuated Shifter
Powertrain
Engine Modified Honda 2004 CBR600 RR PC-37E
Bore (mm) 67
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12,0:1
Fuel System Student designed and built, phased
Fuel 95 octane unleaded gasoline
Max Power (kW) 11900
Max Torque (Nm) 9500

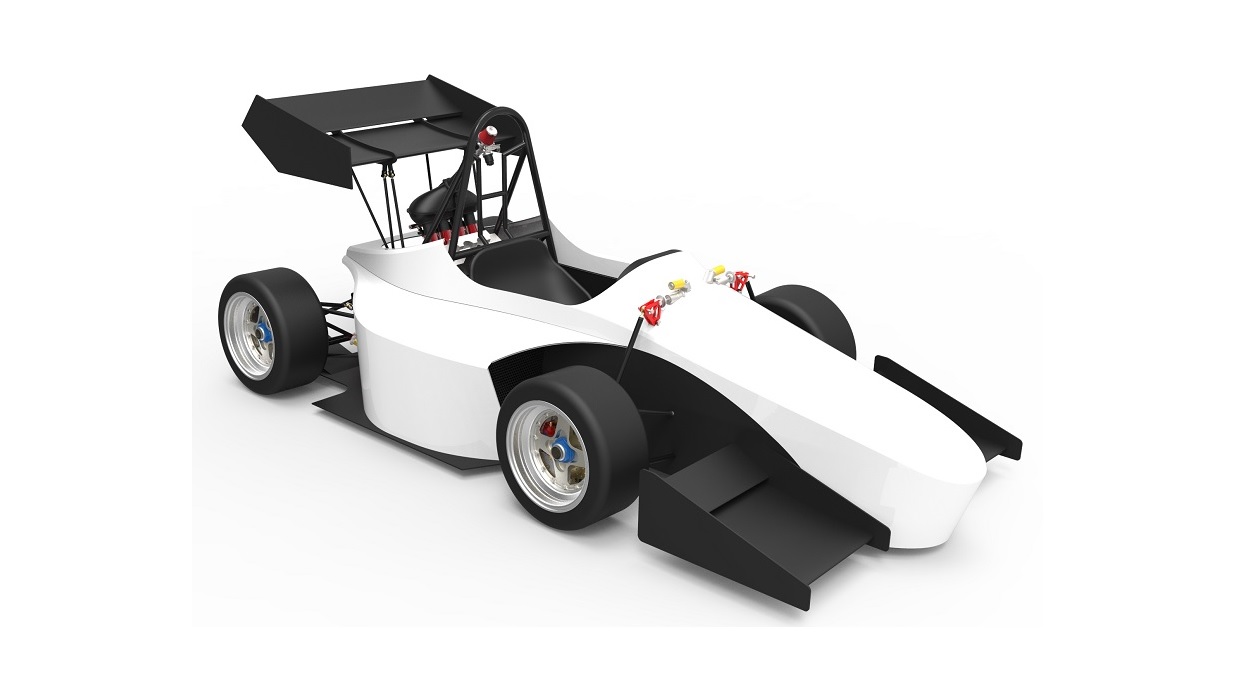

Car 287 – 2016
2016
Car #287
Info
We are a group of students moved by the same fiery passion and we understand that any teaching would be sterile if not been fulfilled. This is the idea behind the adventure started back in 2006 in Bari PT. The skills required, are very different and apply to all fields of engineering, with only one purpose: the construction of a vehicle, year after year, more efficient. The word "static" certainly does not belong to the vocabulary of the team: the challenge would otherwise be lost in departure.
Engineering Design Priorities:
Weight reduction Low fuel consumption Reliability Electronics improvement Aerodynamics
Car Specifications
General
Frame Construction Tubolar steel space frame
Material 25CrMo4 (AISI 4130)
Overall Length (mm) 3103
Overall Width (mm) 1480
Overall Height (mm) 1171
Wheelbase (mm) 1680
Track Front (mm) 1250
Track Rear (mm) 1230
Weight Front (kg) 43
Weight Rear (kg) 50
Suspension Double unequal A-Arms. Front: Push-rod crosswise oriented - Rear:Pull-rod longitudinally oriented
Tyres 180x510 R13 YGS Compound Bridgestone
Wheels 13"x8";0,25" offset;3 pc Mg-Al-rim
Drive Type Chain (520)
Differential Clutch pack limited slip, 35 Nm preload, 4 bias ratio
Cooling Left sided pod-mounted radiator with thermostatic controlled 643 cfm electric fan
Brake System 4 disk Floating, Tempered stainless steel, hub mounted 218mm.Tilton balance bar.AP Racing calipers
Electronics Student made telemetry, datalogger, gps tracking, 7" TFT color display multifunctional dig dashboard
Powertrain
Engine Honda CBR 600 F4i Sport 2002
Bore (mm) 67.0
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 13:1
Fuel System Student des/built ,fuel injection, sequential
Fuel 98 octane unleaded gasoline
Max Power (kW) 12500
Max Torque (Nm) 9000

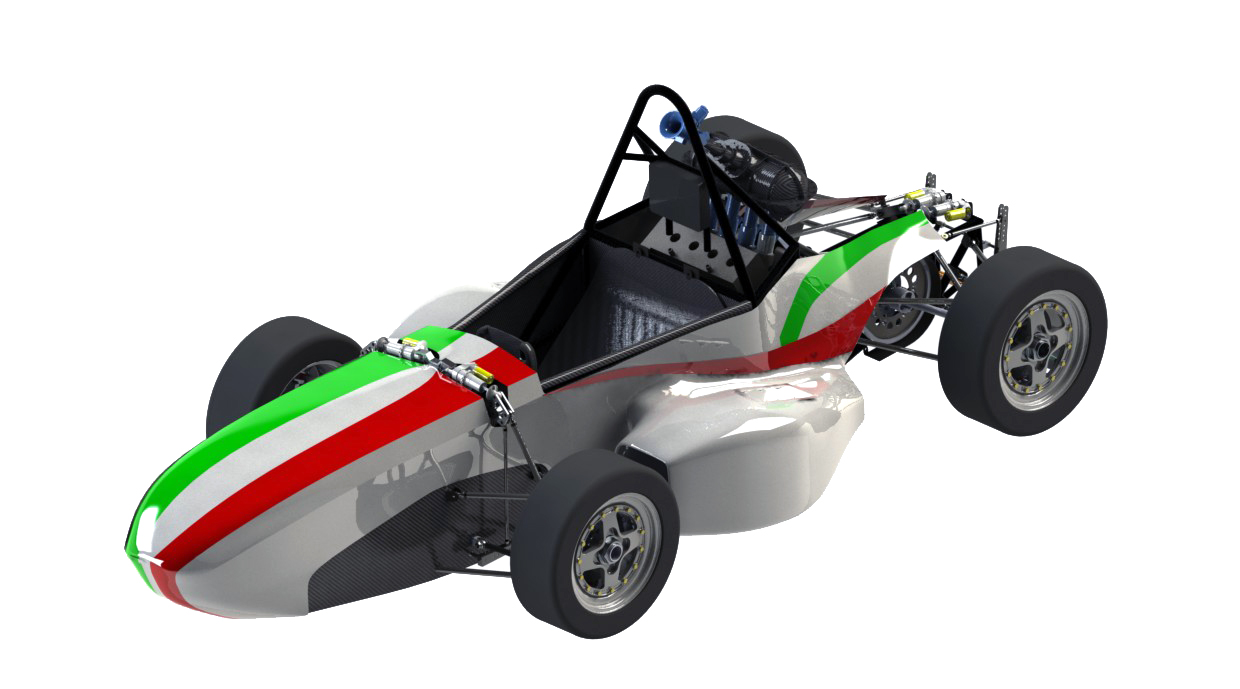

Car 55 – 2013
2013
Car #55
Info
We are a group of students moved by the same fiery passion and we understand that any teaching would besterile if he had not been fulfilled. This is the idea behind the adventure started back in 2006 by some guys of the Polytechnic of Bari. Coming aware of the Formula SAE, they decided to encountering the same. Thus was born the Poliba Corse. In the coming years, the team has been able to count on the support of fifteen members, growing further in the academic year just past, and with satisfactions and defeats we kept this dream alive. The skills required, as we understand, are very different and apply to all fields of engineering, with only one purpose: the construction of a vehicle, year after year, more and more efficient. The word "static" certainly does not belong to the vocabulary of the team: the challenge would otherwise be lost in departure. That's why the project PolibaCorse is synonymous of dynamism: the evolution is the fundamental step to make it better.
Car Specifications
General
Frame Construction Tubolar space frame
Material 25CrMo4
Overall Length (mm) 3130
Overall Width (mm) 1495
Overall Height (mm) 1130
Wheelbase (mm) 1680
Track Front (mm) 1250
Track Rear (mm) 1230
Weight Front (kg) 145
Weight Rear (kg) 158
Suspension Double unequal length A-Arm.Push rod actuated longitudinally oriented spring and damper.
Tyres 180x510 R13, Bridgestone YGS
Wheels 13"x8"; 0.25" positive offset; 3 pc Mg-Al Rim centerlock
Drive Type 15.87 mm x 6.35 mm non sealed chain
Differential clutch pack limited slip, 35 Nm preload, 4 bias ratio
Cooling left sided pod-mounted radiator with thermostatic controlled electric fan
Brake System Brembo floating disc, tempered stainless steel, hub mounted, 218mm diam. 4 pistons x 1" dia. Caliper
Electronics Multifunctional Steering Wheel, Electropneumatic Shifting System, Student made datalogger &Telemetry
Powertrain
Engine Honda CBR 600 F4i Sport 2001
Bore (mm) 67.0
Stroke (mm) 42.5
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12:1
Fuel System EFI Technology EURO2 with sequential injection
Fuel 98 octane unleaded gasoline
Max Power (kW) 9800
Max Torque (Nm) 8000

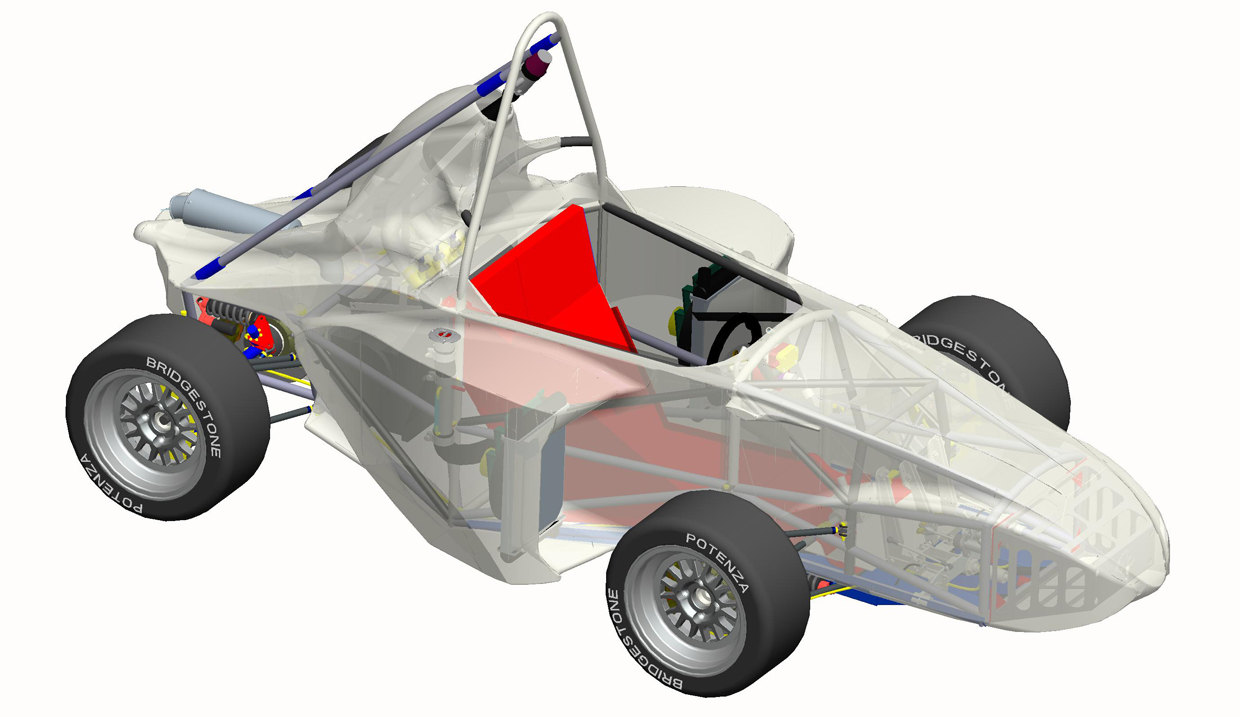

Car 36 – 2008
2008
Car #36
Info
Poliba Corse, team of the Politecnico di Bari (a University in the south of Italy), presents for the first time its car at the FSG 2008. In 2006 Poliba Corse participated at the Formula SAE Italy in Class 3, presenting the design of the car only. In that competition the team wins the third place.Since this is the first experience with a real prototype in a Formula Student competition, the team, first of all, chooses simple and feasible technical solutions without forgetting however other important objects like: car performances, in term of engine power supply, handling and brake; ergonomics; easy maintenance; the using of fine quality components; aesthetic appeal. The team thanks its main partners for the contribute to the success of the project: Provincia di Bari; Comune di Bari; Pennelli Veicoli Speciali; Bridgestone; TAF Pneumatici; OMP; INA FAG; Tarox; EFI Technology; Magneti Marelli; Allegri. More information on the website www.polibacorse.it
Car Specifications
General
Frame Construction Tubular space frame
Material Fe360 NBK steel round tubing 22mm to 25mm dia / 1,5mm to 3mm thickness
Overall Length (mm) 3000
Overall Width (mm) 1490
Overall Height (mm) 1370
Wheelbase (mm) 1625
Track Front (mm) 1270
Track Rear (mm) 1200
Weight Front (kg) 197
Weight Rear (kg) 213
Suspension Double unequal length A-Arm. Pull-rod actuated (front) push-rod actuated (rear), horizontally oriented spring and damper. Adjustable in compression and in rebound range.
Tyres 180x46 R13 Bridgestone Potenza YGS / 180x46 R13 Bridgestone Potenza YGS
Wheels 8.0x13, 2.6mm offset, 3 pc Al-Mg Rim / 8.0x13, 2.6mm offset, 3 pc Al-Mg Rim
Drive Type roller chain (525)
Differential N/A
Cooling Two side mounted 1000 cc radiators with two 200mm electric fans
Brake System 3-Disk system, with two 250mm diameter front and one 260mm rear rotors, 6 pistons Ergal calipers, adjustable brake balance
Electronics Programmable injection/ignition system (ECU)
Powertrain
Engine Modified Honda CB600F5 Hornet
Bore (mm) 65.0
Stroke (mm) 45.2
Cylinders 4
Displacement (ccm) 599
Compression Ratio 12:1
Fuel System Semi-sequential fuel injection and wasted-spark ignition, returnless fuel pump.
Fuel 98 octane unleaded gasoline
Max Power (kW) 12000
Max Torque (Nm) 8000

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2023.08
27
24.
14.
16.
27.
-
-
-
-
-
-
-
0.00
132.18
2023.07
21
18.
12.
19.
20.
-
-
-
-
-
-
-
0.00
88.50
2023.07
22
9.
9.
9.
6.
-
-
-
-
-
-
-
0.00
211.25
2022.08
26
22.
11.
22.
24.
-
-
-
-
-
-
-
0.00
140.07
2022.07
24
19.
8.
16.
20.
-
-
-
-
-
-
-
0.00
142.57
2021.10
17
17.
17.
-
-
-
-
-
-
-
-
-
0.00
1.60
2017.07
43
34.
28.
9.
38.
-
-
-
-
-
-
-
0.00
160.27
2016.08
73
72.
73.
51.
73.
-
-
-
-
-
-
-
-5.00
83.94
2015.09
43
31.
41.
2.
15.
21.
-
26.
-
32.
16.
-
0.00
295.20
2013.09
42
29.
24.
14.
26.
20.
-
23.
-
29.
26.
-
0.00
228.90
2013.08
74
73.
70.
73.
72.
-
-
-
-
-
-
-
0.00
74.40
2011.09
49
40.
35.
20.
37.
-
-
-
-
-
37.
-
0.00
198.00
2008.08
77
61.
38.
48.
44.
-
-
-
-
54.
-
-
0.00
196.83
