Team Details

BME Motorsport

University Budapest University of Technology and Economics
HU Budapest TU short 139
team logo
LocationBudapest, Hungary
Homepagehttps://www.bmemotorsport.com/
Social Media
DV Team BME FRT Driverless
EV Team BME Formula Racing Team (FSE)
Short Linktid.fsg.one/142

Team Description

-


Past Events

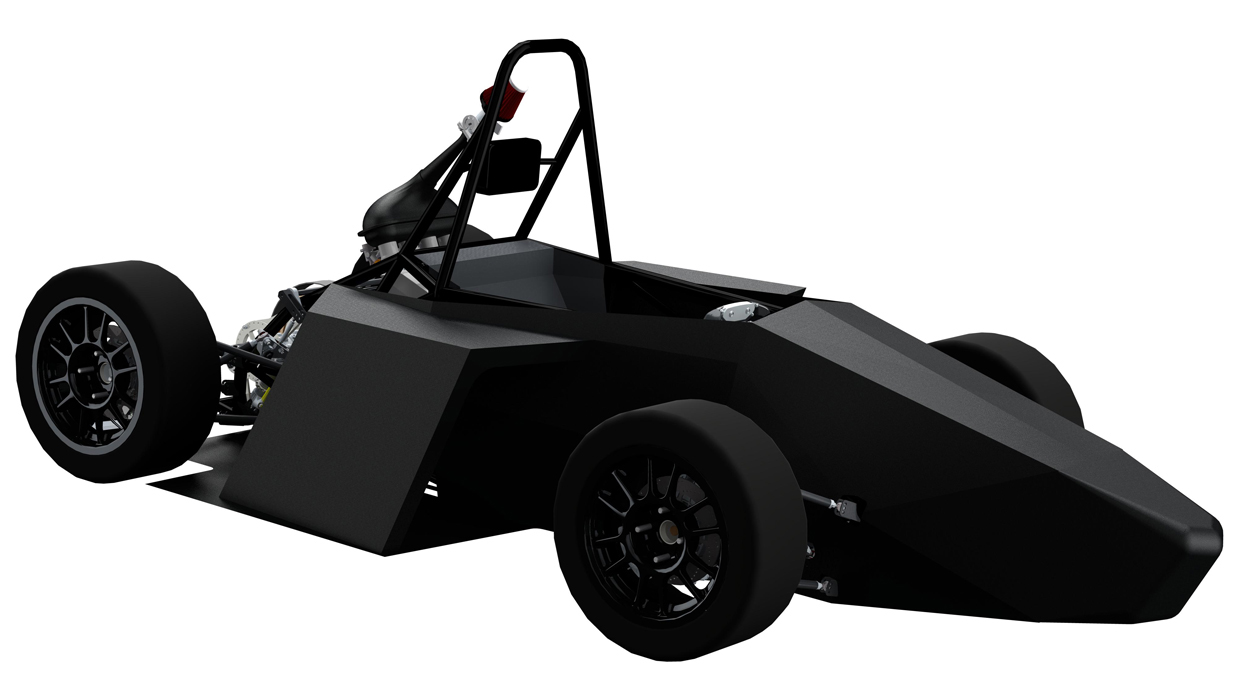

2012
Car #40
Info
6x
The BME Formula Racing Team was founded in 2008 at the TU Budapest. During our 5 years of existence we have built 5 gasoline and 2 electric powered racecars and more than 180 people have taken part in designing, procurement, production, building and have dealt with management, logistics and business affairs. Based on these experiences, the continuous development and testing of the past years we believe our team has grown up to the top teams. We have built and tuned a very fast racecar during testing so our target is to finish in the Top 10. The main objective of the design was to build a car that best fits the needs of a weekend car racer: be simple, ergonomic, easily maintainable and repairable, adjustable in many ways, beautiful in every single part from engineering aspects and be the fastest on track of course! Feel free to visit us in our pit garage to see and touch our racecar. We are happy to answer your questions!
Car Specifications
General
Frame Construction Steel tubular space frame
Material S 235 JR structural steel
Overall L 2731 mm
Overall W 1421 mm
Overall H 1085 mm
Wheelbase 1600 mm
Track (Fr) 1200 mm
Track (Rr) 1150 mm
Weight with 68kg driver (Fr) 140 kg
Weight with 68kg driver (Rr) 143 kg
Suspension Double unequal length A-arm, pullrod/pushrod actuated
Tyres (Fr / Rr) Hoosier 20.5 x 7.0-13 / 20.5 x 7.0-13
Wheels (Fr / Rr) Lightweight alloy 13 x 7 / 13 x 7, ET 22
Drive Type Chain
Differential Drexler LSD
Cooling 1 side radiator with EWP
Brake System F:4 piston calipers, R:2 piston calipers with proportioning valve, student designed rotors
Electronics 2D data logger, student designed: PDM, display, driver-communication system, CAN-Wi-Fi module
Powertrain
Engine 2005 Yamaha R6 5SL
Bore 65.5 mm
Stroke 44.5 mm
Cylinders 4
Displacement 599 ccm
Compression Ratio 13.5:1 : 1
Fuel System Multi-point fuel injection, swirl tank
Fuel ROZ 100
Max Power Design 11000 rpm
Max Torque Design 9000 rpm

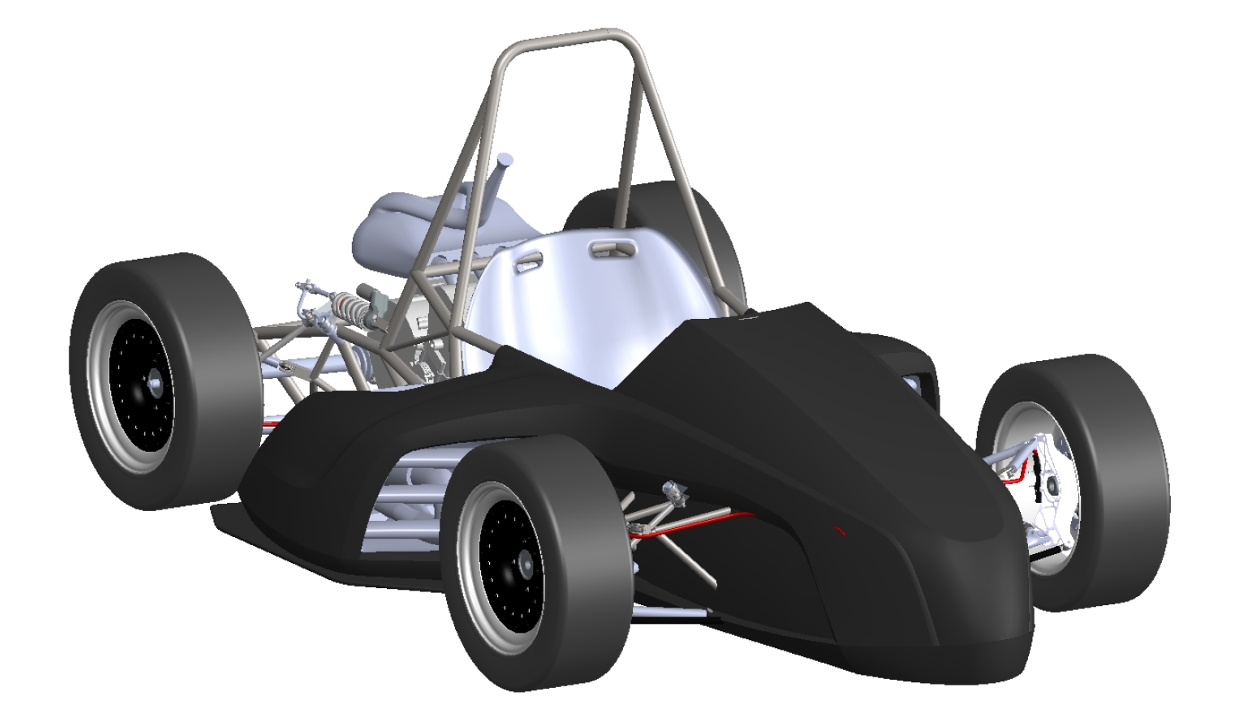

Car 21 – 2009
2009
Car #21
Info
BME Formula Racing TeamBudapest University of Technology and EconomicsThe BME Formula Racing Team is a second year competitor in 2009. Due to our last year experiences we defined higher requirements to the car and the team’s performance too. The main goals were to increase the technical parameters in more ways and to get better prepared for the static events. We would like to achieve better performance on the racetrack and keep the car’s reliability, because we have to finish first if we would like to win. Our new car has more sophisticated technical solutions thanks to the more deliberate and careful design. Most of the team members remained with us, but we have some newcomers too. So the konowledge does not disappear, the new members can learn a lot from the experienced ones. We hope that we can achieve our aims and we can show a memorable performance in Hockenheim!
Car Specifications
General
Frame Construction welded tubular frame
Material St 35 mild steel
Overall L 2400 mm
Overall W 1380 mm
Overall H 1055 mm
Wheelbase 1600 mm
Track (Fr) 1200 mm
Track (Rr) 1080 mm
Weight with 68kg driver (Fr) 159 kg
Weight with 68kg driver (Rr) 159 kg
Suspension Double unequal length A-arms, push rods
Tyres (Fr / Rr) 13”, Hoosier R25B
Wheels (Fr / Rr) Keizer Magnesium 7x13"
Drive Type Chain #520
Differential Quaife ATB Helical LSD
Cooling Yamaha R6 radiator mounted to sidepod
Brake System 4-Disk system, floating rotors with 200 mm diameter
Electronics Student designed data acquisition system
Powertrain
Engine 2005 Yamaha R6
Bore 65.5 mm
Stroke 44.5 mm
Cylinders 4
Displacement 600 ccm
Compression Ratio 12.4:1 : 1
Fuel System Yamaha fuel injection system using Whistler ECU
Fuel 100 octane petrol
Max Power Design 10000 rpm
Max Torque Design 7000 rpm

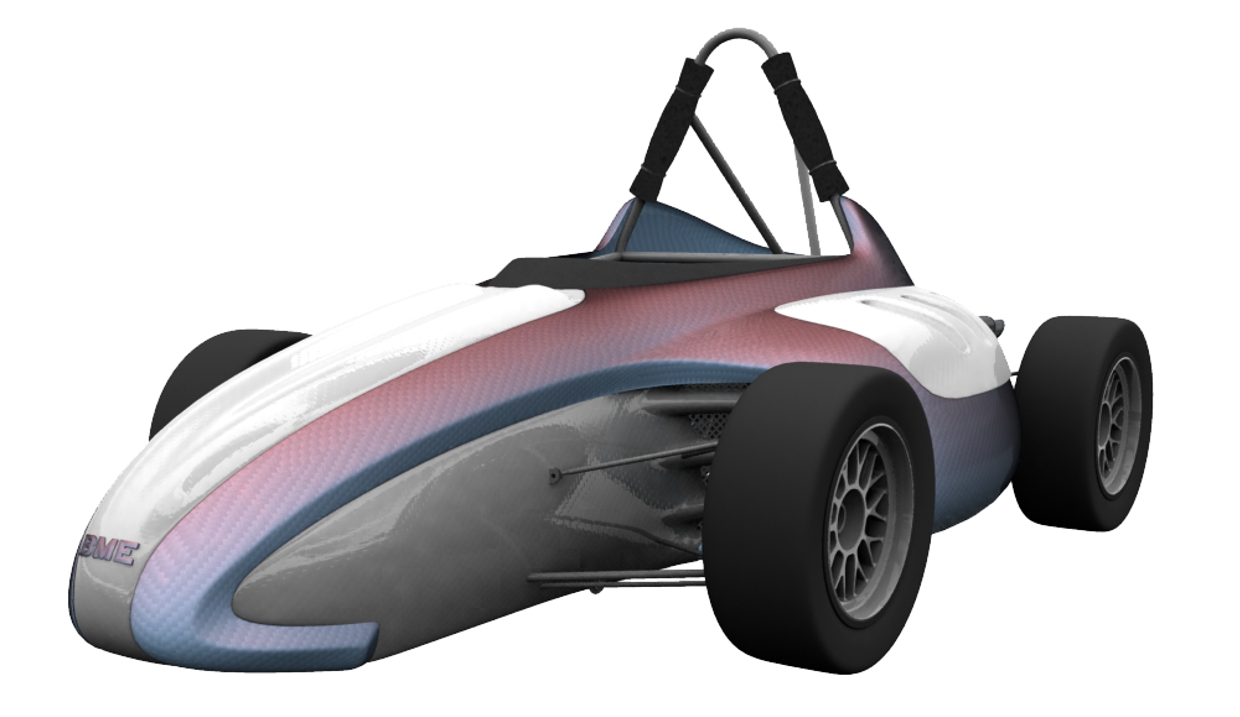

Car 26 – 2008
2008
Car #26
Info
21x
BME Formula Racing TeamBudapest University of Technology and EconomicsThe BME Formula Racing Team is a first year competitor and the first team from Hungary. Our team worked hard in the last year to reach the goal: entering for the Formula Student Germany in 2008. We had no experience in designing racecars, and had no reference from the previous car so it was a great challenge to design and build it. This needed a lot of learning, reading books and developing our theoretical and practical knowledge. The car was manufactured completely by the team members with help from the university that provides the workshop and some tools. Our main sponsors - Thyssenkrupp, Knorr-Bremse, EJJT and Department of Automobile Engineering - gave us financial support without this our car could not be finished. We would like to perform well on our first race and we do everything that we can for this aim.
Car Specifications
General
Frame Construction Welded tubular frame
Material St 35 mild steel
Overall L 2660 mm
Overall W 1330 mm
Overall H 1150 mm
Wheelbase 1644 mm
Track (Fr) 1180 mm
Track (Rr) 1068 mm
Weight with 68kg driver (Fr) 138 kg
Weight with 68kg driver (Rr) 164 kg
Suspension Double unequal length A-arms, push rods
Tyres (Fr / Rr) Bridgestone 175/50 R13
Wheels (Fr / Rr) Aluminum 6x13"
Drive Type Chain #520
Differential Audi A6 central torsen differential
Cooling Yamaha R6 radiator mounted is sidepod
Brake System 4-Disk system, floating rotors with 220 mm diameter
Electronics Student designed data acquisition system
Powertrain
Engine 2005 Yamaha R6
Bore 65.5 mm
Stroke 44.5 mm
Cylinders 4
Displacement 600 ccm
Compression Ratio 12.4:1 : 1
Fuel System Yamaha fuel injection system using Whistler ECU
Fuel 98 octane unleaded gasoline
Max Power Design 11500 rpm
Max Torque Design 9500 rpm

FS past achievements due to World Ranking Data Base

Date Event Teams Rank BP CM ED SP DV SP AC DV AC AX EN EF Pe Total
2026.07
FS AT
17
3.
4.
2.
2.
4.
-
2.
-
4.
4.
3.
0.00
713.00
2026.07
FS CZ
15
1.
1.
7.
1.
1.
-
2.
-
1.
1.
1.
0.00
980.12
2025.08
FS PL
8
3.
1.
2.
1.
3.
-
2.
-
4.
-
-
0.00
516.91
2025.08
FS AA
21
9.
6.
3.
1.
7.
-
3.
-
9.
-
-
0.00
458.62
2025.08
FS CZ
15
4.
8.
1.
1.
7.
-
4.
-
7.
-
-
0.00
512.45
2024.08
FS AA
16
3.
4.
6.
1.
4.
-
3.
-
5.
5.
3.
0.00
783.20
2024.08
FS CZ
14
4.
7.
2.
2.
3.
-
2.
-
1.
-
-
0.00
547.23
2024.07
FS AT
20
9.
11.
4.
9.
7.
-
6.
-
6.
-
-
0.00
393.70
2023.08
FS AA
11
7.
8.
3.
3.
3.
-
11.
-
6.
-
-
-20.00
453.90
2023.08
FS CZ
15
5.
10.
3.
3.
1.
-
5.
-
4.
-
-
0.00
461.70
2023.08
FS East
18
9.
7.
7.
4.
-
-
5.
-
6.
-
-
-10.00
367.90
2022.08
FS AA
14
3.
2.
7.
3.
5.
-
9.
-
5.
4.
1.
0.00
749.50
2022.08
FS East
19
9.
7.
5.
6.
6.
-
9.
-
7.
-
-
0.00
416.15
2022.07
FS CZ
18
2.
12.
4.
1.
2.
-
5.
-
3.
2.
3.
0.00
848.32
2021.08
FS East
23
12.
7.
12.
13.
6.
-
11.
-
7.
-
-
0.00
413.41
2021.08
FS CZ
19
4.
2.
2.
15.
2.
-
9.
-
8.
5.
2.
0.00
705.01
2021.07
FS NL
26
15.
9.
23.
11.
13.
-
11.
-
14.
-
-
-5.00
269.07
2019.08
FS CZ
33
27.
6.
26.
20.
26.
-
22.
-
23.
-
-
0.00
260.45
2019.07
FS East
25
25.
16.
25.
25.
17.
-
-
-
16.
-
-
0.00
143.32
2019.07
FS NL
28
17.
17.
17.
16.
-
-
16.
-
-
-
-
0.00
179.31
2012.08
FS HU
39
7.
3.
18.
7.
16.
-
1.
-
1.
13.
11.
0.00
744.00
2012.08
FS DE
76
17.
8.
12.
10.
12.
-
14.
-
19.
21.
27.
0.00
669.19
2011.08
FS HU
28
6.
11.
5.
8.
16.
-
19.
-
3.
3.
9.
0.00
835.88
2011.07
FS UK
77
29.
11.
20.
45.
14.
-
26.
-
9.
38.
-
0.00
366.50
2010.07
FS UK
72
20.
16.
50.
15.
34.
-
20.
-
31.
16.
11.
-43.00
513.70
2009.08
FS DE
77
58.
46.
66.
59.
38.
-
44.
-
47.
-
17.
-80.00
235.89
2008.09
FSAE IT
31
16.
9.
22.
25.
20.
-
16.
-
22.
12.
-
0.00
375.10
2008.08
FS DE
77
49.
52.
49.
44.
45.
-
37.
-
41.
-
-
0.00
288.61
x 28
