Team Details
Orion Racing India
| University | K. J. Somaiya College of Engineering
IN Mumbai Somaiya short 104 |
 |
|---|---|---|
| Location | Mumbai, India | |
| Social Media | ||
| DV Team | Orion Racing India | |
| EV Team | Orion Racing India | |
| Short Link | tid.fsg.one/107 | |
Team Description
In 2006, a bunch of amateur yet ambitious engineering students from K. J. Somaiya College of Engineering, driven by the will to break the shackles of an orthodox education system rolled up their sleeves and took to the workshop with passion in their hearts, tools in their hands and a battered auto rickshaw engine. Thus, Orion Racing India was born, a student initiative which has today become a craze among budding automobile enthusiasts and a force to be reckoned with amongst its competitors.
Past Events

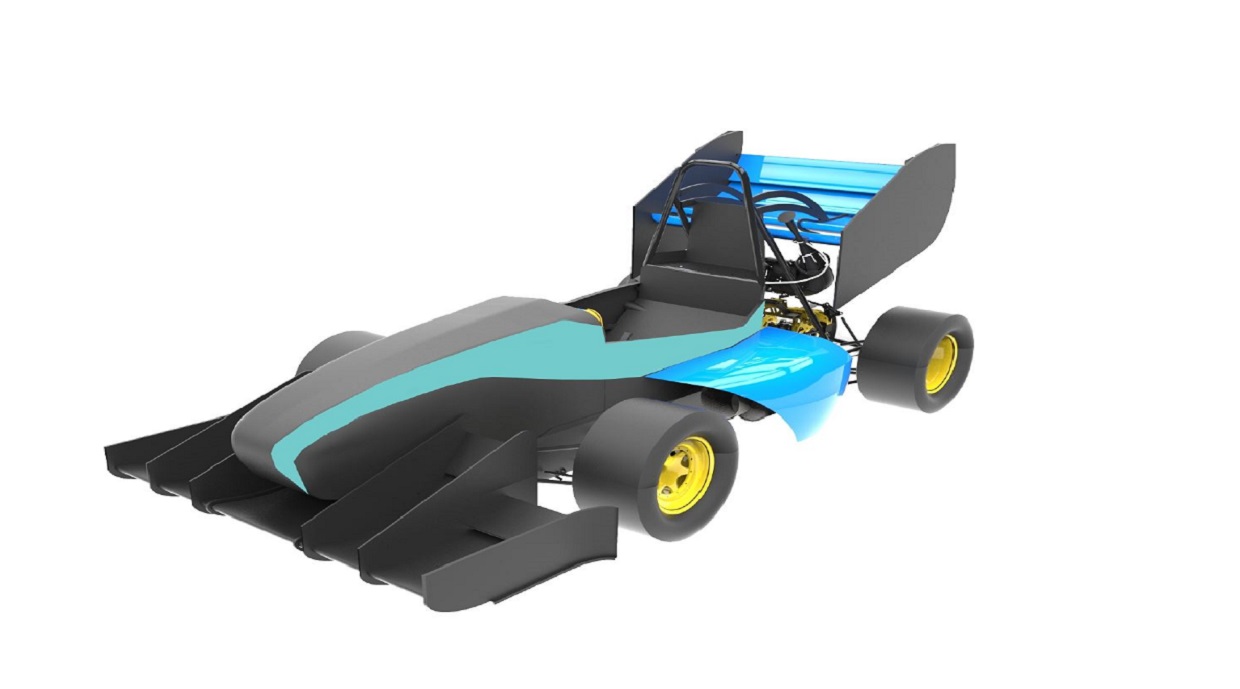

2017
Info
40x
This year we enter the competition with the ORI'17. Equipped with a full aerodynamic package, a 650cc engine, and agile vehicle dynamics, which plants every bit of power to the ground, the ORI'17 is fully equipped to roar on the FSG track.The aim of the design, this year was to have just enough complexities in the car to execute better lap times, but to keep the car concept as simple as possible. DRS, variable brake bias system, and shift without lift were implemented successfully on the car.
Engineering Design Priorities:
garamenginedhakkalaga
twin2win
shiftwithoutlift
wecanfly
havegfprefercf
Car Specifications
General
| Frame Construction | Full Tubular Space Frame |
|---|---|
| Material | DIN 2391-st52 Cold Rolled round steel tubing |
| Overall L | 2879 mm |
| Overall W | 1357 mm |
| Overall H | 1150 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1200 mm |
| Track (Rr) | 1150 mm |
| Weight with 68kg driver (Fr) | 127 kg |
| Weight with 68kg driver (Rr) | 149 kg |
| Suspension | Double unequal length A-Arm.Pull Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 150x45 B10, Hoosier R25B / 150x45 B10, Hoosier R25B |
| Wheels (Fr / Rr) | 7x10, 20mm offset, 3 piece Al rim / 7x10, 27mm offset, 3 piece Al rim |
| Drive Type | Chain Drive |
| Differential | clutch pack limited slip |
| Cooling | Sidepod Mounted Radiator with electric fan |
| Brake System | 4-Disk System with adjustable brake balance |
| Electronics | Multi Purpose steering wheel, Solenoid Shifting system |
Powertrain
| Engine | 2011 Kawasaki Ninja 650 R |
|---|---|
| Bore | 83mm mm |
| Stroke | 60mm mm |
| Cylinders | 2 |
| Displacement | 650 ccm |
| Compression Ratio | 11.3:1 : 1 |
| Fuel System | Kawasaki Stock Fuel System |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 9000 rpm |
| Max Torque Design | 6750 rpm |

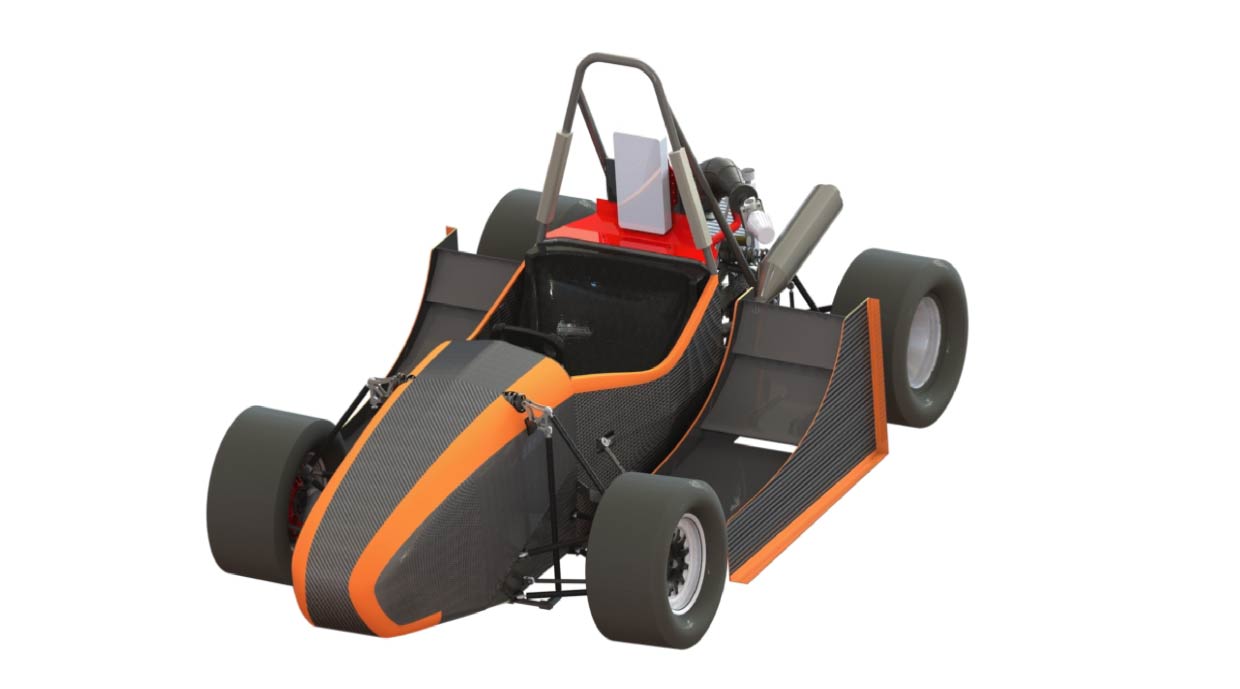

2016
Info
64x
Ever since its inception in 2006, the Orion Racing team has grown significantly in organisation and structure with the increasing international exposure. This year the team’s focus was to enhance car performance by opening new avenues for simplifying system design and understanding overall man-machine interaction. Adhering to this, the team opted for a single-cylinder engine and a 10-inch wheel package and thus intends to realize its goal which is to complete and compete.
Engineering Design Priorities:
SimplerDesign
SingleCylinder
10InchWheels
LighterIsSexy
Car Specifications
General
| Frame Construction | Tubular Spaceframe structure |
|---|---|
| Material | Cold rolled steel |
| Overall L | 2615 mm |
| Overall W | 1500 mm |
| Overall H | 1165 mm |
| Wheelbase | 1550 mm |
| Track (Fr) | 1246 mm |
| Track (Rr) | 1150 mm |
| Weight with 68kg driver (Fr) | 127 kg |
| Weight with 68kg driver (Rr) | 127 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper |
| Tyres (Fr / Rr) | 150x45 D10 Hoosier R25B / 150x45 D10 Hoosier R25B |
| Wheels (Fr / Rr) | 7x10, 20mm offset, 3 piece Al rim / 7x10, 27mm offset, 3 piece Al rim |
| Drive Type | chain drive |
| Differential | clutch pack limited slip with internal preload adjustment |
| Cooling | Rear mounted single core, single pass radiator with PWM electric fan |
| Brake System | 4-point floating disc system, adjustable pedal box & brake balance, 180mm rotors, fixed calipers |
| Electronics | Onboard data logging via motec M400 |
Powertrain
| Engine | KTM Duke 390 |
|---|---|
| Bore | 89mm mm |
| Stroke | 60mm mm |
| Cylinders | 1 |
| Displacement | 373 ccm |
| Compression Ratio | 12,8:1 : 1 |
| Fuel System | Bajaj stock fuel rail, Electronic fuel injection, sequential |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 8500 rpm |
| Max Torque Design | 6500 rpm |

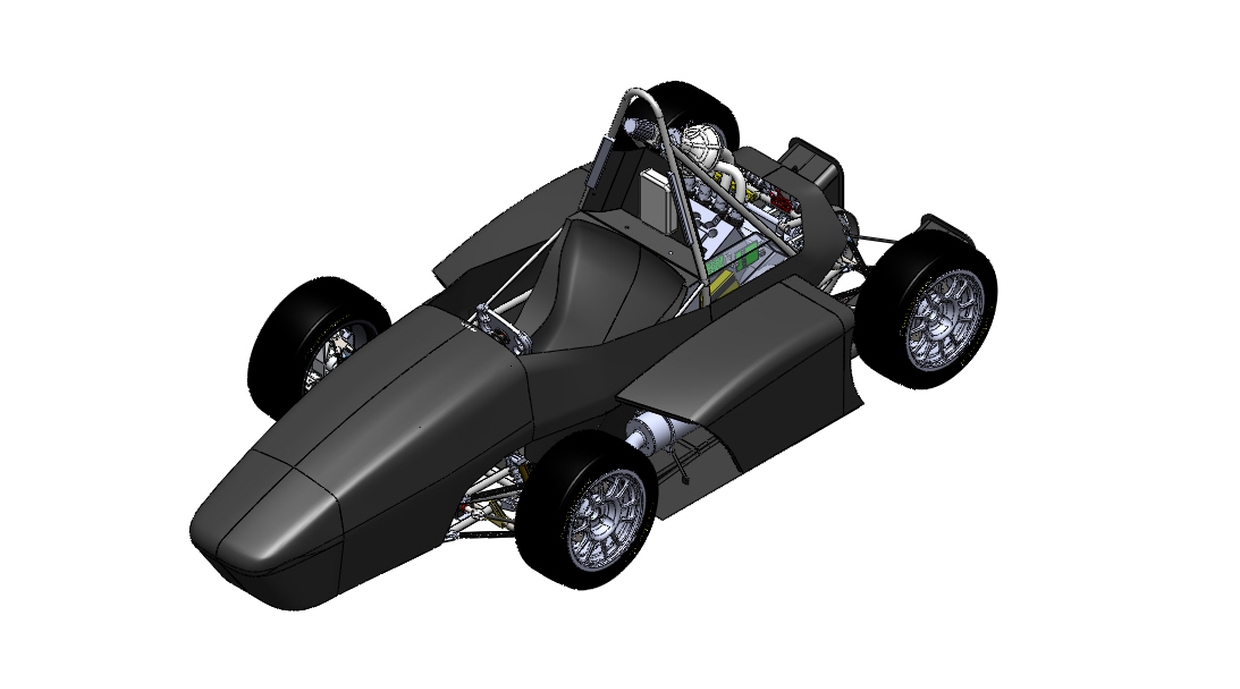

2014
Info
6x
Ever since its inception in 2006, the Orion Racing team has grown significantly in organisation and structure with the increasing international exposure. This year, the team decided to focus more on refinement and evaluation of their subsystems. With early design phases, the team has focused a lot on the testing with the aim of acquiring maximum data and refined tuning. Several new features include rpm shift lights, carbon fibre A-arms, chain tensioning, adjustable pedal box and the under-tray.
Engineering Design Priorities:
ordered by priority
Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | DIN 2391 St 52 |
| Overall L | 3065 mm |
| Overall W | 1442 mm |
| Overall H | 1178 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1222 mm |
| Track (Rr) | 1220 mm |
| Weight with 68kg driver (Fr) | 145 kg |
| Weight with 68kg driver (Rr) | 155 kg |
| Suspension | Double unequal A-arm , pull rod actuated front , push rod actuated rear |
| Tyres (Fr / Rr) | 205x510 R13 Continental 34M Front and rear |
| Wheels (Fr / Rr) | 7 x 13 , 22mm offset , 1 pc Aluminium alloy rims Front and rear |
| Drive Type | Chain Drive |
| Differential | Clutch pack Limited Slip Differential, 30 Nm preload, 1.5 bias ratio |
| Cooling | Chassis mounted ,single radiator operated by electric fan and water pump, Side pod integrated duct |
| Brake System | 4-disk system , 4- piston Wilwood calipers and Ap racing spherical bearing mounted master cylinders |
| Electronics | Onboard data logging via motec M400 ,UDP basd telemetry system via Wlan , Gear position sensor |
Powertrain
| Engine | Honda CBR 600cc f4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | Honda stock fuel rail ,Electronic fuel injection , sequential |
| Fuel | 95 octane unleaded gasoline |
| Max Power Design | 12000 rpm |
| Max Torque Design | 8500 rpm |

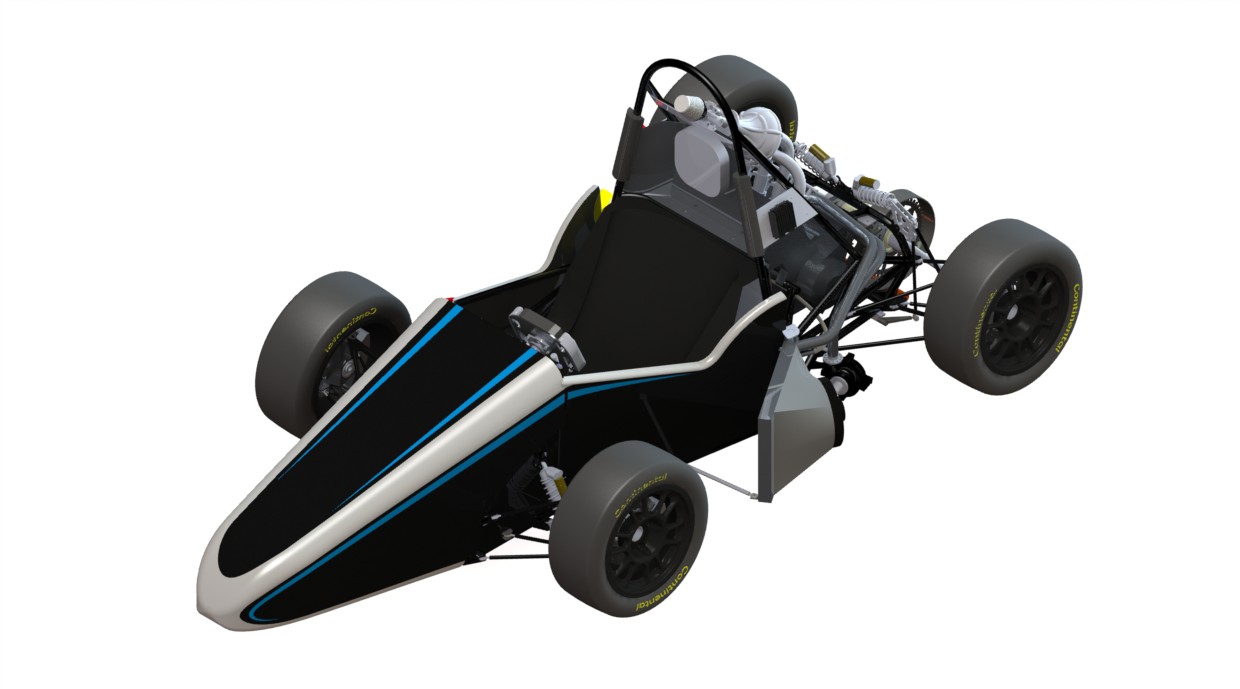

2013
Info
21x
Orion Racing India was kick started in 2006 by a group of ambitious engineering students from K. J. Somaiya College of Engineering. They aimed to rise above the confines of a suffocating education system by arming themselves with the practical knowledge of their everyday studies. Seven years since its inception, team Orion Racing India has grown significantly in size, improved its organization & structure and gained a lot of experience through international exposure.This year the project timeline was revised in order to reduce the time spent on design & manufacturing and increase the time spent on vehicle testing. The increased focus on testing is aimed at ensuring reliability and extensive use of sensors. The ORI-13 boasts several new features such as student built live telemetry, pull rod front suspension system, ergonomic driver interface with led rpm shift lights with a performance tuned engine and the eccentric chain tensioning mechanism providing finest adjustability.
Car Specifications
General
| Frame Construction | Tubular Spaceframe |
|---|---|
| Material | DIN 2391 St 52 |
| Overall L | 2970 mm |
| Overall W | 1423 mm |
| Overall H | 1185 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1220 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 140 kg |
| Weight with 68kg driver (Rr) | 170 kg |
| Suspension | Double unequal length A-arm. Pull rod actuated Front, Push Rod Actuated Rear |
| Tyres (Fr / Rr) | 205x510 R13 Continental 34M Front and Rear |
| Wheels (Fr / Rr) | 7x13, 22mm offset, 1 pc Al Rim Front and Rear |
| Drive Type | Chain Drive |
| Differential | Clutch pack Limited Slip Differential, 30Nm preload, 1.5 bias ratio |
| Cooling | Chassis mounted, side pod enclosed single radiator with electric waterpump and fan |
| Brake System | 4-disk system, 4-piston Wilwood calipers and AP Racing spherical bearing mounted master cylinders |
| Electronics | Self designed data logger and telemetry system, Paddle-shifting, MoTeC M400 ECU |
Powertrain
| Engine | 2006 Honda CBR 600 F4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | Honda stock fuel rail, Electronic fuel injection, sequential |
| Fuel | 98 octane unleaded gasoline |
| Max Power Design | 12000 rpm |
| Max Torque Design | 8500 rpm |

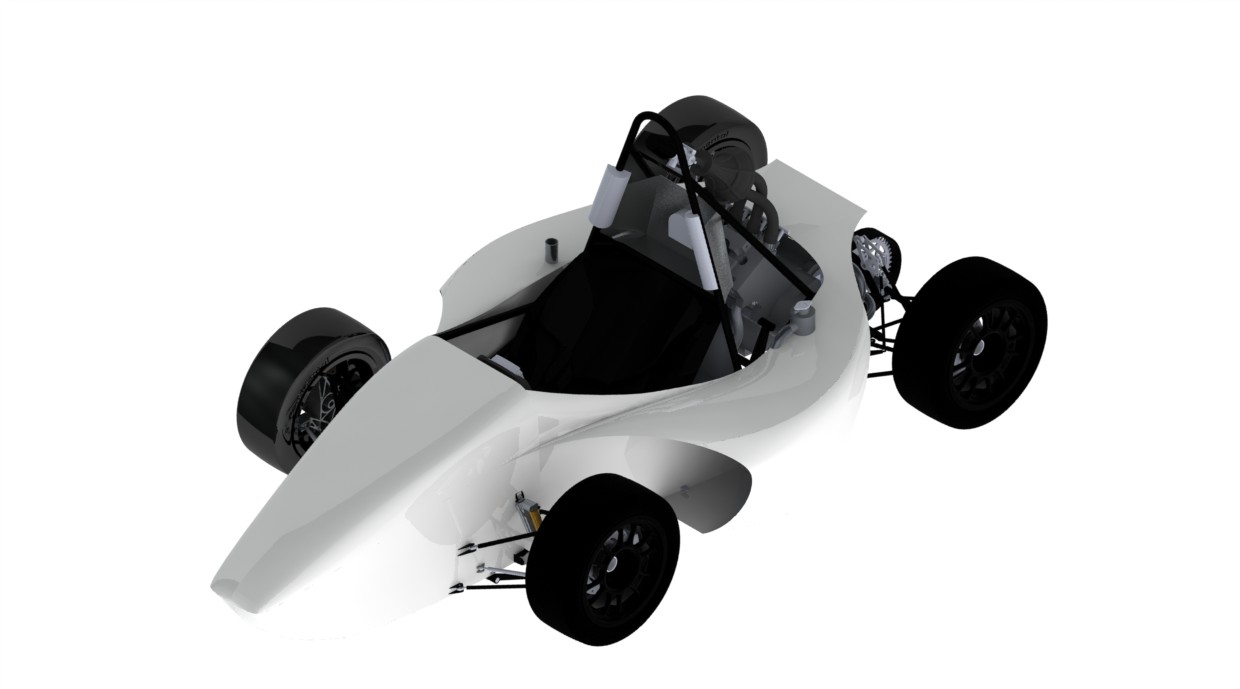

2012
Info
3x
In 2006, a bunch of amateur yet ambitious engineering students from K. J. Somaiya College of Engineering, looking to break the shackles of an orthodox education system rolled up their sleeves and took to the workshop with passion in their hearts, tools in their hands and a battered auto rickshaw engine. Six years down the line, team Orion Racing India has grown significantly in size, improved its organization & structure and gained a lot of experience through international exposure. This year the project timeline was revised in order to reduce the time spent on design & manufacturing and increase the time spent on vehicle testing. The increased focus on testing is aimed at ensuring reliability and improving performance. The ORI-12 boasts several new features such as an indigenously designed PU foam steering wheel, a paddle shifter and a pull-rod actuated front suspension system. The team is excited to be back at FSG and looks forward to an exciting and successful run this year.
Car Specifications
General
| Frame Construction | Tubular Spaceframe |
|---|---|
| Material | ASTM A179 and DIN 2391 st 52 |
| Overall L | 2800 mm |
| Overall W | 1417 mm |
| Overall H | 1162 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1220 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 141 kg |
| Weight with 68kg driver (Rr) | 172 kg |
| Suspension | Double unequal length A-arm. Pull rod(front) and push rod(rear) actuated spring and damper system. |
| Tyres (Fr / Rr) | 205x510 R13 ,Continental / 21.0x6.5 - 13, Hoosier |
| Wheels (Fr / Rr) | 7x13, 22mm offset, 1 pc Al Rim |
| Drive Type | Chain Drive |
| Differential | Drexler clutch pack Limited Slip differential |
| Cooling | Chassis mounted, side pod enclosed single radiator with electric waterpump and fan |
| Brake System | 4-disk system, 4-piston Wilwood calipers and AP Racing spherical bearing mounted master cylinders |
| Electronics | Self designed data logger and telemetry system, Paddle-shifting, MoTeC M400 ECU |
Powertrain
| Engine | Honda CBR 600 F4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | Electronic Fuel Injection, sequential, controlled with MoTeC M400 ECU |
| Fuel | 98 Octane Gasoline |
| Max Power Design | 12000 rpm |
| Max Torque Design | 8500 rpm |

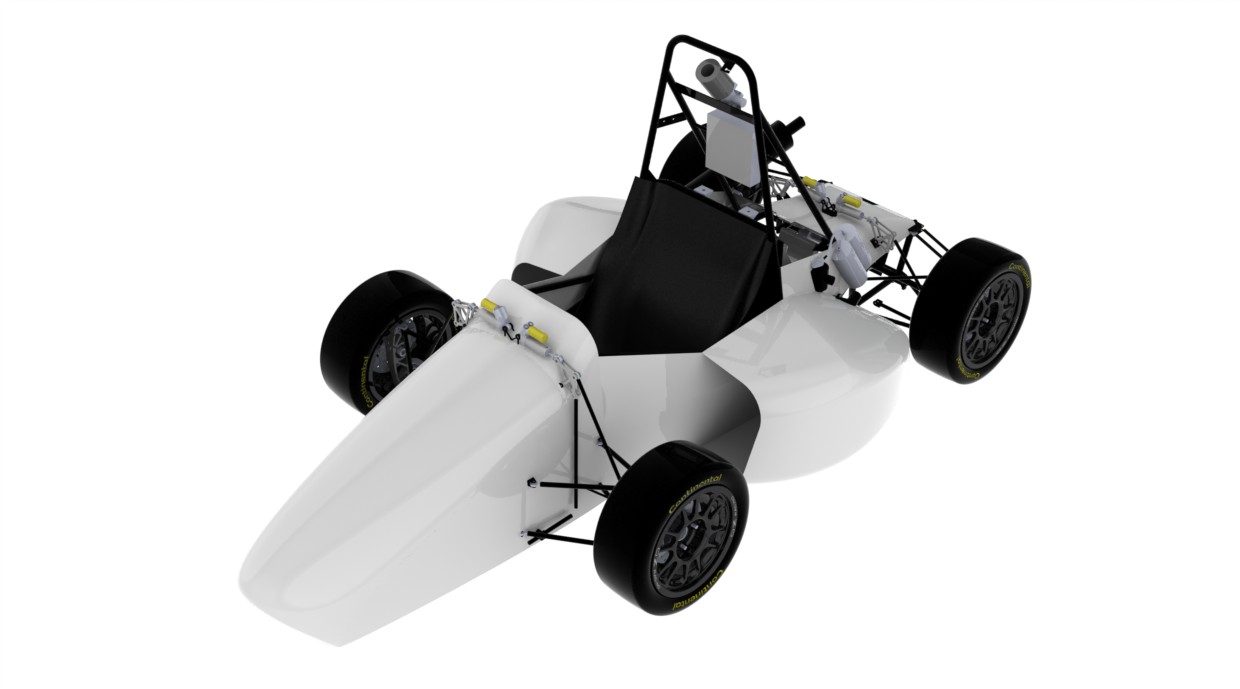

2011
Info
1x
ORI 11 known as the Aeton is the most ergonomically designed Indian Formula Student car. Equipped with latest technologies like Electronic shifter, Carbon Fibre Impact Attenuator and SLS Machined Air Box, the car is very stable, light weight, fast, reliable and safe. Extensive usage of Aluminium and Carbon Fibre has brought down the weight lower and also makes the car a very comfortable ride. Once you get in, you dont wanna get out! A 600cc Honda CBR engine drives the car generating a peak power of 77bhp. A Carbon Fibre steering wheel sandwiched with Aluminium is also one of the technical highlights! With all these features packed, the Aeton is only going to revolutionize Formula Student storming in as one of India's best contenders for the event!
Car Specifications
General
| Frame Construction | Steel Spaceframe |
|---|---|
| Material | Mild Steel Pipes, 1 |
| Overall L | 2090 mm |
| Overall W | 1565 mm |
| Overall H | 1320 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1340 mm |
| Track (Rr) | 1250 mm |
| Weight with 68kg driver (Fr) | 130 kg |
| Weight with 68kg driver (Rr) | 170 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper (coil-over). |
| Tyres (Fr / Rr) | Continental 205/510 R13 / Continental 205/510 R13 |
| Wheels (Fr / Rr) | 7x13, 20mm offset Al Rim / 7x13, 20mm offset Al Rim |
| Drive Type | Chain Drive RK 520GXW |
| Differential | Clutch pack limited slip, 35Nm preload, 2.333:1 bias ratio |
| Cooling | Single Radiator with Smart Controller, Craig Davies Thermatic Fan 8", 12V 75LPM |
| Brake System | 4-Disk system, rotors with 220mm(FR) and 218mm(RR) diameter, adjustable brake balance |
| Electronics | LCD System, Shift Lights, GPS Assisted Data Logger into USB, Voice Telemetry, Electric Shifting |
Powertrain
| Engine | Honda CBR600 F4i |
|---|---|
| Bore | 67.0 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12.5:1 : 1 |
| Fuel System | Stock Fuel Rail, fuel Injection, sequential |
| Fuel | 98 Octane Unleaded Gasoline |
| Max Power Design | 10000 rpm |
| Max Torque Design | 8000 rpm |

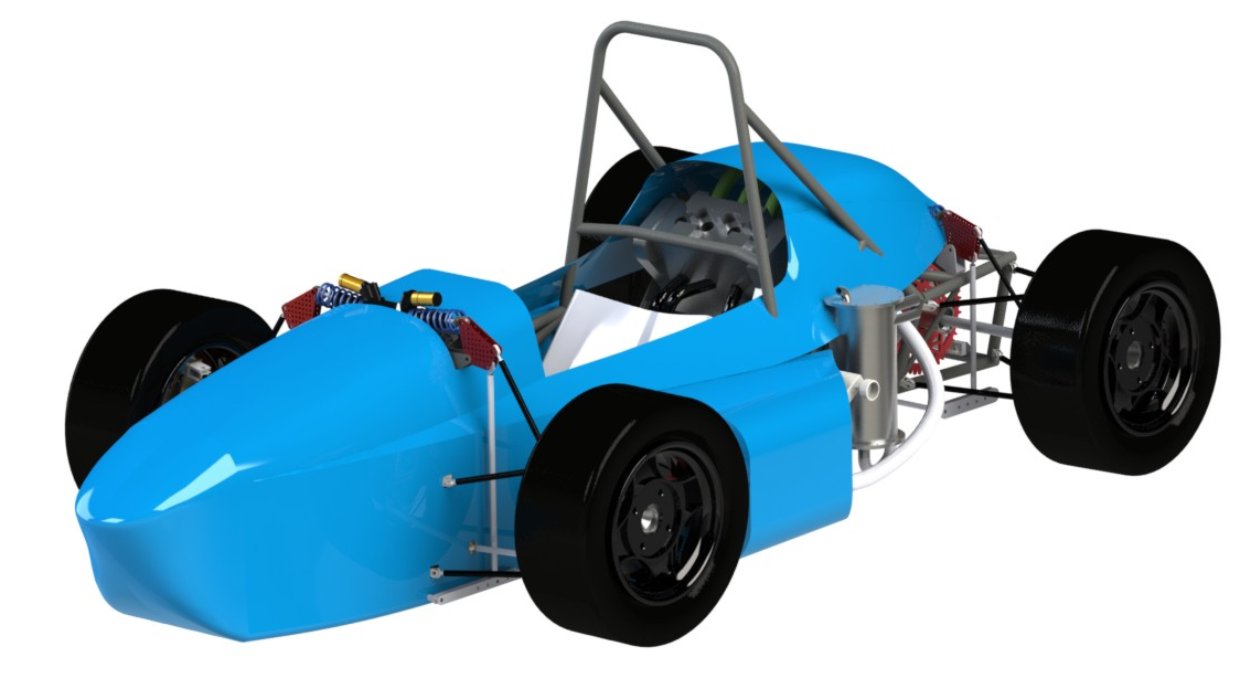

2010
Info
3x
Orion Racing India is an experienced team with three previous appearances at Formula Student Germany. Our latest car, ORI10 is a result of our effort of meticulously analyzing our strengths and weaknesses. With this car our team reaches a whole new level of technical competence. It is the next cog in our master plan of first completing the competition and then moving onto techincal excellence. It features a few firsts for our team, viz. Slick tires, Carbon Fibre body work and After Market Programmable ECU. It is a completely new design with no parts being carried over from ORI2009. Also, we carry forward our self-developed electronics legacy with a Colour LCD screen on the steering wheel, a self developed data acquisition system with a GPS module electronically adjustable brake bias, telemetry and CAN.At FSG 2010 we aim to radically improve our ranking and then move steadily up the rankings in the future years.
Car Specifications
General
| Frame Construction | Tubular space frame and Alternative tubing |
|---|---|
| Material | AISI1020 steel round tubing 25.4 mm OD , variable thickness |
| Overall L | 2630 mm |
| Overall W | 1500 mm |
| Overall H | 980 mm |
| Wheelbase | 1580 mm |
| Track (Fr) | 1300 mm |
| Track (Rr) | 1250 mm |
| Weight with 68kg driver (Fr) | 139 kg |
| Weight with 68kg driver (Rr) | 171 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper (coil-over). |
| Tyres (Fr / Rr) | 205/510 R 13, Continental Tire / 205/510 R 13, Continental Tire |
| Wheels (Fr / Rr) | 7x13, +25mm offset, 3 pc Mag Rim, Keizer / 7x13, +25mm offset, 3 pc Mag Rim, Keizer |
| Drive Type | Chain |
| Differential | Drexler Limited Slip Differential, Max Torque: 1200nm, Preload:45nm. Mounted on adjustable mechanism |
| Cooling | Single Radiator with Electric water pump and fan controlled by microcontroller |
| Brake System | 4-Disk System, adjustable balance, rotors with 240mm dia., wilwood fixed calipers ( 2piston) |
| Electronics | Self developed DAQ module+GPS,MMC datalogging,colour LCD,Electrical gear shifting,CAN bus,telemetry |
Powertrain
| Engine | 2001 Honda CBR 600 F4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 600 ccm |
| Compression Ratio | 12.01 : 1 |
| Fuel System | Stock Single Stage Electronic Fuel Injection |
| Fuel | 95 Octane ( Shell Optimax ) |
| Max Power Design | 11000 rpm |
| Max Torque Design | 10000 rpm |

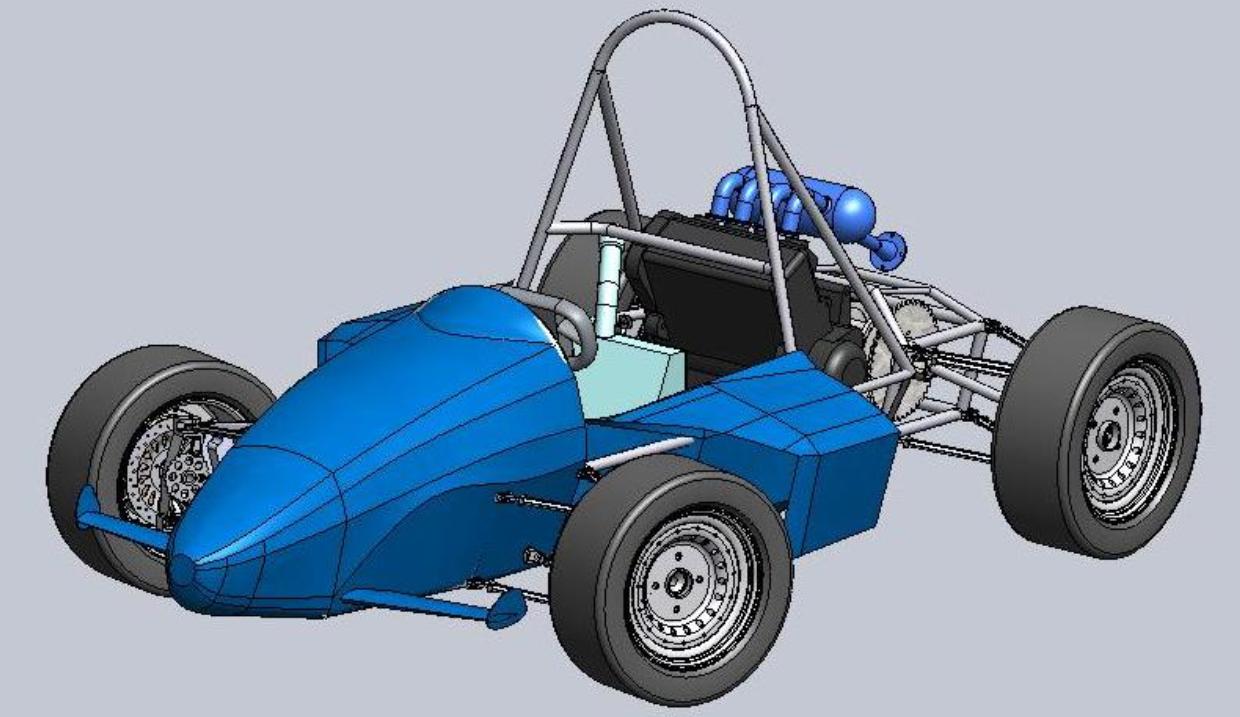

2009
Info
Orion Racing India is participating in FSG for the the thrid consecutive year holding the prestigious Indian tag. Our latest creation, “The Titan”, is geared up to race through the tarmac setting newer standards of innovation and creativity. Built with passion, the Titan is an eclectic fusion of power, maneuverability and robustness. The Titan is developed with a unique design philosophy that focuses on designing the car as a product for the market. Displaying the stupendous effort and passion of budding engineers, the car is designed to suit various driving conditions. Composed of several sensors, the team has the car in par with the electronics of the world. The Titan also boasts of a self-developed CAN module and live telemetry. The team has used CAD approach to build the car on the computer to help understand the dynamics and packaging of the car for optimum results. With all this incorporated, Orion Racing and The Titan are sure to redefine the image of an Indian Race car.
Car Specifications
General
| Frame Construction | Tubular space frame and Alternative tubing |
|---|---|
| Material | ASTM A108 steel round tubing 25.4mm OD and 2mm & 2.65mm wall thickness |
| Overall L | 2450 mm |
| Overall W | 1550 mm |
| Overall H | 1200 mm |
| Wheelbase | 1650 mm |
| Track (Fr) | 1350 mm |
| Track (Rr) | 1250 mm |
| Weight with 68kg driver (Fr) | 144 kg |
| Weight with 68kg driver (Rr) | 216 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated horizontally oriented spring and damper. Adjustable in compression and in rebound range |
| Tyres (Fr / Rr) | 180x60 R13, Ultima XT Tubeless, JK Tyre |
| Wheels (Fr / Rr) | 7x13, +25mm offset, 3 pc Mag Rim |
| Drive Type | DID 525 HV pitch 15.875mm Chain drive |
| Differential | Zexel Torsen Limited Slip differential TBR: 4:1 |
| Cooling | Twin Parallel Radiators mounted in side pod with electric water pump and smart controller |
| Brake System | 4-Disk System, Cast iron,Hub mounted rotors with 240mm dia, 2 piston floating calipers with piston diameter 25.4 mm |
| Electronics | Self-developed CAN Module, Electro-Mechanical Shifter, Buitton actuated (On Steering Wheel), LED shift indicator, |
Powertrain
| Engine | 2001 Honda CBR 600 F4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | Stock Fuel Rail, Injectors. Batch Injection |
| Fuel | Octane 95 Unleaded Gasoline |
| Max Power Design | 12500 rpm |
| Max Torque Design | 10500 rpm |

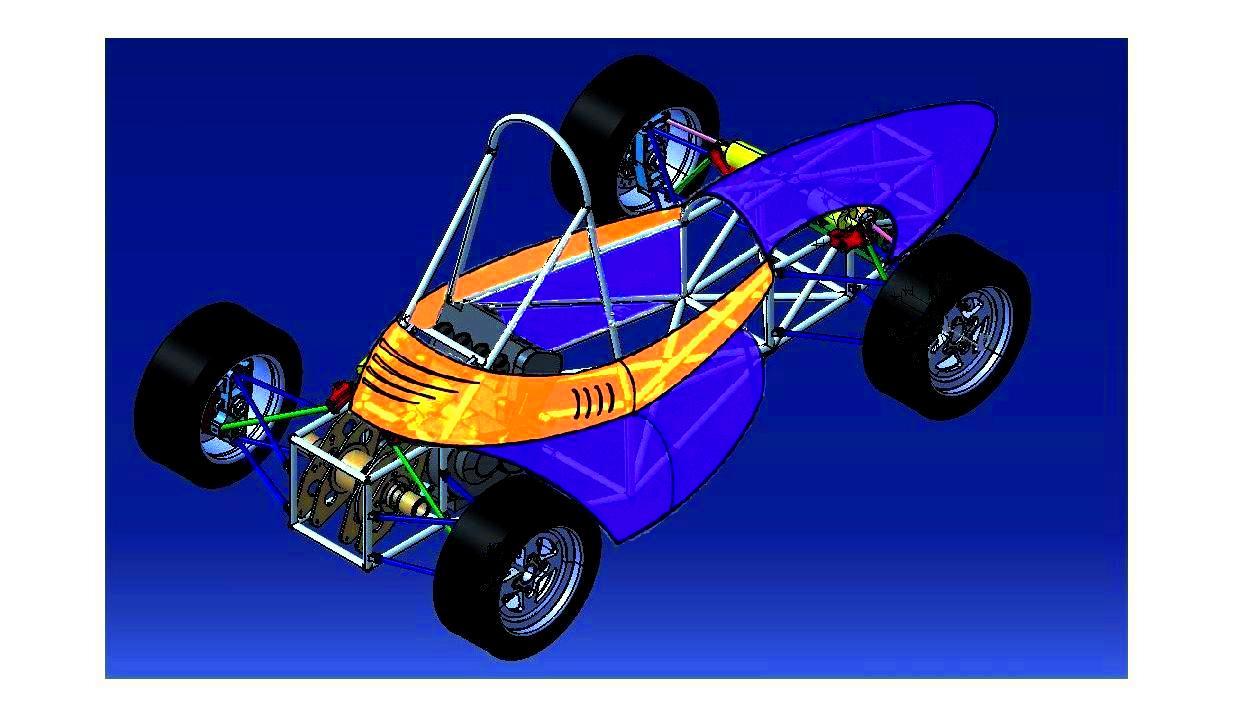

2008
Info
17x
We have a dream, to take India to the podium of International Student Formula Racing. After the calm & prudent introduction in 2007, we wish to make a loud comeback in 2008. Inspire, Innovate & Integrate are principles that bind the soul of Orion Racing India. Breaking barriers of class-room teaching, FSG has given us a taste of the real world. Juggling classes by day & project by night, we’ve extracted the maximum from limited resources. After analysis & iterations, we’ve designed mechanical systems based on simplicity, economy & ergonomics. Supported by companies like Honda, we’ve made relentless efforts to make this year’s car a reliable, light & responsive racer. We have incorporated novel designs while sticking to basic engineering principles, including in-house advanced electronic systems like Paddle Shifting & Data Acquisition.Integrating the best & eliminating the worst of 2007, we represent a stronger, more confident team, ready to forge our mark on the race track!
Car Specifications
General
| Frame Construction | Tubular Space Frame |
|---|---|
| Material | AISI1020 steel round tubing 25.4 mm OD (2.65mm/1.8mmThickness) |
| Overall L | 2350 mm |
| Overall W | 1450 mm |
| Overall H | 1125 mm |
| Wheelbase | 1700 mm |
| Track (Fr) | 1250 mm |
| Track (Rr) | 1200 mm |
| Weight with 68kg driver (Fr) | 120 kg |
| Weight with 68kg driver (Rr) | 180 kg |
| Suspension | Double unequal length A-Arm. Push rod actuated vertically oriented spring and damper |
| Tyres (Fr / Rr) | 180x60 R13, Ultima XT Tubeless, JK Tyre |
| Wheels (Fr / Rr) | 7x13, +25mm offset, 3 pc Mag Rim |
| Drive Type | DID 525 HV pitch 15.875mm Chain drive |
| Differential | Zexel Torsen Limited Slip differential TBR: 4:1 |
| Cooling | Twin side pod mounted radiators with electric fans |
| Brake System | 4-Disc System,self developed rotors with 230mm.dia,adjustable brake balance,front 4 piston fixed,rear 2 piston floating calipers |
| Electronics | LCD display on steering wheel,Solenoid actuated Paddle Shifting of Gears,In-house Data Acquisition system. |
Powertrain
| Engine | 2001 Honda CBR 600 F4i |
|---|---|
| Bore | 67 mm |
| Stroke | 42.5 mm |
| Cylinders | 4 |
| Displacement | 599 ccm |
| Compression Ratio | 12:1 : 1 |
| Fuel System | Stock Fuel Rail, Injectors. Batch Injection |
| Fuel | Octane 95 Unleaded Gasoline |
| Max Power Design | 12500 rpm |
| Max Torque Design | 10500 rpm |
2007
Info
1xNo media information available for this year.
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2018.07 | 28 |
21. |
5. |
7. |
12. |
25. |
- |
24. |
- |
21. |
- |
- |
0.00 |
335.43 |
|
| 2018.01 | 54 |
1. |
4. |
6. |
2. |
5. |
- |
3. |
- |
3. |
1. |
4. |
0.00 |
834.15 |
|
| 2017.08 | 64 |
47. |
58. |
3. |
44. |
40. |
- |
39. |
- |
48. |
- |
- |
0.00 |
265.81 |
|
| 2017.07 | 43 |
23. |
20. |
19. |
29. |
13. |
- |
19. |
- |
27. |
23. |
- |
0.00 |
299.34 |
|
| 2016.08 | 73 |
40. |
24. |
1. |
20. |
27. |
- |
52. |
- |
51. |
- |
- |
0.00 |
303.67 |
|
| 2014.08 | 74 |
56. |
27. |
62. |
27. |
47. |
- |
- |
- |
- |
- |
- |
0.00 |
211.70 |
|
| 2013.08 | 74 |
54. |
9. |
45. |
41. |
37. |
- |
61. |
- |
52. |
- |
- |
0.00 |
255.90 |
|
| 2012.08 | 76 |
44. |
16. |
47. |
63. |
45. |
- |
35. |
- |
57. |
39. |
41. |
0.00 |
327.84 |
|
| 2011.08 | 74 |
63. |
12. |
63. |
66. |
57. |
- |
56. |
- |
43. |
- |
- |
0.00 |
152.92 |
|
| 2010.08 | 75 |
63. |
41. |
3. |
47. |
- |
- |
- |
- |
- |
- |
- |
-10.00 |
187.28 |
|
| 2009.08 | 77 |
69. |
52. |
65. |
60. |
- |
- |
60. |
- |
58. |
- |
- |
0.00 |
147.89 |
|
| 2008.08 | 77 |
66. |
29. |
50. |
63. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
176.93 |
|
| 2007.08 | 53 |
50. |
49. |
31. |
52. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
115.79 |
|
| x 13 | |||||||||||||||
