Team Details
Malaga Racing Team
| University | University of Malaga
ES Málaga UMA short 1196 |
|---|---|
| Location | Málaga, Spain |
| Homepage | https://www.mart.uma.es/ |
| Social Media |
|
| EV Team | Málaga Racing Team |
| Short Link | tid.fsg.one/1028 |
Event Profile
Past Events
2023
Info
Málaga Racing Team (MART), a young team but with more desire than any other. From southern Europe, struggling to compete with the best teams in the world. We have competed on 3 opportunities, FSS21, FSN22 and FSS22. Focusing on the reliability of the car, we have managed to finish the 3 Endurance events, highlighting the 2 podiums places last season. We face this season with more motivation, looking to improve the performance of our car and continue to grow as a team. See you on the track!
Engineering Design Priorities:
Manufacturing
Discipline
Engineering
Racing
Team
Performance

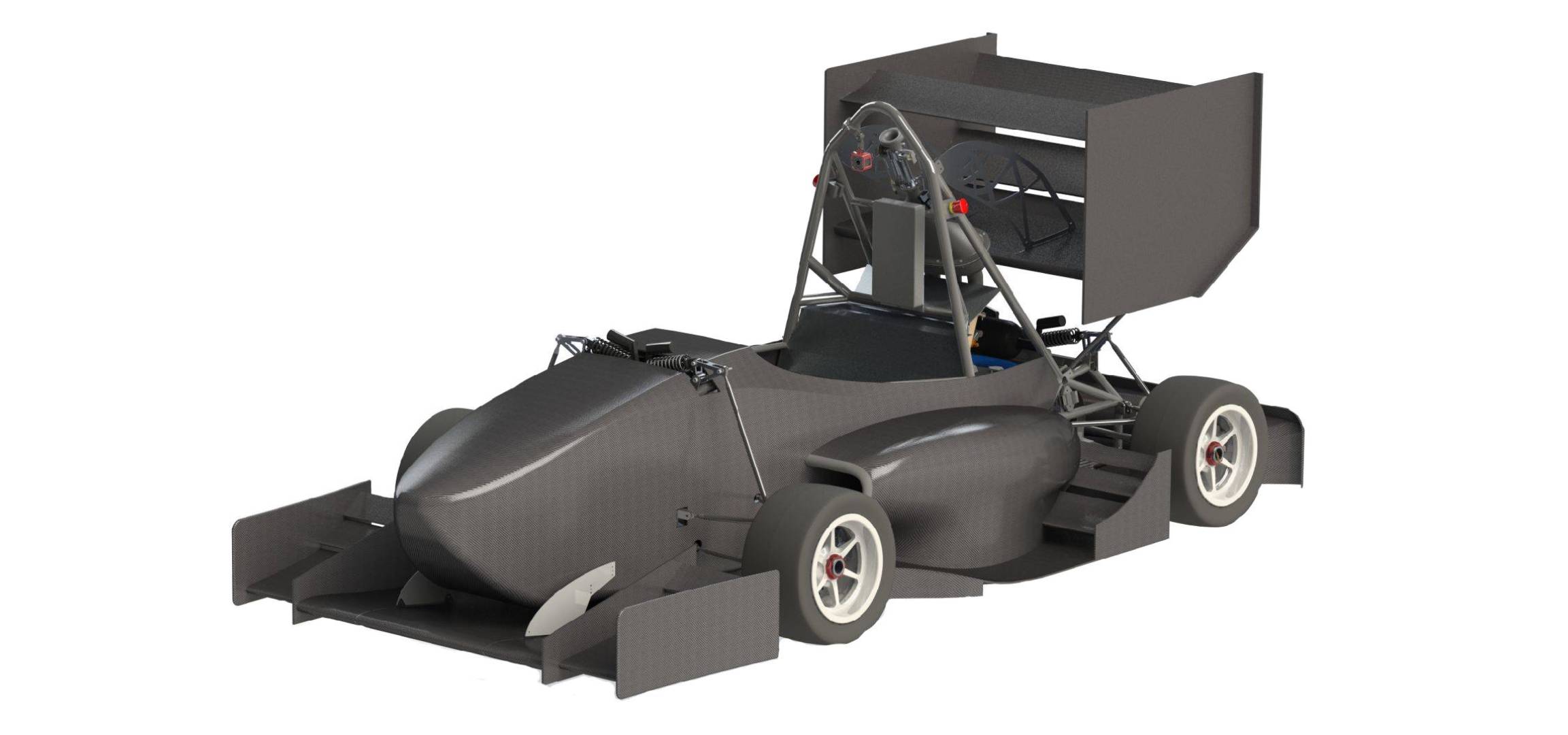

Car Specifications
General
| Frame Construction | Tubular space frame |
|---|---|
| Material | E355 Steel |
| Overall Length (mm) | 2914 |
| Overall Width (mm) | 1328 |
| Overall Height (mm) | 1189 |
| Wheelbase (mm) | 1618 |
| Track Front (mm) | 1227 |
| Track Rear (mm) | 1224 |
| Weight Front (kg) | 143 |
| Weight Rear (kg) | 157 |
| Suspension | Double chromoly steel A-Arm. Pushrod actuated spring and damper through crankbells |
| Tyres | 16 x 7.5-10, Hoosier LC0 |
| Wheels | 7x10, 22 mm offset, OZ Magnesium |
| Drive Type | 520 Drive chain |
| Differential | LSD Drexer v3 |
| Cooling | Twin side pod mounted radiators. parallel system. Swirlpot, pwm waterpump. |
| Brake System | Brembo rotors. WILWOOD calipers. 2 piston front and rear. |
| Electronics | Sealed wiring harness. Electropneumatic Shifting System. Datalogger |
Powertrain
| Engine | Honda CBR600RR (PC40) |
|---|---|
| Bore (mm) | 67.0 |
| Stroke (mm) | 42.5 |
| Cylinders | 4 |
| Displacement (ccm) | 599 |
| Compression Ratio | 12,5:1 |
| Fuel System | OEM fuel rail. BOSCH fuel pump. Link G4+ |
| Fuel | 98 octane unleaded gasoline |
| Max Power (kW) | 10000 |
| Max Torque (Nm) | 8600 |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | SP | DV SP | AC | DV AC | AX | EN | EF | Pe | Total |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2024.07 | 20 |
16. |
13. |
19. |
15. |
- |
- |
- |
- |
9. |
- |
- |
0.00 |
164.10 |
|
| 2023.08 | 27 |
12. |
16. |
20. |
9. |
15. |
- |
11. |
- |
15. |
10. |
- |
0.00 |
289.14 |
|
| 2023.08 | 10 |
2. |
8. |
7. |
3. |
8. |
- |
3. |
- |
6. |
2. |
- |
0.00 |
571.00 |
|
| 2022.09 | 15 |
5. |
1. |
12. |
10. |
11. |
- |
4. |
- |
8. |
3. |
3. |
0.00 |
492.20 |
|
| 2022.07 | 14 |
6. |
9. |
13. |
8. |
- |
- |
3. |
- |
- |
3. |
- |
-20.00 |
187.84 |
|
| 2021.08 | 17 |
14. |
13. |
14. |
14. |
- |
- |
- |
- |
- |
10. |
- |
0.00 |
176.50 |
|
| 2019.08 | 28 |
24. |
14. |
24. |
26. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
102.50 |
|
| 2018.08 | 37 |
35. |
33. |
- |
37. |
- |
- |
- |
- |
- |
- |
- |
0.00 |
37.00 |
|
| x 8 | |||||||||||||||
