Team Details
As of 2022, this class has been integrated into the other two classes.
Fast Forest Ghostdriver
| University | Deggendorf Institute of Technology
DE Deggendorf IT short 170 |
 |
|---|---|---|
| Location | Deggendorf, Germany | |
| Homepage | https://www.fast-forest.de/ | |
| Social Media |

|
|
| CV Team | Fast Forest | |
| EV Team | Fast Forest | |
| Short Link | tid.fsg.one/776 | |
Event Profile
Past Events

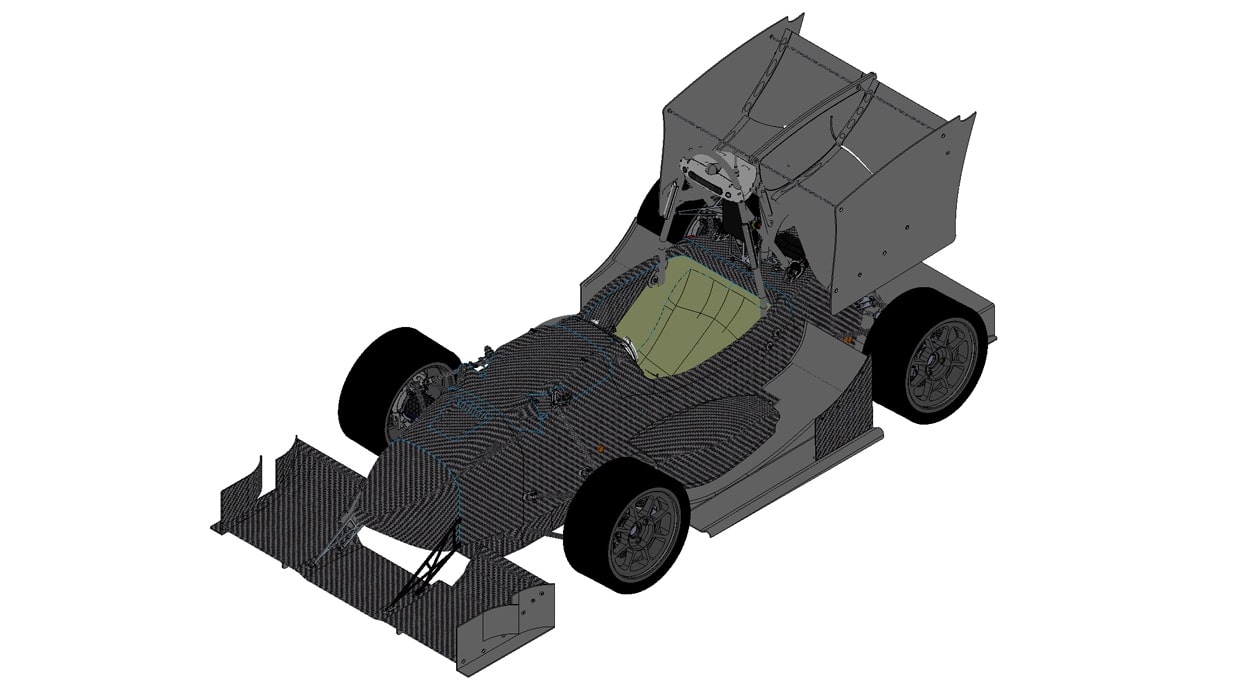

2021
Info
Fast Forest is the Formula Student team of the Deggendorf Institute of Technology, founded in 2008. Starting with the past season, the team agreed on building a DV and EV car in one. Therefore, we are facing the DV challenge at FS Germany for the first time with our Jenny 12GDX. New innovations make our lovingly called GhostDriver (GD) more reliable on the track without affecting the driver during EV competition. At this point we would like to thank our sponsors for supporting us.
Engineering Design Priorities:
Driverless
Speed
Weight
Maintainability
Downforce
Recuperation
Car Specifications
General
| Frame Construction | CFRP monocoque, aluminium front hoop, steel main hoop and braces |
|---|---|
| Material | CFRP, aluminium honycomb core, rohacell foam |
| Overall Length (mm) | 2913 |
| Overall Width (mm) | 1347 |
| Overall Height (mm) | 1110 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1194 |
| Track Rear (mm) | 1210 |
| Weight Front (kg) | 96 |
| Weight Rear (kg) | 99 |
| Suspension | Double A-arm Wishbones; Push Rod |
| Tyres | Continental 205/470 13 |
| Wheels | 7 |
| Drive Type | planetary gearbox |
| Differential | electrical torque-vectoring |
| Cooling | two radiators in the twin side-pods |
| Brake System | 4-Disk system, self developed rotors with 204mm diameter, adjustable brake balance |
| Electronics | wiring harness sealed (IP67), selfdesigned ECUs, selfdesigned BMS with fiber communication |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | 4x wheelbase |
| Max Motor Power | 12,3kW at 1200 RPM |
| Motor Type | AMK DYNASYN Synchron |
| Max Motor RPM | 20000 |
| Motor Controller | AMKASYN Wechselrichter KW26 |
| Max System Voltage (V) | 600V |
| Electrode Materials | LICoO2 |
| Accumulator Capacity | 7,032kWh |
| Transmission Ratio Primary | 14:1 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | NVIDIA Jetson AGX Xavier |
|---|---|
| Processing Units FLOPS | 11000 |
| Processing Units Power (W) | 30 |
| Cameras | 1, 20m 96°, ZED 2 stereo camera |
| Radar Sensors | n/a |
| LiDAR Sensors | n/a |
| Other Sensors | Xsens MTI-670 |
| DV System Highlights | all driverless parts are designed removable, Driverless parts below the fornt of the car, Aeordynamic packing of the cameras and the communication unit at the mainhoop |

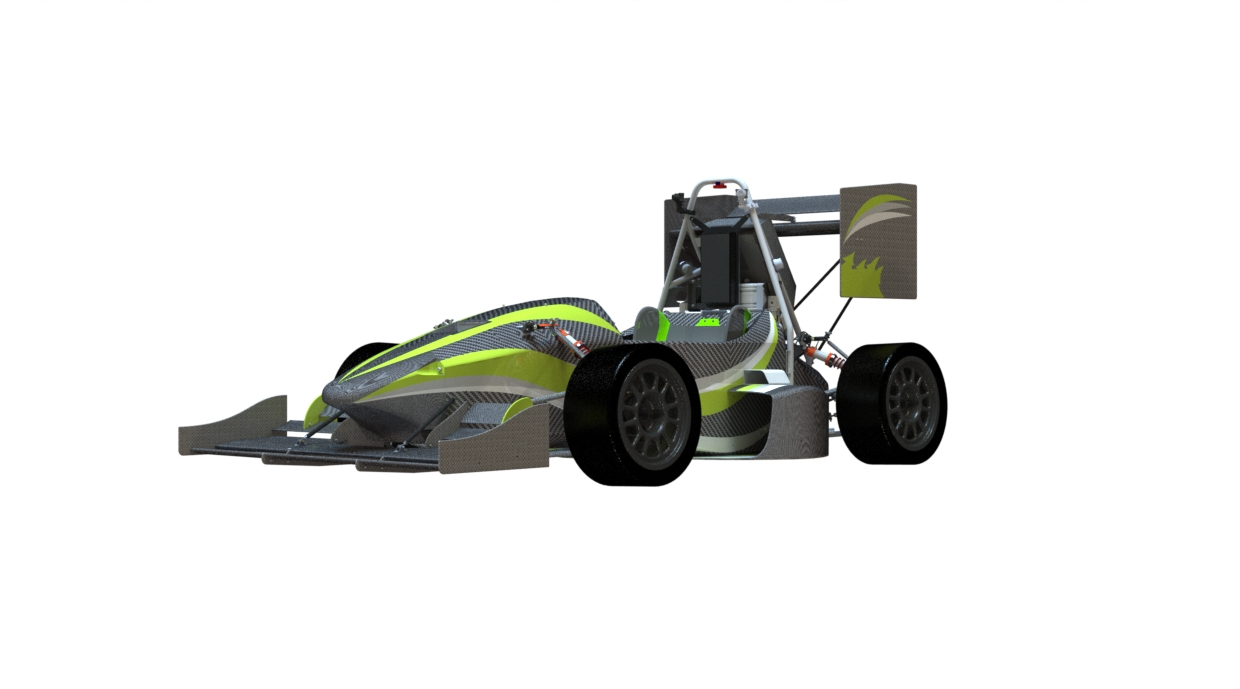

2017
Info
Fast Forest is the Formula Student Team of the Deggendorf Institute of Technology. Our autonomous car Jenny8GD was build upon our existing last year's electric formula student vehicle Jenny8X. The race track is sampled by mono cameras, capturing 180° in front of the car. Objects are detected by fast machine vision algorithms and passed to our lane estimation. Software modules are connected over our messaging middleware JennyNet. We thank all our Sponsors for their great support all season long.
Engineering Design Priorities:
fas update rate
fast brake actuation
acceleration of 1.1g
150N downforce at 50 km/h
Car Specifications
General
| Frame Construction | monocoque |
|---|---|
| Material | preimpregnated fibres with aluminum honey comb |
| Overall Length (mm) | 2850 |
| Overall Width (mm) | 1370 |
| Overall Height (mm) | 1130 |
| Wheelbase (mm) | 1540 |
| Track Front (mm) | 1194 |
| Track Rear (mm) | 1196 |
| Weight Front (kg) | 74 |
| Weight Rear (kg) | 171 |
| Suspension | double unequal length A-Arm. Directly linked spring and damper, ARB |
| Tyres | 205/470 R13 / 205/470 R13 |
| Wheels | 7x13, 30mm offset, 1 pc AlMg Rim |
| Drive Type | planetary gearbox |
| Differential | electrical torque-vectoring |
| Cooling | two radiators in the twin side-pods |
| Brake System | self developed rotors, adjustable brake balance, ISR front and self-developed rear caliper |
| Electronics | selfdesigned optical speed measuring unit |
Powertrain
| Number of Motors | 4 |
|---|---|
| Motor Location | in the wheel hubs |
| Max Motor Power | 32kW, 32kW, 32kW, 32kW |
| Motor Type | AMK DD5 |
| Max Motor RPM | 20000 |
| Motor Controller | Motor Controller Electronic MCE |
| Max System Voltage (V) | 588V |
| Electrode Materials | LiP |
| Accumulator Capacity | 7,25 kW |
| Transmission Ratio Primary | 1:14.5 |
| Transmission Ratio Secondary | n/a |
Driverless System
| Processing Units | DATALynx; BeagleBone |
|---|---|
| Processing Units FLOPS | 4134 |
| Processing Units Power (W) | 135 |
| Cameras | 2x Optitrack Slim 3U |
| Radar Sensors | n/a |
| LiDAR Sensors | n/a |
| Other Sensors | speed measuring unit |
| DV System Highlights | high-speed cameras with 120Hz own camera driver realtime performance analytics |
FS past achievements due to World Ranking Data Base
| Date | Event | Teams | Rank | BP | CM | ED | DV SP | DV AC | AX | EN | EF | Pe | Total | Engine |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2025.08 | 42 |
18. |
- |
- |
30. |
14. |
13. |
10. |
- |
- |
0.00 |
127.14 |
||
| 2025.08 | 24 |
19. |
- |
- |
19. |
6. |
- |
- |
4. |
- |
0.00 |
198.05 |
||
| 2024.08 | 12 |
8. |
- |
- |
8. |
- |
- |
- |
- |
- |
0.00 |
197.80 |
||
| 2023.08 | 30 |
28. |
- |
- |
29. |
9. |
- |
3. |
- |
- |
0.00 |
68.50 |
||
| 2023.08 | 9 |
1. |
- |
- |
2. |
3. |
4. |
3. |
1. |
1. |
0.00 |
649.31 |
||
| 2021.08 | 17 |
14. |
12. |
6. |
13. |
- |
- |
- |
- |
- |
-41.00 |
212.39 |
||
| 2017.08 | 15 |
8. |
8. |
11. |
10. |
- |
- |
- |
- |
- |
0.00 |
294.09 |
||
| x 7 | ||||||||||||||
